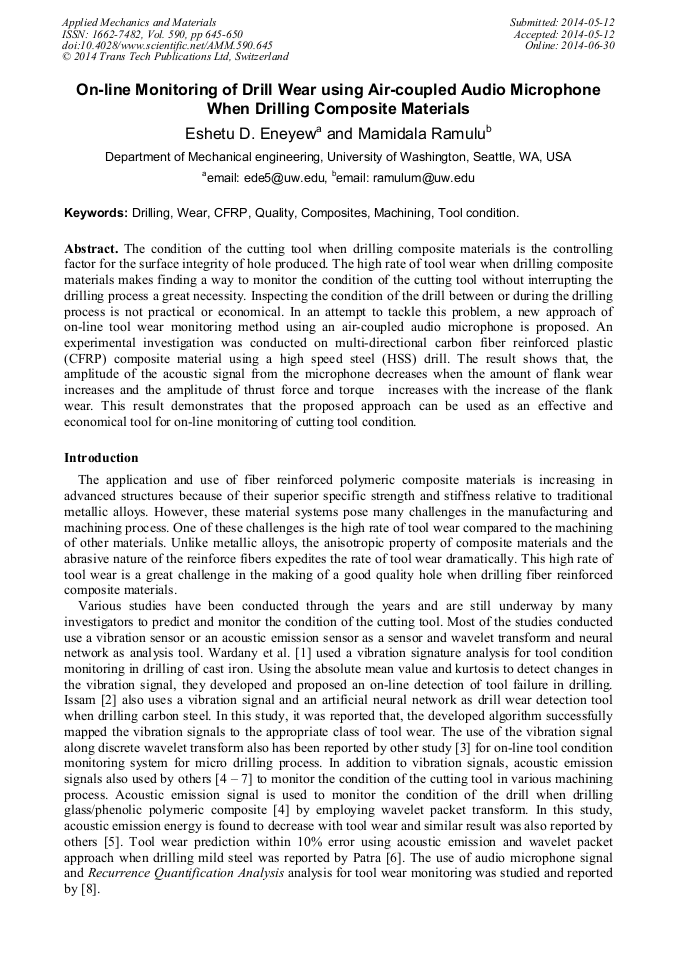

On-Line Monitoring of Drill Wear Using Air-Coupled Audio Microphone when Drilling Composite Materials

Abstract:

The condition of the cutting tool when drilling composite materials is the controlling factor for the surface integrity of hole produced. The high rate of tool wear when drilling composite materials makes finding a way to monitor the condition of the cutting tool without interrupting the drilling process a great necessity. Inspecting the condition of the drill between or during the drilling process is not practical or economical. In an attempt to tackle this problem, a new approach of on-line tool wear monitoring method using an air-coupled audio microphone is proposed. An experimental investigation was conducted on multi-directional carbon fiber reinforced plastic (CFRP) composite material using a high speed steel (HSS) drill. The result shows that, the amplitude of the acoustic signal from the microphone decreases when the amount of flank wear increases and the amplitude of thrust force and torque increases with the increase of the flank wear. This result demonstrates that the proposed approach can be used as an effective and economical tool for on-line monitoring of cutting tool condition.

• Periodical: Applied Mechanics and Materials (Volume 590)
• Pages: 645-650
• DOI: https://doi.org/10.4028/www.scientific.net/AMM.590.645
• Online since: June 2014
• Authors: Eshetu D. Eneyew*, Mamidala Ramulu
• Keywords: CFRP, Composite, Drilling, Machining, Quality, Tool Condition, Wear

References

[1] T. I. El-Wardany, D. Gao, and M. A. Elbestawi, Tool Condition Monitoring in drilling Using Vibration Signiture Analysis., International Journal of Machine Tools and Manufacture, Vol. 36, No. 6, 1996, p.687 – 711.

DOI: 10.1016/0890-6955(95)00058-5

[2] Issam Abu-Mahfouz, Drilling Wear Detection and Classification using Vibration Signals and Artefical Neural Network, International Journal of Machine Tools and Manufacture, Vol. 43, 2003, p.707 – 720.

DOI: 10.1016/s0890-6955(03)00023-3

[3] Qiao Sun, Ying Tang, Wei Yang Lu, and Yuan Ji, Feature Extraction with Discrete Wavelet Transform for Drill Wear Monitoring, , Journal of Vibration and Control, Vol. 11, No. 11, 2005, p.1375 – 1396.

DOI: 10.1177/1077546305058262

[4] A. Velayudham, R. Krishnamurthy, T. Soundarapandian, Acoustic Emission Based Drill Condition Monitoring during Drilling of Glass/Phenolic Polymeric Composite using Wavelet Packet Transform, Material science and Engineering A, Vol. 412, 2005, p.141.

DOI: 10.1016/j.msea.2005.08.036

[5] A. Chukwujekwu Okafor and Scott. R. Bridsong, Monitoring Drilling of Advanced Composites, Drill Wear and Exit Delamination using Wave – Based Acoustic emission, SPIE, Vol. 3589, 1999, pp.115-124.

DOI: 10.1117/12.339964

[6] Karali Patra, Acoustic Emission based Tool Condition Monitoring System in Drilling, Proceedings of the World Congress on Engineering, Vol. III, (2011).

[7] Ichiro Inasaki, Shuhei Aida, and Shinichiro Fukuora, Monitoring System for Cutting Tool Failure using and Acoustic Emission Sensor, JSME International Journal, Vol. 30, No. 261, 1987, p.523 – 528, (1987).

DOI: 10.1299/jsme1987.30.523

[8] Eshetu D. Eneyew and M. Ramulu, Tool Wear Monitoring Using Microphone Signals and Recurrence Quantification Analysis when Drilling Composites, Advanced Materials Research, Vol. 7, 2013, pp.239-244.

DOI: 10.4028/www.scientific.net/amr.711.239
