Synthesis of Barium Hexaferrite with Addition of Tapioca as Rodlike Template

Abstract:

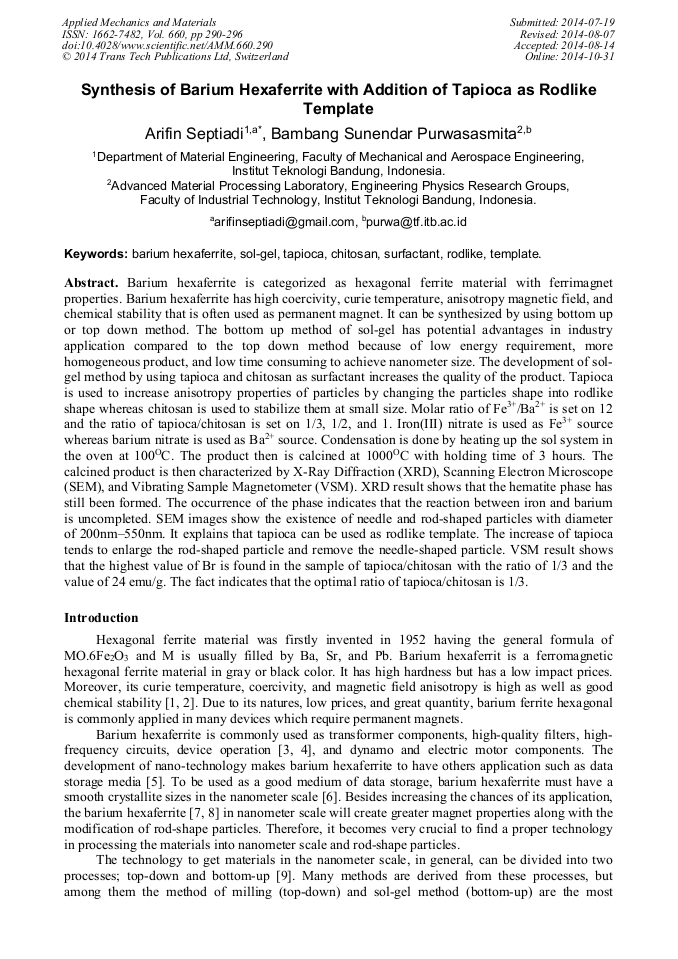

Barium hexaferrite is categorized as hexagonal ferrite material with ferrimagnet properties. Barium hexaferrite has high coercivity, curie temperature, anisotropy magnetic field, and chemical stability that is often used as permanent magnet. It can be synthesized by using bottom up or top down method. The bottom up method of sol-gel has potential advantages in industry application compared to the top down method because of low energy requirement, more homogeneous product, and low time consuming to achieve nanometer size. The development of sol-gel method by using tapioca and chitosan as surfactant increases the quality of the product. Tapioca is used to increase anisotropy properties of particles by changing the particles shape into rodlike shape whereas chitosan is used to stabilize them at small size. Molar ratio of Fe³⁺/Ba²⁺ is set on 12 and the ratio of tapioca/chitosan is set on 1/3, 1/2, and 1. Iron (III) nitrate is used as Fe³⁺ source whereas barium nitrate is used as Ba²⁺ source. Condensation is done by heating up the sol system in the oven at 100^OC. The product then is calcined at 1000^OC with holding time of 3 hours. The calcined product is then characterized by X-Ray Diffraction (XRD), Scanning Electron Microscope (SEM), and Vibrating Sample Magnetometer (VSM). XRD result shows that the hematite phase has still been formed. The occurrence of the phase indicates that the reaction between iron and barium is uncompleted. SEM images show the existence of needle and rod-shaped particles with diameter of 200nm–550nm. It explains that tapioca can be used as rodlike template. The increase of tapioca tends to enlarge the rod-shaped particle and remove the needle-shaped particle. VSM result shows that the highest value of Br is found in the sample of tapioca/chitosan with the ratio of 1/3 and the value of 24 emu/g. The fact indicates that the optimal ratio of tapioca/chitosan is 1/3.

• Periodical: Applied Mechanics and Materials (Volume 660)
• Pages: 290-296
• DOI: https://doi.org/10.4028/www.scientific.net/AMM.660.290
• Online since: October 2014
• Authors: Arifin Septiadi*, Bambang Sunendar Purwasasmita
• Keywords: Barium Hexaferrite, Chitosan, Rodlike, Sol-Gel, Surfactant, Tapioca, Template

References

[1] J. Ding, W.F. Miao, P.G. McCormick, and R. Street, High Coercivity Ferrite Magnets Prepared by Mechanical Alloying, Journal of Alloys and Compounds, 1998. 281: 32-36.

DOI: 10.1016/s0925-8388(98)00766-x

[2] A. Mali and A. Ataie, Structural Characterization of Nanocrystalline BaFe12019 Powder Synthesized by Sol-Gel Combustion Route, Scripta Materialia. 2005. 53: 1065-1075.

DOI: 10.1016/j.scriptamat.2005.06.037

[3] M.M. Rashad, et al, Efect of Fe/Ba Mol Ratio and Surface Active Agents on the Formation and Magnetic Properties of Co-presipitated Barium Hexaferrite, Journal of Alloy and Compounds, 2008. 453: 304-308.

DOI: 10.1016/j.jallcom.2006.11.080

[4] Q. Zhang, et al, Preparation of g-Fe2O3/Ni2O3/FeCl3 Composite Nano-particles by Hydrothermal Process Useful for Ferrofluids. Hindawi Publishing Corporation Smart Materials Research Volume 2011, Article ID 351072.

[5] M. Matsumoto, A. Morisako, and S. Takei, Characteristics of Ba–ferrite thin films for magnetic disk media application, Journal of Alloys and Compounds, 2001. 326: 215-220.

DOI: 10.1016/s0925-8388(01)01280-4

[6] P. Hernandez, et al, Influence of sintering atmosphere on the magnetic after-effect in strontium ferrites, Journal of Magnetism and Magnetic Materials, 1996. 157-158: 123-124.

DOI: 10.1016/0304-8853(95)01070-x

[7] J. Sort, J. Nogues, S. Surinach, J.S. Munoz, and M.D. Baro, Coercivity Enhancement in Ball-Milled and Heat-Treated Sr-Ferrite with Iron Sulphide, Journal of Metastable and Nanocrystalline Materials, 2003. 15-16: 599-606.

DOI: 10.4028/www.scientific.net/jmnm.15-16.599

[8] A. Johan, Ridwan, Mujamilah, and Ramlan, Magnetik Nanokristalin Barium Heksaferit (BaO·6Fe2O3) Hasil Proses Teknologi High-Energy Milling, Indonesian Journal of Materials Science, 2007. 120-125.

[9] G. Cao, Nanostructures & Nanomaterials: Synthesis, Properties & Application, University of Washington: Imperial College Press, (2003).
