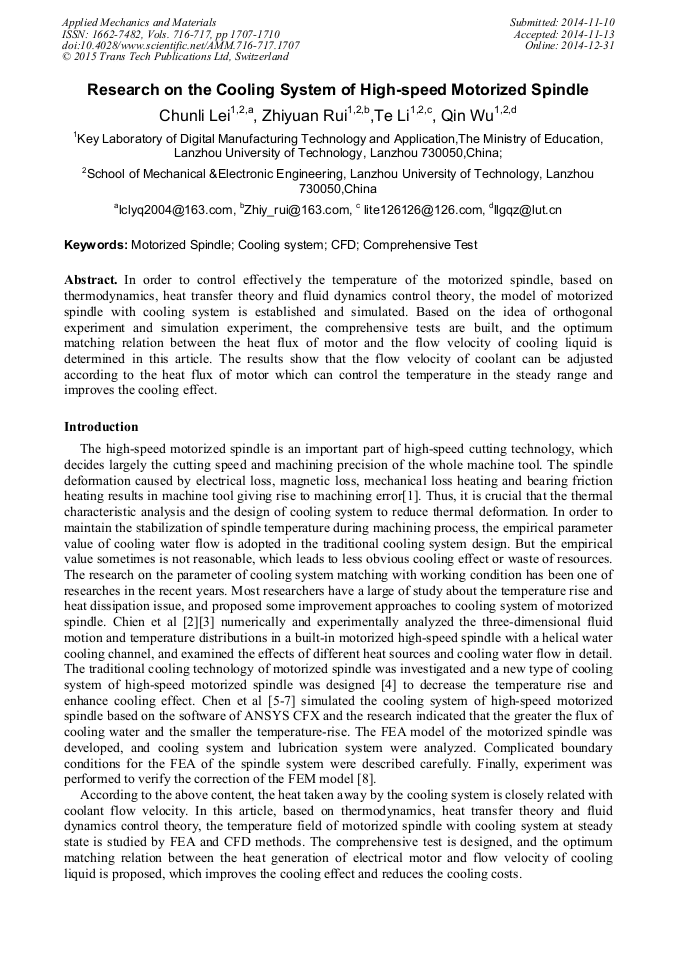

Research on the Cooling System of High-Speed Motorized Spindle

Abstract:

In order to control effectively the temperature of the motorized spindle, based on thermodynamics, heat transfer theory and fluid dynamics control theory, the model of motorized spindle with cooling system is established and simulated. Based on the idea of orthogonal experiment and simulation experiment, the comprehensive tests are built, and the optimum matching relation between the heat flux of motor and the flow velocity of cooling liquid is determined in this article. The results show that the flow velocity of coolant can be adjusted according to the heat flux of motor which can control the temperature in the steady range and improves the cooling effect.

• Periodical: Applied Mechanics and Materials (Volumes 716-717)
• Pages: 1707-1710
• DOI: https://doi.org/10.4028/www.scientific.net/AMM.716-717.1707
• Online since: December 2014
• Authors: Chun Li Lei*, Zhi Yuan Rui, Te Li, Qin Wu
• Keywords: CFD, Comprehensive Test, Cooling System, Motorized Spindle

References

[1] Fu Jianzhong, Chen Zichen. Research on modeling thermal dynamic errors of precision machine based on fuzzy logic and artificial neural net work [J]. Journal of Zhejiang University (Engineering Science), 2004, 38(6): 742-746.

[2] Chien C H, Jang J Y. 3-D numerical and experimental analysis of a built-in motorized high-speed spindle with helical water cooling channel. Applied Thermal Engineering [J]. 2008, 28: 2327-2336.

DOI: 10.1016/j.applthermaleng.2008.01.015

[3] Huang Cheng huang, Chen Wei chung. A Three-dimensional inverse forced convection problem in estimating surface heat flux by conjugate Gradient Method[J]. International Journal of Heat and Mass Transfer, 2000, 43(17): 3171-3181.

DOI: 10.1016/s0017-9310(99)00330-0

[4] Li Weiguang, Zhu Huomei, Liu Quanquan, et al. Innovative design of cooling system of high-speed motorized spindle [J]. Manufacturing Technology and Machine Tool, 2009(4): 36- 39.

[5] Chen Wenhua, He Qingchuan, He Qiang, et al. Simulation and experimental analysis for high- speed spindle with water-cooling system [J]. China Mechanical Engineering, 2010, 21(5): 550- 555.

[6] T.S. Wang, Y.S. Chen, Unified Navier-Stokes flow field and performance analysis of liquid rocket engines, AIAA Journal, 1993, 9: 678-685.

DOI: 10.2514/3.23675

[7] Yang Yu Ching, Chen Wen Lih. An iterative regularization method in simultaneously estimating the inlet temperature and heat- transfer rate in a forced-convection pipe[J]. International Journal of Heat and Mass Transfer, 2009, 52(7/8): 1928-(1937).

DOI: 10.1016/j.ijheatmasstransfer.2008.11.001

[8] Xiao Shuhong, Guo Jun, Zhang Zuolin. Finite element analysis on the thermo-mechanical coupling properties of motorized spindle [J]. Machinery Design and Manufacture, 2008, 9: 96- 98.
