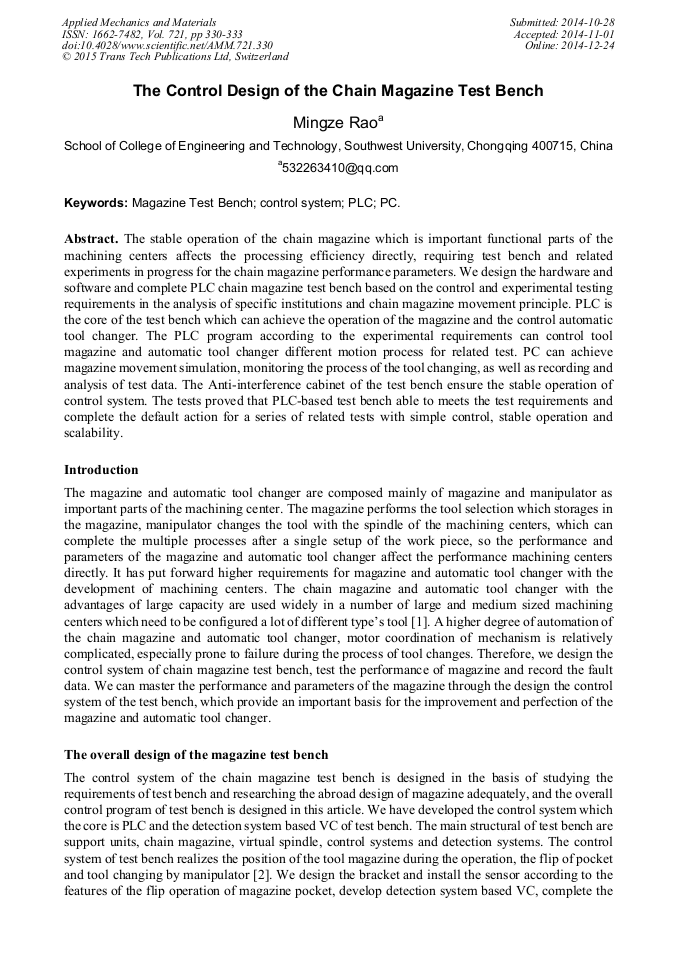

The Control Design of the Chain Magazine Test Bench

Abstract:

The stable operation of the chain magazine which is important functional parts of the machining centers affects the processing efficiency directly, requiring test bench and related experiments in progress for the chain magazine performance parameters. We design the hardware and software and complete PLC chain magazine test bench based on the control and experimental testing requirements in the analysis of specific institutions and chain magazine movement principle. PLC is the core of the test bench which can achieve the operation of the magazine and the control automatic tool changer. The PLC program according to the experimental requirements can control tool magazine and automatic tool changer different motion process for related test. PC can achieve magazine movement simulation, monitoring the process of the tool changing, as well as recording and analysis of test data. The Anti-interference cabinet of the test bench ensure the stable operation of control system. The tests proved that PLC-based test bench able to meets the test requirements and complete the default action for a series of related tests with simple control, stable operation and scalability.

• Periodical: Applied Mechanics and Materials (Volume 721)
• Pages: 330-333
• DOI: https://doi.org/10.4028/www.scientific.net/AMM.721.330
• Online since: December 2014
• Authors: Ming Ze Rao*
• Keywords: Control System, Magazine Test Bench, PC, PLC

References

[1] Li J M. Modular Machine Tool & Automatic Manufacturing Technique, 2012, (10), pp.103-105.

[2] Zhang Y M, Deng W P, Guan W, et al.: Modular Machine Tool & Automatic Manufacturing Technique, 2012, (9), pp.56-58.

[3] Tan G H: Mechanical Engineer, 2010, (7), pp.40-41.

[4] Huang J: Electrical control and programmable logic controller. Beijing: Mechanical Industry Press, 2004, p.195.

[5] Zhu Z H, Han J: Machinery Manufacturing, 2011, (9), pp.28-31.

[6] The User's Manual of Yaskawa AC servo drive Σ-V Series. Yaskawa Electric Co., Ltd., (2007).

[7] Guan W: The Research on the Detection and Control System of the Chain Magazine and Automatic Tool Changer, Beijing University of Technology, (2012).
