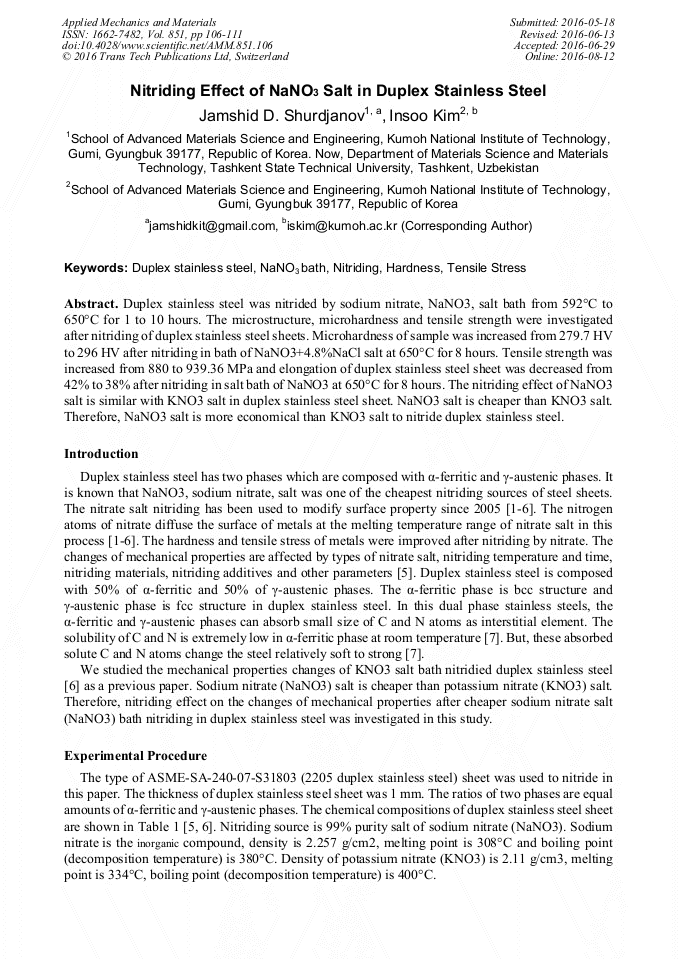

Nitriding Effect of NaNO₃ Salt in Duplex Stainless Steel

Abstract:

Duplex stainless steel was nitrided by sodium nitrate, NaNO₃, salt bath from 592°C to 650°C for 1 to 10 hours. The microstructure, microhardness and tensile strength were investigated after nitriding of duplex stainless steel sheets. Microhardness of sample was increased from 279.7 HV to 296 HV after nitriding in bath of NaNO₃+4.8%NaCl salt at 650°C for 8 hours. Tensile strength was increased from 880 to 939.36 MPa and elongation of duplex stainless steel sheet was decreased from 42% to 38% after nitriding in salt bath of NaNO₃ at 650°C for 8 hours. The nitriding effect of NaNO₃ salt is similar with KNO₃ salt in duplex stainless steel sheet. NaNO₃ salt is cheaper than KNO₃ salt. Therefore, NaNO₃ salt is more economical than KNO₃ salt to nitride duplex stainless steel.

• Periodical: Applied Mechanics and Materials (Volume 851)
• Pages: 106-111
• DOI: https://doi.org/10.4028/www.scientific.net/AMM.851.106
• Online since: August 2016
• Authors: Jamshid D. Shurdjanov, In Soo Kim*
• Keywords: Duplex Stainless Steel, Hardness, NaNO₃ Bath, Nitriding, Tensile Stress

References

[1] Y. Z. Shen, K. H. Oh, D. N. Lee, Nitriding of steel in potassium nitrate salt bath, Scripta Mat. 53(12) (2005) 1345-1349.

DOI: 10.1016/j.scriptamat.2005.08.032

[2] Y. Z. Shen, K. H. Oh, D. N. Lee, Nitriding of Interstitial Free Steel in Potassium-Nitrate Salt Bath, ISIJ Int. 46(1) (2006) 111-120.

DOI: 10.2355/isijinternational.46.111

[3] Y. Z. Shen, K. H. Oh, D. N. Lee, Nitrogen strengthening of interstitial-free steel by nitriding in potassium nitrate salt bath, J. Mat. Sci. Eng. A 434(1-2) (2010) 314-318.

DOI: 10.1016/j.msea.2006.06.127

[4] M. K. Lee, D. S. Kim, S. C. Kim, S. W. Han, I. Kim, D. N. Lee, Effect of NaCl and CaCl2 additives on NaNO3 bath nitriding steel, J. Mat. Sci. and Eng. A527(4-5) (2010) 1048-1051.

DOI: 10.1016/j.msea.2009.09.021

[5] J. D. Schurdjanov, Changes on Mechanical Properties of 2205 Duplex Stainless Steel Sheets by Nitrate Salt Bath Nitriding, Master thesis, Kumoh National Institute of Technology, Gumi, Republic of Korea, 2015, pp.1-66.

[6] J. D. Schurdjanov, I. Kim, Mechanical properties changes of KNO3 salt bath nitridied duplex stainless steel: will be published in Proc. of ICAEMM 2016 conference by World scientific publishing Co. (2016).

DOI: 10.1142/9789813146587_0046

[7] R. W. K. Honeycombe, H. K. D. H. Bhadeshia, Steels Microstructure and Properties, third ed., Butterworth-Heinemann, Oxford, UK, 2006, pp.1-16.
