MID Fabricated by Ultrasonic Processing

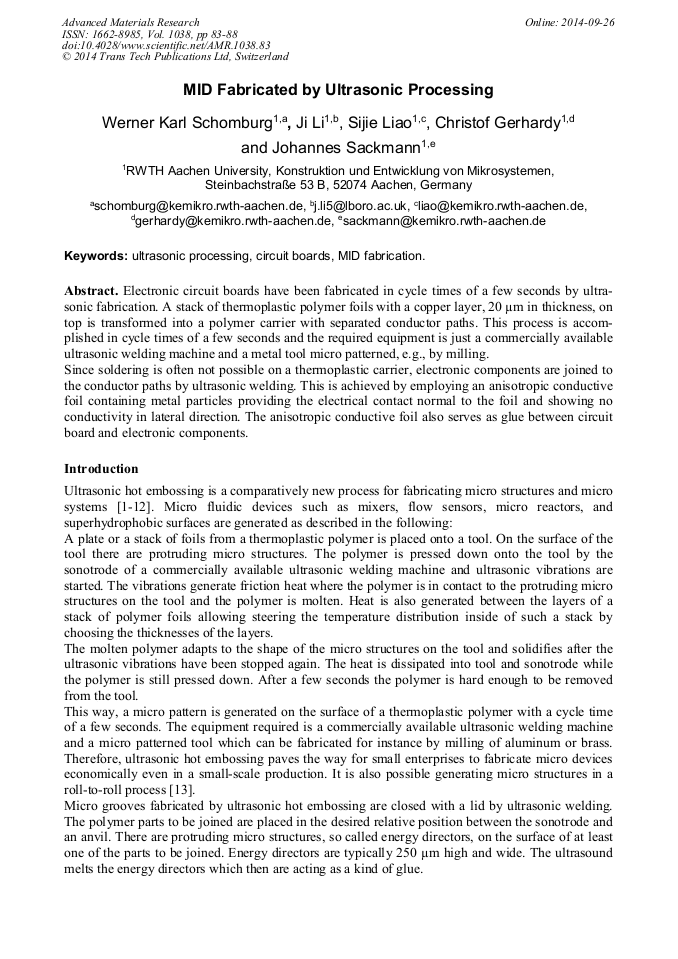

Article Preview

Abstract:

Electronic circuit boards have been fabricated in cycle times of a few seconds by ultrasonic fabrication. A stack of thermoplastic polymer foils with a copper layer, 20 μm in thickness, on top is transformed into a polymer carrier with separated conductor paths. This process is accomplished in cycle times of a few seconds and the required equipment is just a commercially available ultrasonic welding machine and a metal tool micro patterned, e.g., by milling.Since soldering is often not possible on a thermoplastic carrier, electronic components are joined to the conductor paths by ultrasonic welding. This is achieved by employing an anisotropic conductive foil containing metal particles providing the electrical contact normal to the foil and showing no conductivity in lateral direction. The anisotropic conductive foil also serves as glue between circuit board and electronic components.

You might also be interested in these eBooks

11th International Congress Molded Interconnect Devices – Scientific Proceedings

Info:

Periodical:

Advanced Materials Research (Volume 1038)

Pages:

83-88

DOI:

https://doi.org/10.4028/www.scientific.net/AMR.1038.83

Citation:

Cite this paper

Online since:

September 2014

Authors:

Werner Karl Schomburg, Ji Li, Sijie Liao, Christof Gerhardy, Johannes Sackmann

Keywords:

Circuit Boards, MID Fabrication, Ultrasonic Processing

Export:

RIS, BibTeX

Price:

Permissions CCC:

Request Permissions

Permissions PLS:

Request Permissions

Сopyright:

© 2014 Trans Tech Publications Ltd. All Rights Reserved

Share:

Citation:

[1] S. -J. Liu, Y. -T. Dung, Hot embossing precise structure onto plastic plates by ultrasonic vibration, Polym. Eng. Sci. 45 (2005) 915-925, DOI: 10. 1002/pen. 20357.

DOI: 10.1002/pen.20357

[2] C. -H. Lin, R. Chen, Ultrasonic nanoimprint lithography: a new approach to nanopatterning, J. Micro/Nanolith. MEMS MOEMS 5(1) (2006) 011003, DOI: 10. 1117/1. 2172992.

DOI: 10.1117/1.2172992

[3] H. Mekaru, H. Goto, M. Takahashi, Development of ultrasonic micro hot embossing technology, Microelectronic Engineering 84 (2007) 1282-1287, DOI: 10. 1016/j. mee. 2007. 01. 235.

DOI: 10.1016/j.mee.2007.01.235

[4] H. Mekaru, O. Nakamura, O. Maruyama, R. Maeda, T. Hatt, Development of precision transfer technology of atmospheric hot embossing by ultrasonic vibration, Microsyst. Technol. 13 (2007) 385-391, DOI: 10. 1007/s00542-006-0203-2.

DOI: 10.1007/s00542-006-0203-2

[5] P. Khuntontong, T. Blaser, W.K. Schomburg, Ultrasonic micro hot embossing of thermoplastic polymers, Proc. 24th Annual Meeting of the Polymer Processing Society, PPS24, Salerno, Italy, June 15-19 (2008) page II. 364.

[6] H. Mekaru, T. Noguchi, H. Goto, M. Takahashi, Effect of applying ultrasonic vibration in thermal nanoimprint lithography, Microsyst. Technol. 14 (2008) 1325–1333, DOI: 10. 1007/s00542-007-0512-0.

DOI: 10.1007/s00542-007-0512-0

[7] C.H. Lee, P.G. Jung, S.M. Lee, S.H. Park, B.S. Shin, J-H. Kim, K. -Y. Hwang, K.M. Kim, J.S. Ko, Replication of polyethylene nano-micro hierarchical structures using ultrasonic forming, J. Micromech. Microeng. 20 (2010).

DOI: 10.1088/0960-1317/20/3/035018

[8] W.K. Schomburg, K. Burlage, C. Gerhardy, Ultrasonic hot embossing, Micromachines 2 (2011) 157 - 166, DOI: 10. 3390/mi2020157.

DOI: 10.3390/mi2020157

[9] C. -Y. Wang, P. -Y. Tseng, C. -H. Lin, Replication of polyethylene terephthalate (PET) nano/ micro structures using ultrasonic hot nanoimprint, Proc. 6th IEEE International Conf. on Nano/ Micro Engineered and Molecular Systems, February, 20 - 23 2011 in Kaochsiung, Taiwan (2011).

DOI: 10.1109/nems.2011.6017418

[10] K. Burlage, C. Gerhardy, H. Praefke, M.A. Liauw, W.K. Schomburg, Slug length monitoring in liquid-liquid Taylor-flow integrated in a novel PVDF micro channel, Chemical Engineering Journal 227 (2012) 111-115, DOI: 10. 1016/j. cej. 2012. 08. 070.

DOI: 10.1016/j.cej.2012.08.070

[11] B. Altmann, R. Ahrens, A. Welle, H. Dinglreiter, M. Schneider, A. Schober, Microstructuring of multiwell plates for three-dimensional cell culture applications by ultrasonic embossing, Biomedical Microdevices 14 (2012).

DOI: 10.1007/s10544-011-9605-8

[12] W. Jung, J. Ra, K. Park, Design optimization of ultrasonic horn for micro-pattern replication, International Journal of Precision Engineering and Manufacturing 13(12) (2012) 2195-2201, DOI: 10. 1007/s12541-012-0291-0.

DOI: 10.1007/s12541-012-0291-0

[13] B. Memering, C. Gerhardy, W.K. Schomburg, Rolle zu Rolle Produktion von Mikrosystemen aus Kunststofffolien mittels Ultraschallheißprägens, Proc. Mikrosystemtechnik Kongress 2013 in Aachen, Germany, 14 - 16 October (2013).

[14] J. Li, C. Gerhardy, W.K. Schomburg, Polymer Circuit Boards Fabricated by Ultrasonic Hot Embossing, J. Micromech. Microeng. 23 (2013) 075028, DOI: 10. 1088/0960-1317/23/7/075028.

DOI: 10.1088/0960-1317/23/7/075028

[15] S. Liao, C. Gerhardy, J. Sackmann, W.K. Schomburg, Tools for ultrasonic hot embossing, Microsystem Technologies (2014), DOI: 10. 1007/s00542-014-2232-6.

DOI: 10.1007/s00542-014-2232-6
