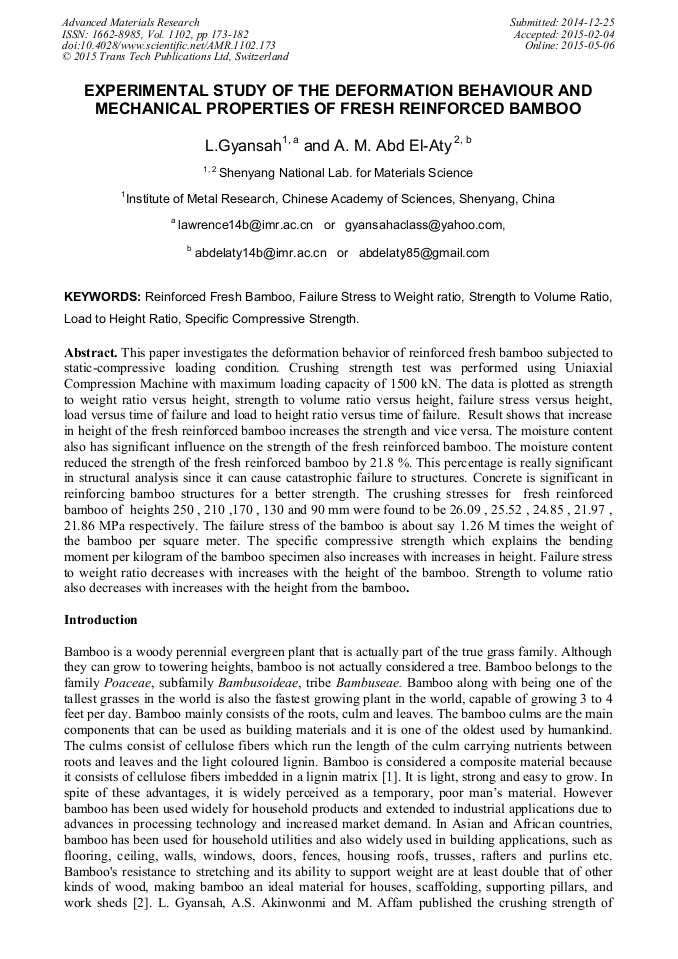

Experimental Study of the Deformation Behaviour and Mechanical Properties of Fresh Reinforced Bamboo

Abstract:

A bstract. This paper investigates the deformation behavior of reinforced fresh bamboo subjected to static-compressive loading condition. Crushing strength test was performed using Uniaxial Compression Machine with maximum loading capacity of 1500 kN. The data is plotted as strength to weight ratio versus height, strength to volume ratio versus height, failure stress versus height, load versus time of failure and load to height ratio versus time of failure. Result shows that increase in height of the fresh reinforced bamboo increases the strength and vice versa. The moisture content also has significant influence on the strength of the fresh reinforced bamboo. The moisture content reduced the strength of the fresh reinforced bamboo by 21.8 %. This percentage is really significant in structural analysis since it can cause catastrophic failure to structures. Concrete is significant in reinforcing bamboo structures for a better strength. The crushing stresses for fresh reinforced bamboo of heights 250 , 210 ,170 , 130 and 90 mm were found to be 26.09 , 25.52 , 24.85 , 21.97 , 21.86 MPa respectively. The failure stress of the bamboo is about say 1.26 M times the weight of the bamboo per square meter. The specific compressive strength which explains the bending moment per kilogram of the bamboo specimen also increases with increases in height. Failure stress to weight ratio decreases with increases with the height of the bamboo. Strength to volume ratio also decreases with increases with the height from the bamboo.

• Periodical: Advanced Materials Research (Volume 1102)
• Pages: 173-182
• DOI: https://doi.org/10.4028/www.scientific.net/AMR.1102.173
• Online since: May 2015
• Authors: Lawrence Gyansah*, A.M. Abd El-Aty
• Keywords: Failure Stress to Weight Ratio, Load to Height Ratio, Reinforced Fresh Bamboo, Specific Compressive Strength, Strength to Volume Ratio

References

[1] Kishen, J., Ghosh, D.P., and Rehman, M.A. Studies on moisture content, shrinkage, swelling and intersection point of mature (Dendrocalamus strictus) male bamboo,. Indian Forest Rec., Vol. 1: (1956), pp.1-30.

[2] Liese, W. and G. Weiner., Modifications of bamboo culm structures due to ageing and wounding,. The Linnean Society, London, (1997), pp.313-322.

[3] L. Gyansah, A.S. Akinwonmi and M. Affam, The Fracture Behaviour of Fresh Bamboo Under Uniaxial Compressive Loading Condition.  Research Journal of Applied Sciences, Engineering and Technology, 2(8): , (2010), 720-726.

[4] Limaye, V.D., Strength of bamboo (Dendrocalamus strictus),. Ind. For. Rec., Vol. 78, (1952), pp.558-575.

[5] L. Gyansah and S. Kwofie, Investigation into the Performance of Bamboo Using the Notched and the Un-Notched Specimen,.  Research Journal of Applied Sciences, Engineering and Technology, 3(04): (2011), 245-251.

[6] Chudley, R., Concrete", Construction Technology, Second SI Edition, ELBS with Longman (Publishers) Ltd, Vol. 1, (1994), pp.20-24.

[7] Swamy, R.N., Sustainable Concrete for Infrastructure Regeneration and Reconstruction, International Conference on Sustainable Construction into the next Millennium Environmentally friendly and innovative Cement Based Materials, Joao Pessoa, Brazil, (2000).

[8] Maheshwari, S. and Satpathy, K., Pulp and papermaking characteristics of nodes, internodes and culm of bamboo Dendrocalamus Strictus, IPPTA, Vol. 25, (1988), p.15 – 19.

[9] Zhou, F.C. Studies on physical and mechanical properties of bamboo woods, Nanjing Technology College Forest Production, Vol. 2, (1981), p.1 – 32.

[10] Espiloy, Z. B. Physico-Mechanical properties and Anatomical relationships of some Philippine bamboos,. Proceedings of International Bamboo Workshop Hangzhou, China, Singapore, P. R, Vol. 1, (1987), pp.257-264.

[11] Seema, J. and Kumar, R. Mechanical behaviour of bamboo and bamboo composite, Journal of Material Sci., (1992), p.4598 – 4604.

[12] Ghavami, K. and Rodrigues, C. S., Engineering Materials and Components with Plants, CIB Symposium, Construction & Environment, Theory into Practice Proc., São Paulo, Brazil, CD-ROM, ISBN 85-88142-01-5, Global Seven Editor, (2000), pp.1-16.

[13] Lakkad, S.C. and Patel, J.M. Mechanical Properties of bamboo, a natural Composite, Fiber Science Technology, Vol. 14, (1980), pp.319-322.

DOI: 10.1016/0015-0568(81)90023-3

[14] Gere, J.M. and Timoshenko, S.P. Mechanics of Machines, Third SI Edition, S. Thornes (Publishers) Ltd, Cheltenham, (1998), p.761, ISBN 0-7487-4084-8.

[15] Head, K.A., Manual of Soil Laboratory Testing", Soil Classification and Compaction Test. 2nd Edn., Pentech Press, London, (1992), , pp: 68-76.
