Numerical Investigation of the Damage Behavior of S355 EBW by Cohesive Zone Modeling

Abstract:

In this paper, the cohesive zone model is used to study the fracture behavior of an electron beam welded (EBW) steel joint. Mechanical properties of different weld regions are derived from the tensile test results of flat specimens, which are obtained from the respective weld regions. Based on the tensile test of notched round specimens, the cohesive strength T₀ can be fixed. With the fixed T₀ value, the cohesive model is applied to compact tension (C(T)) specimens with the initial crack located at different positions of weldment with different cohesive energy values Γ₀. Numerical simulations are compared with the experimental results in the form of force vs. Crack Opening Displacement (COD) curves as well as fracture resistance (J_R) curves.

You might also be interested in these eBooks

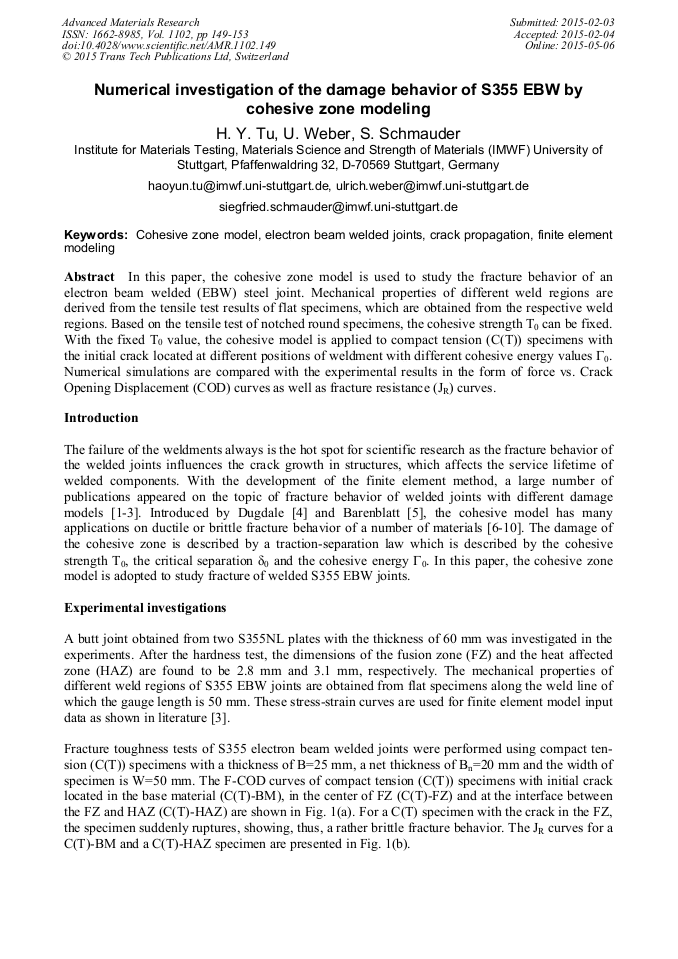

View Preview

Info:

Periodical:

Advanced Materials Research (Volume 1102)

Pages:

149-153

DOI:

https://doi.org/10.4028/www.scientific.net/AMR.1102.149

Citation:

Cite this paper

Online since:

May 2015

Authors:

H.Y. Tu*, Ulrich Weber, Siegfried Schmauder

Keywords:

Cohesive Zone Model, Crack Propagation, Electron Beam Welded Joints, Finite Element Modeling

Export:

RIS, BibTeX

Price:

Permissions CCC:

Request Permissions

Permissions PLS:

Request Permissions

Сopyright:

Citation:

* - Corresponding Author

References

[1] P. Nègre et al. Numerical simulation of crack extension in aluminium welds. Comp Mater Sci 28 (2003), pp.723-731.

DOI: 10.1016/j.commatsci.2003.08.026

Google Scholar

[2] A. Nonn, W. Dahl, W. Bleck. Numerical modelling of damage behaviour of laser-hybrid welds. Engng Fract Mech 75 (2008), pp.3251-3263.

DOI: 10.1016/j.engfracmech.2007.10.015

Google Scholar

[3] H. Y. Tu, S. Schmauder, U. Weber, Y. Rudnik, V. Ploshikhin. Simulation of the damage behavior of electron beam welded joints with the Rousselier model. Engng Fract Mech 103 (2013), 153-161.

DOI: 10.1016/j.engfracmech.2012.07.002

Google Scholar

[4] D. S. Dugdale, Yielding of steel sheets containing slits. J Mech Phys Solids 8 (1960), pp.100-104.

DOI: 10.1016/0022-5096(60)90013-2

Google Scholar

[5] G. I. Barenblatt. The mathematical theory of equilibrium cracks in brittle fracture. Adv Appl Mechanics 7 (1962), pp.55-129.

DOI: 10.1016/s0065-2156(08)70121-2

Google Scholar

[6] A. Hillerborg et al. Analysis of crack formation and crack growth in concrete by means of fracture mechanics and finite elements. Cem Conc Research 6 (1976), p.773–782.

DOI: 10.1016/0008-8846(76)90007-7

Google Scholar

[7] A. Needleman. A continuum model for void nucleation by inclusion debonding. J Appl Mech ASME 54 (1987), p.525–531.

DOI: 10.1115/1.3173064

Google Scholar

[8] A. Needleman. An analysis of decohesion along an imperfect interface. I J Frac 42 (1990), pp.21-40.

Google Scholar

[9] V. Tvergaard, J. W. Hutchinson. The relation between crack growth resistance and fracture process parameters in elastic-plastic solids. J Mech Phys Solids 40 (1992), p.1377–1397.

DOI: 10.1016/0022-5096(92)90020-3

Google Scholar

[10] I. Scheider. Bruchmechanische Bewertung von Laserschweissverbindungen durch numerische Rissfortschrittsimulation mit dem Kohäsivzonenmodell. PhD thesis, TU Hamburg-Harburg, Geesthacht, (2001).

Google Scholar

[11] A. Cornec et al. On the practical application of the cohesive model. Engng Fract Mech 70 (2003), p.1963-(1987).

Google Scholar

[12] K. -H. Schwalbe, I. Scheider, A. Cornec. SIAM CM09 - The SIAM method for application cohesive models of the damage behaviour of engineering materials and structures. GKSS report, 2009/1, Geesthacht, (2009).

Google Scholar
