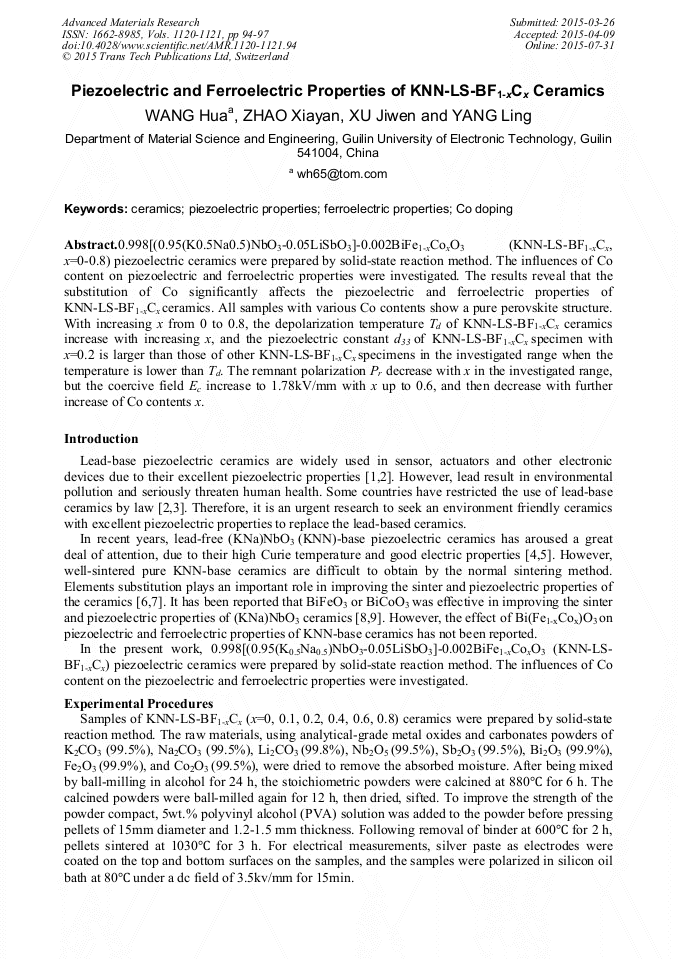

Piezoelectric and Ferroelectric Properties of KNN-LS-BF_1-_xC_x Ceramics

Abstract:

0.998[(0.95(K0.5Na0.5)NbO₃-0.05LiSbO₃]-0.002BiFe_1-_xCo_xO₃ (KNN-LS-BF_1-_xC_x, x=0-0.8) piezoelectric ceramics were prepared by solid-state reaction method. The influences of Co content on piezoelectric and ferroelectric properties were investigated. The results reveal that the substitution of Co significantly affects the piezoelectric and ferroelectric properties of KNN-LS-BF_1-_xC_x ceramics. All samples with various Co contents show a pure perovskite structure. With increasing x from 0 to 0.8, the depolarization temperature T_d of KNN-LS-BF_1-_xC_x ceramics increase with increasing x, and the piezoelectric constant d₃₃ of KNN-LS-BF_1-_xC_x specimen with x=0.2 is larger than those of other KNN-LS-BF_1-_xC_x specimens in the investigated range when the temperature is lower than T_d. The remnant polarization P_r decrease with x in the investigated range, but the coercive field E_c increase to 1.78kV/mm with x up to 0.6, and then decrease with further increase of Co contents x.

You might also be interested in these eBooks

Contemporary Approaches in Material Science and Materials Processing Technologies

View Preview

Info:

Periodical:

Advanced Materials Research (Volumes 1120-1121)

Pages:

94-97

DOI:

https://doi.org/10.4028/www.scientific.net/AMR.1120-1121.94

Citation:

Cite this paper

Online since:

July 2015

Authors:

Hua Wang*, Xia Yan Zhao, Ji Wen Xu, Ling Yang

Keywords:

Ceramic, Co Doping, Ferroelectric Properties, Piezoelectric Properties

Export:

RIS, BibTeX

Price:

Permissions CCC:

Request Permissions

Permissions PLS:

Request Permissions

Сopyright:

Citation:

* - Corresponding Author

References

[1] B. Noheda, D.E. Cox, G. Shirane, R. Guo, B. Jones, L.E. Cross, Stability of the monoclinic phase in the ferroelectric perovskite PZT, Phys. Rev. B. 63(2000)14103-9.

Google Scholar

[2] D.W. Wang, M.S. Cao, S.J. Zhang, Investigation of ternary system Pb(Sn, Ti)O3-Pb(Mg1/3Nb2/3) O3 with morphotropic phase boundary compositions, J. Eur. Ceram. Soc. 32(2012)441-448.

DOI: 10.1016/j.jeurceramsoc.2011.08.038

Google Scholar

[3] Y. Saito, H. Takao, T. Tani, T. Nonoyama, K. Takatori, T. Homma, Lead-free piezoceramics, Nature, 432(2004)84-87.

DOI: 10.1038/nature03028

Google Scholar

[4] H.L. Du, Z.M. Li, F.S. Tang, S.B. Qu, Z.B. Pei, W.C. Zhou, Preparation and piezoelectric properties of (K0. 5Na0. 5)NbO3 lead-free piezoelectric ceramics with pressure-less sintering, Mat. Sci. Eng. B, 131(2006)83-87.

DOI: 10.1016/j.mseb.2006.03.039

Google Scholar

[5] J.M. Jin, D.D. Wan, Y. Yang, Q. Lin, M. Zha, A linear ultrasonic motor using (K0. 5Na0. 5)NbO3 based lead-free piezoelectric ceramics, Sensor. Actuat. A, 165(2011)410-414.

DOI: 10.1016/j.sna.2010.10.017

Google Scholar

[6] S Wongsaenmai, K Kanchiang, S Chandarak, Crystal structure and ferroelectric properties of Mn-doped (K0. 5Na0. 5)0. 935Li0. 065)NbO3 lead-free ceramics, Curr. Appl. Phys. 12(2012)418-421.

DOI: 10.1016/j.cap.2011.07.040

Google Scholar

[7] H.Q. Wang, D.S. Ruan, Y.J. Dai, X.W. Zhang, Relationship between phase structure and electrical properties of (K0. 5Na0. 5)NbO3-LiTaO3 lead-free ceramics, Curr. Appl. Phys. 12(2012)504-508.

DOI: 10.1016/j.cap.2011.08.014

Google Scholar

[8] R.Z. Zuo, C. Ye, X.S. Fang, Na0. 5K0. 5NbO3-BiFeO3 lead-free piezoelectric ceramics, J. Phys. Chem. Solids, 69(2008)230-235.

DOI: 10.1016/j.jpcs.2007.08.066

Google Scholar

[9] W.J. Wu, D.Q. Xiao, J.G. Wu, W.F. Liang, J. Li, J. G Zhou, Polymorphic phase transition-induced electrical behavior of BiCoO3 modified (K0. 48Na0. 52)NbO3 lead-free piezoelectric ceramics, J. Alloy. Compd. 509(2011)L284-L288.

DOI: 10.1016/j.jallcom.2011.05.004

Google Scholar
