Assessment of Different Steel Material Characteristics on Shear Links Performance

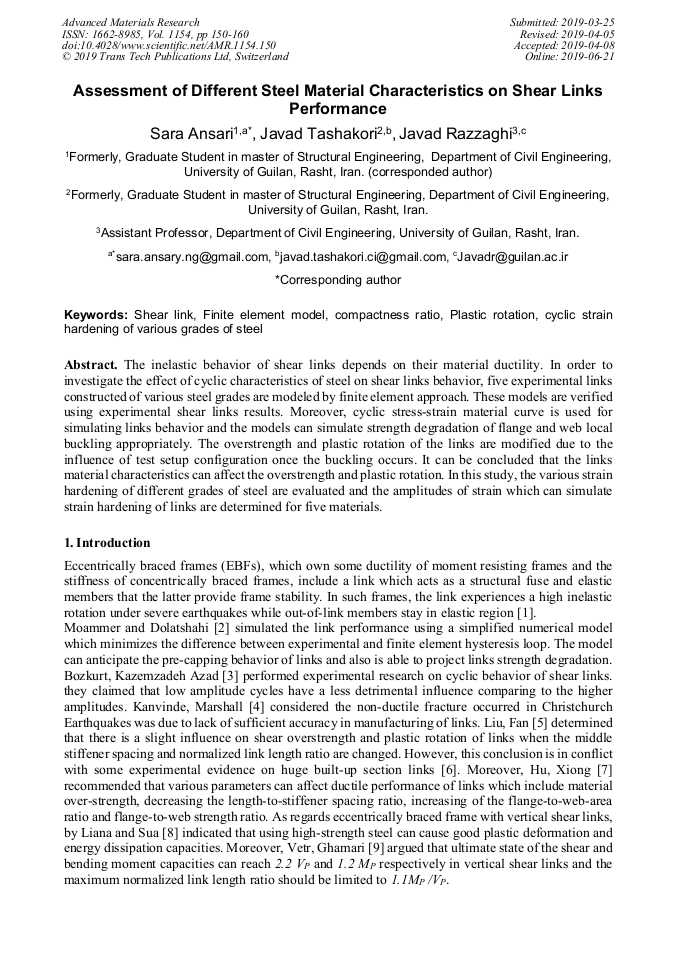

Article Preview

Abstract:

The inelastic behavior of shear links depends on their material ductility. In order to investigate the effect of cyclic characteristics of steel on shear links behavior, five experimental links constructed of various steel grades are modeled by finite element approach. These models are verified using experimental shear links results. Moreover, cyclic stress-strain material curve is used for simulating links behavior and the models can simulate strength degradation of flange and web local buckling appropriately. The overstrength and plastic rotation of the links are modified due to the influence of test setup configuration once the buckling occurs. It can be concluded that the links material characteristics can affect the overstrength and plastic rotation. In this study, the various strain hardening of different grades of steel are evaluated and the amplitudes of strain which can simulate strain hardening of links are determined for five materials.

You might also be interested in these eBooks

Advanced Materials and Technologies II

Info:

Periodical:

Advanced Materials Research (Volume 1154)

Pages:

150-160

DOI:

https://doi.org/10.4028/www.scientific.net/AMR.1154.150

Citation:

Cite this paper

Online since:

June 2019

Authors:

Sara Ansari*, Javad Tashakori, Javad Razzaghi

Keywords:

Compactness Ratio, Cyclic Strain Hardening of Various Grades of Steel, Finite Element Model, Plastic Rotation, Shear Link

Export:

RIS, BibTeX

Price:

Permissions CCC:

Request Permissions

Permissions PLS:

Request Permissions

Сopyright:

© 2019 Trans Tech Publications Ltd. All Rights Reserved

Share:

Citation:

* - Corresponding Author

[1] Roeder, C.W. and E.P. Popov, Eccentrically braced steel frames for earthquakes. J. Struct. Div. ASCE, 1978. 104(ST3): pp.391-412.

DOI: 10.1061/jsdeag.0004875

[2] Moammer, O. and M.K. Dolatshahi, Predictive equations for shear link modeling toward collapse. Engineering Structures, 2017. 151: p.599–612.

DOI: 10.1016/j.engstruct.2017.08.052

[3] Bozkurt, M.B., S. Kazemzadeh Azad, and C. Topkaya, Low-Cycle Fatigue Testing of Shear Links and Calibration of a Damage Law. Journal of Structural Engineering, 2018. 144 (10): 04018189.

DOI: 10.1061/(asce)st.1943-541x.0002192

[4] Kanvinde, A.M., et al., Forensic Analysis of Link Fractures in Eccentrically Braced Frames during the February 2011 Christchurch Earthquake: Testing and Simulation. Journal of Structural Engineering, 2015. 141(5): pp.1-15.

DOI: 10.1061/(asce)st.1943-541x.0001043

[5] Liu, X.-G., et al., Experimental research of replaceable Q345GJ steel shear links considering cyclic buckling and plastic overstrength. Journal of Constructional Steel Research 2017. 134: p.160–179.

DOI: 10.1016/j.jcsr.2017.03.018

[6] McDaniel, C.C., C.M. Uang, and F. Seible, Cyclic testing of built-up steel shear links for the new Bay Bridge. J. Struct. Eng., 2003. 129 (6): pp.801-809.

DOI: 10.1061/(asce)0733-9445(2003)129:6(801)

[7] Hu, S., et al., Analytical and Numerical Investigation of Overstrength Factors for Very Short Shear Links in EBFs. KSCE Journal of Civil Engineering, (2018).

DOI: 10.1007/s12205-018-1479-3

[8] Liana, M. and M. Sua, Seismic performance of high-strength steel fabricated eccentrically braced frame with vertical shear link. Journal of Constructional Steel Research, 2017. 137: p.262–285.

DOI: 10.1016/j.jcsr.2017.06.022

[9] Vetr, M.G., A. Ghamari, and J. Bouwkamp, Investigating the nonlinear behavior of Eccentrically Braced Frame with vertical shear links (V-EBF). Journal of Building Engineering, 2017. 10: pp.47-59.

DOI: 10.1016/j.jobe.2017.02.002

[10] AISC, Seismic provisions for structural steel buildings. American Institute of Steel Construction, 2016. ANSI/AISC 341-16.

DOI: 10.1201/b11248-16

[11] Hjelmstad, K.D. and E.P. Popov, Seismic behavior of active beam links in eccentrically braced frames. 1983, Report No. UBCIEERC-83/15, Earthquake Engineering Research Center, University of California at Berkeley, Richmond, CA. p. iii, 161 leaves.

[12] Ricles, J.M. and E.P. Popov, Composite action in eccentrically braced frames. 1989. pp.2046-2066.

DOI: 10.1061/(asce)0733-9445(1989)115:8(2046)

[13] Malley, J.O. and E.P. Popov, Shear links in eccentrically braced frames. J. Struct. Eng., 1984. 110(9): p.2275–2295.

DOI: 10.1061/(asce)0733-9445(1984)110:9(2275)

[14] Engelhardt, M.D. and E.P. Popov, Experimental performance of long links in eccentrically braced frames. 1992. pp.3067-3088.

DOI: 10.1061/(asce)0733-9445(1992)118:11(3067)

[15] SAC, Recommended Seismic Design Criteria for New Steel Moment-Frames Building. FEMA 350, Federal Emergency Management Agency, Washington, D.C, (2000).

[16] Manheim, D.N. and E.P. Popov, Plastic Shear Hinges in Steel Frames. J. Struct. Eng., 1983. 109: pp.2404-2419.

DOI: 10.1061/(asce)0733-9445(1983)109:10(2404)

[17] Ghobarah, A. and T. Ramadan, Seismic analysis of links of various lengths in eccentrically braced frames. 1991. pp.140-148.

DOI: 10.1139/l91-016

[18] Richards, P.W. and C.M. Uang, Effect of Flange Width-Thickness Ratio on Eccentrically Braced Frames Link Cyclic Rotation Capacity. J. Struct. Eng., 2005. 131(10): pp.1546-1552.

DOI: 10.1061/(asce)0733-9445(2005)131:10(1546)

[19] AISC, Seismic provisions for structural steel buildings. American Institute of Steel Construction, 2002. ANSI/AISC 341-02.

DOI: 10.1201/b11248-16

[20] Dusicka, P., A.M. Itani, and I.G. Buckle, Cyclic Behavior of Shear Links of Various Grades of Plate Steel. Journal of Structural Engineering, 2010. 136(4): pp.370-378.

DOI: 10.1061/(asce)st.1943-541x.0000131

[21] Arce, G., Impact of higher strength steels on local buckling and overstrength of links in eccentrically braced frames. 2002, Univ. of Texas at Austin: Austin, Tex. p. xvi, 213 leaves.

[22] Dusicka, P., A.M. Itani, and I.G. Buckle, Cyclic response of plate steels under large inelastic strains. Journal of Constructional Steel Research, 2007. 63(2): pp.156-164.

DOI: 10.1016/j.jcsr.2006.03.006

[23] Richards, P.W., Cyclic stability and capacity design of steel eccentrically braced frames. 2004, Dept. of Structural Engineering, Univ. of California.

[24] Kaufmann, E.J., B.R. Metrovich, and A.W. Pense, Characterization of cyclic inelastic strain behavior on properties of A572 Gr. 50 and A913 Gr. 50 rolled sections, in ATLSS Rep. No. 01-13 B2 - ATLSS Rep. No. 01-13. 2001, National Center for Engineering Research on Advanced Technology for Large Structural Systems,... Bethlehem, Pa.

DOI: 10.18057/ijasc.2015.11.3.1

[25] ABAQUS(6.13-1), Providence, RI, Dassault Systèmes.

[26] Kasai, K. and E.P. Popov, Cyclic web buckling control for shear link beams. Journal structural engineering, 1986. 112 (3): pp.505-523.

DOI: 10.1061/(asce)0733-9445(1986)112:3(505)

[27] Engelhardt, M. and E.P. Popov, Behavior of long links in eccentrically braced frames, in Berkeley, Richmond, CA. 1989, Report No. UBCIEERC-89/01,Earthquake Engineering Research Center, University of California, Richmond, CA. p. iv, 406 pages.
