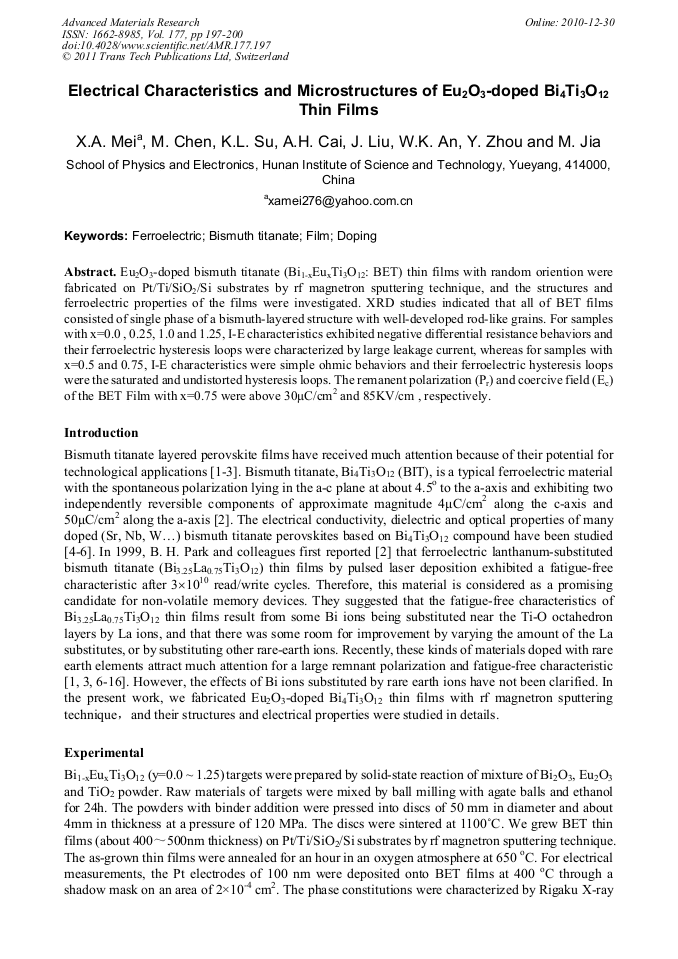

Electrical Characteristics and Microstructures of Eu₂O₃-Doped Bi₄Ti₃O₁₂ Thin Films

Abstract:

Eu2O3-doped bismuth titanate (Bi1-xEuxTi3O12: BET) thin films with random oriention were fabricated on Pt/Ti/SiO2/Si substrates by rf magnetron sputtering technique, and the structures and ferroelectric properties of the films were investigated. XRD studies indicated that all of BET films consisted of single phase of a bismuth-layered structure with well-developed rod-like grains. For samples with x=0.0 , 0.25, 1.0 and 1.25, I-E characteristics exhibited negative differential resistance behaviors and their ferroelectric hysteresis loops were characterized by large leakage current, whereas for samples with x=0.5 and 0.75, I-E characteristics were simple ohmic behaviors and their ferroelectric hysteresis loops were the saturated and undistorted hysteresis loops. The remanent polarization (Pr) and coercive field (Ec) of the BET Film with x=0.75 were above 30μC/cm2 and 85KV/cm , respectively.

• Periodical: Advanced Materials Research (Volume 177)
• Pages: 197-200
• DOI: https://doi.org/10.4028/www.scientific.net/AMR.177.197
• Online since: December 2010
• Authors: X.A. Mei, Min Chen, K.L. Su, A.H. Cai, J. Liu, Wei Ke An, Yong Zhou, M. Jia
• Keywords: Bismuth Titanate, Doping, Ferroelectric, Film

References

[1] J. F. Scott: Science Vol. 315(2007), p.954.

[2] B.H. Park, B.S. Kang, S.D. Bu, et al.: Nature Vol. 401(1999), p.682.

[3] H.N. Lee, D. Hesse, H. Zakharov, et al.: Science Vol. 296(2002), p. (2006).

[4] S.Y. Chen, B.C. Lan, C.S. Taso: Thin Solid Films Vol. 422(2002), p.186.

[5] Z.H. Bao, Y.Y. Yao, J.S. Zhu, et al.: Mater. Lett. Vol. 56 (2002), p.861.

[6] W. Wang, J. Zhu, X.Y. Mao: Mater. Res. Bull Vol. 42(2007), p.274.

[7] A.Z. Simoes, C. Quinelato, A. Ries, et al.: Mater. Chem. and Phys. Vol. 98(2006), p.481.

[8] Y.C. Chang, D.H. Kuo: Thin Solid Films Vol. 515(2006), p.1683.

[9] D. WU, A.D. Li, N.B. Ming: Appl. Phys. Lett. Vol. 84(2004), p.4505.

[10] M. Chen, Z.L. Liu, Y. Wang, et al.: Phys. Stat. Sol (a). Vol. 202.

[6] (2005), p.1166.

[11] U. Chon, K.B. Kim, H.M. Jang, et al.: Appl. Phys. Lett. Vol. 79.

[19] (2001), p.3137.

[12] M. Chen, Y.H. Sun, K.L. SU, et al.: Key Eng. Mater. Vol. 336(2007), p.155.

[13] Z.L. Liu, C.C. Wang, M. Chen, et al.: Mater. Lett. Vol. 58(2004), p.3648.

[14] M. Chen, Y. Wang, Z.L. Liu, et al.: Chin. Phys. Lett. Vol. 21.

[9] (2004), p.1811.

[15] Y. Noguchi, M. Miyayama: Appl. Phys. Lett. Vol. 78(2001), p. (1903).

[16] H. Uchida, H. Yoshikawa, I. Okada, et al.: Appl. Phys. Lett. Vol. 81(2002), p.2229.
