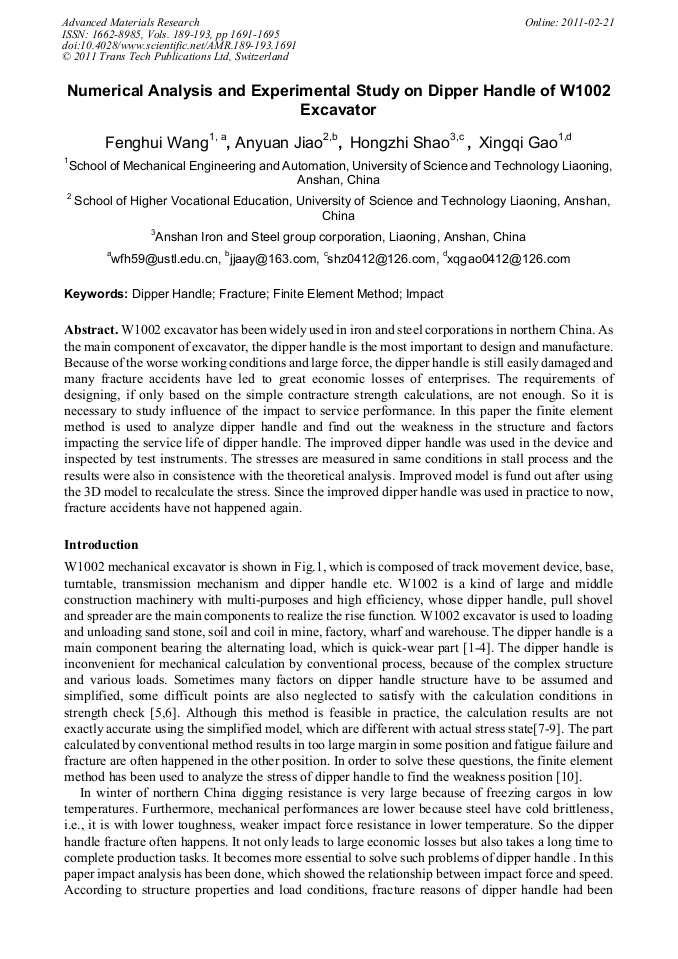

Numerical Analysis and Experimental Study on Dipper Handle of W1002 Excavator

Abstract:

W1002 excavator has been widely used in iron and steel corporations in northern China. As the main component of excavator, the dipper handle is the most important to design and manufacture. Because of the worse working conditions and large force, the dipper handle is still easily damaged and many fracture accidents have led to great economic losses of enterprises. The requirements of designing, if only based on the simple contracture strength calculations, are not enough. So it is necessary to study influence of the impact to service performance. In this paper the finite element method is used to analyze dipper handle and find out the weakness in the structure and factors impacting the service life of dipper handle. The improved dipper handle was used in the device and inspected by test instruments. The stresses are measured in same conditions in stall process and the results were also in consistence with the theoretical analysis. Improved model is fund out after using the 3D model to recalculate the stress. Since the improved dipper handle was used in practice to now, fracture accidents have not happened again.

• Periodical: Advanced Materials Research (Volumes 189-193)
• Pages: 1691-1695
• DOI: https://doi.org/10.4028/www.scientific.net/AMR.189-193.1691
• Online since: February 2011
• Authors: Feng Hui Wang, An Yuan Jiao, Hong Zhi Shao, Xing Qi Gao
• Keywords: Dipper Handle, Finite Element Model (FEM), Fracture, Impact

References

[1] Wang chuangmin. Strength Study on the Dipper Handle of WK- 10 Excavator with FEM[J]. MECHANICAL ENGINEERING & AUTOMATION, 2008. 6(151): pp.71-72, 75.

[2] Zheng dechao, Wei xinkuan. Finite Element Analysis for Dipper Stick of 10 Cubic Meter Mining Excavator[J]. Construction Machinery and Equipment, 2008. 8(39): pp.20-23.

[3] Zhang De-jian, Ke Zhen-dong. Fracture mechanics analysis of wheeled excavator dipper[J]. Mechanical Research & Application, 2009. 1(9): p.11, 14.

[4] GONG Jin, SONG Minglong, WANG Beizhan. Computer simulation and experiment for excavator ROPS performance[J]. Moder Manufacturing Engineering, 2009. 3: pp.104-108.

[5] Zhang De-jian, Ke Zhen-dong. Fracture mechanics analysis of wheeled excavator dipper[J]. Mechanical Research & Application, 1(in Chinese), (2009), pp.9-11, 14.

[6] GONG Jin, SONG Minglong, WANG Beizhan. Computer simulation and experiment for excavator ROPS performance[J]. Modern Manufacturing Engineering, 3 (in Chinese), (2009), pp.104-108.

[7] Y.K. Lin, Probabilistic Theory of Structural Dynamics[M], McGraw-Hill, Inc., New York, (1967).

[8] I.I. Gerega, I.S. Lozovoi, M.R. Kozulkevich and V.M. Shopa, Generalized mathematical-model of the multiple-mass dynamic system of a vibration machine[J], Soviet Applied Mechanics 27(12) (1991), p.1219–1224.

DOI: 10.1007/bf01301510

[9] B.C. Wen, Y.N. Li, Q.K. Han et al, Nonlinear Vibration in Engineering[M], Science Press, Beijing, (in Chinese), (2007).

[10] B.C. Wen, Y.N. Li, Y.M. Zhang et al., Vibration Utilization Engineering[M], Science Press, Beijing, (in Chinese), (2005).
