Dielectric Tunability of Mn Doped Pb0.3Sr0.7TiO3 Multilayered Thin Films Prepared by Sol-Gel Method

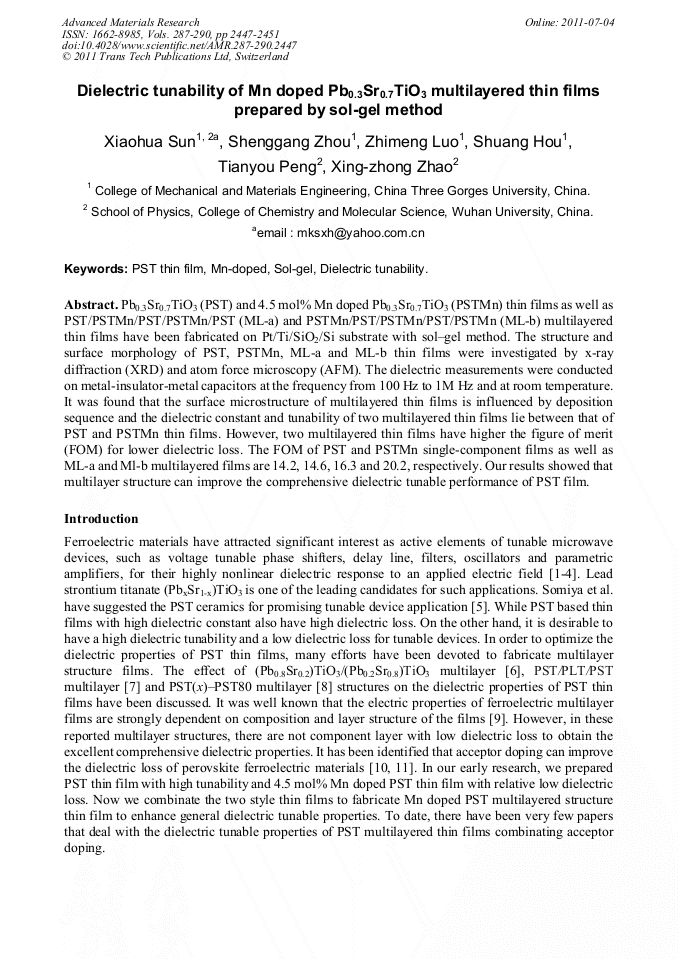

Article Preview

Abstract:

Pb0.3Sr0.7TiO3 (PST) and 4.5 mol% Mn doped Pb0.3Sr0.7TiO3 (PSTMn) thin films as well as PST/PSTMn/PST/PSTMn/PST (ML-a) and PSTMn/PST/PSTMn/PST/PSTMn (ML-b) multilayered thin films have been fabricated on Pt/Ti/SiO2/Si substrate with sol–gel method. The structure and surface morphology of PST, PSTMn, ML-a and ML-b thin films were investigated by x-ray diffraction (XRD) and atom force microscopy (AFM). The dielectric measurements were conducted on metal-insulator-metal capacitors at the frequency from 100 Hz to 1M Hz and at room temperature. It was found that the surface microstructure of multilayered thin films is influenced by deposition sequence and the dielectric constant and tunability of two multilayered thin films lie between that of PST and PSTMn thin films. However, two multilayered thin films have higher the figure of merit (FOM) for lower dielectric loss. The FOM of PST and PSTMn single-component films as well as ML-a and Ml-b multilayered films are 14.2, 14.6, 16.3 and 20.2, respectively. Our results showed that multilayer structure can improve the comprehensive dielectric tunable performance of PST film.

You might also be interested in these eBooks

Info:

Periodical:

Advanced Materials Research (Volumes 287-290)

Pages:

2447-2451

Citation:

Online since:

July 2011

Export:

Price:

Permissions CCC:

Permissions PLS:

Сopyright:

© 2011 Trans Tech Publications Ltd. All Rights Reserved

Share:

Citation:

[1] K.C. Verma, A.K. Sharma, S.S. Bhatt, et al., Philosophical Magazine. Vol. 89 (2009), pp.2321-2332

Google Scholar

[2] X. Sun, H. Huang, S. Wang, et al., Thin Solid Films. Vol. 516 (2008), pp.1308-1312

Google Scholar

[3] C. Fragkiadakis, A. Lüker, R.V. Wright, et al., J Appl Phys. Vol. 105 (2009), p.061635

Google Scholar

[4] H. Zhai, Y. Xia, A. Li, et al., Thin Solid Films. Vol. 518 (2010), pp.3929-3932

Google Scholar

[5] Y. Somiya, A.S. Bhalla, and L.E. Cross, Int J Inorg Mater. Vol. 3 (2001), pp.709-714

Google Scholar

[6] K.T. Kim, C.I. Kim, J.C. Woo, et al., J Korean Phys Soc. Vol. 51 (2007), p. S92-S95

Google Scholar

[7] H. Xu and M. Shen, Applied Physics A. Vol. 84 (2006), pp.323-327

Google Scholar

[8] D. Kang, S. Lee, Y. Kim, et al., J Eur Ceram Soc. Vol. 26 (2006), pp.2169-2173

Google Scholar

[9] H. Liu, X. Gong, J.-e. Liang, et al., Appl Phys Lett. Vol. 91 (2007), p.122906

Google Scholar

[10] A. Khalfallaoui, G. Velu, L. Burgnies, et al., IEEE T Ultrason Ferr. Vol. 57 (2010), pp.1029-1033

Google Scholar

[11] X. Sun, B. Zhu, T. Liu, et al., J Appl Phys. Vol. 99 (2006), p.084103

Google Scholar

[12] J. Wang, T. Zhang, J. Xiang, et al., Mater Chem Phys. Vol. 108 (2008), pp.445-448

Google Scholar

[13] X. Sun, S. Guo, G. Wu, et al., J Cryst Growth. Vol. 290 (2006), pp.121-126

Google Scholar

[14] W.T. Chang and L. Sengupta, J Appl Phys. Vol. 92 (2002), pp.3941-3946

Google Scholar

[15] S.Y. Wang, B.L. Cheng, C. Wang, et al., J Cryst Growth. Vol. 259 (2003), pp.137-143

Google Scholar

[16] S.G. Lu, X.H. Zhu, C.L. Mak, et al., Appl Phys Lett. Vol. 82 (2003), p.2877

Google Scholar
