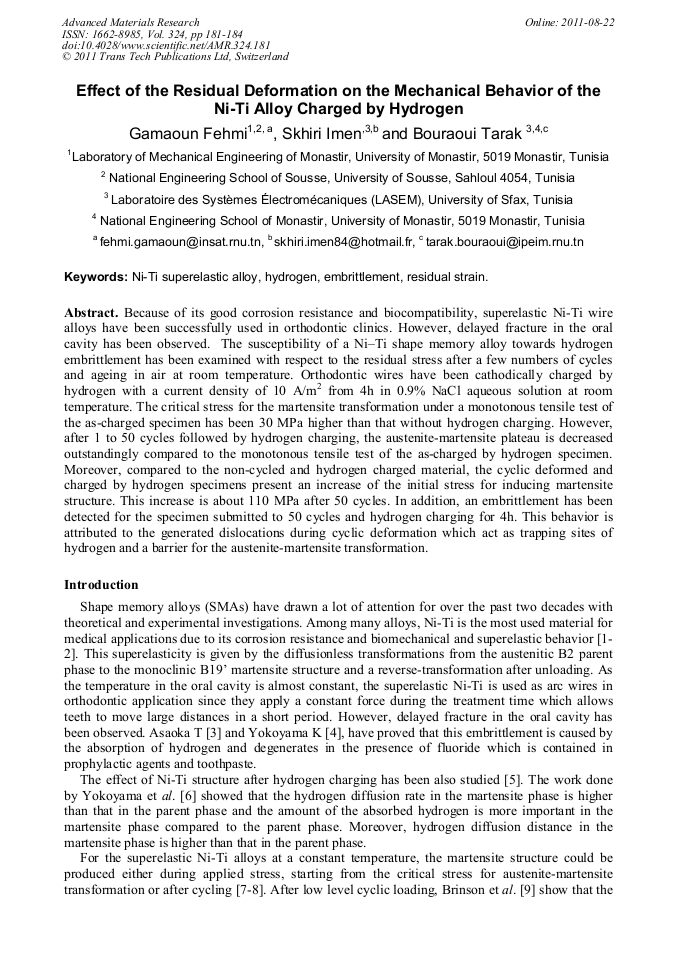

Effect of the Residual Deformation on the Mechanical Behavior of the Ni-Ti Alloy Charged by Hydrogen

Abstract:

Because of its good corrosion resistance and biocompatibility, superelastic Ni-Ti wire alloys have been successfully used in orthodontic clinics. However, delayed fracture in the oral cavity has been observed. The susceptibility of a Ni–Ti shape memory alloy towards hydrogen embrittlement has been examined with respect to the residual stress after a few numbers of cycles and ageing in air at room temperature. Orthodontic wires have been cathodically charged by hydrogen with a current density of 10 A/m2 from 4h in 0.9% NaCl aqueous solution at room temperature. The critical stress for the martensite transformation under a monotonous tensile test of the as-charged specimen has been 30 MPa higher than that without hydrogen charging. However, after 1 to 50 cycles followed by hydrogen charging, the austenite-martensite plateau is decreased outstandingly compared to the monotonous tensile test of the as-charged by hydrogen specimen. Moreover, compared to the non-cycled and hydrogen charged material, the cyclic deformed and charged by hydrogen specimens present an increase of the initial stress for inducing martensite structure. This increase is about 110 MPa after 50 cycles. In addition, an embrittlement has been detected for the specimen submitted to 50 cycles and hydrogen charging for 4h. This behavior is attributed to the generated dislocations during cyclic deformation which act as trapping sites of hydrogen and a barrier for the austenite-martensite transformation.

• Periodical: Advanced Materials Research (Volume 324)
• Pages: 181-184
• DOI: https://doi.org/10.4028/www.scientific.net/AMR.324.181
• Online since: August 2011
• Authors: Fehmi Gamaoun, Imen Skhiri, Tarak Bouraoui
• Keywords: Embrittlement, Hydrogen, Ni-Ti Superelastic Alloy, Residual Strain

References

[1] Fujio Miura, Masakuni Mogi, Yoshiaki Ohura and Hitoshi Hamanaka, 'the super-elastic property of the Japanese NiTi alloy', Americal Jornal of Orthodontics and dentofacial orthopedics, 90 (1986) 1–10.

DOI: 10.1016/0889-5406(86)90021-1

[2] P.H. Lin, H. Tobushi, K. Tanaka, T. Hattori and M. Makita, 'Pseudoelastic Behaviour of TiNi Shape Memory Alloy Subjected to Strain Variation', Journal of Intelligent Materials and Sytem Structure (1994) 5, 5, 694-701.

DOI: 10.1177/1045389x9400500514

[3] Asaoka T, Yamashita H, Saito H, Ishida Y. ' Effect of a Small Amount of Hydrogen on the Pseudo-Elastic Properties of Ti-Ni Alloy', The Journal of the Japan Institute of Metals (1993) 57, 1123-1129.

DOI: 10.2320/jinstmet1952.57.10_1123

[4] Yokoyama K, Watabe S, Hamada K, Sakai J, Asaoka K, Nagumo, ' Susceptibility to delayed fracture of Ni–Ti superelastic alloy', Materials Science and Engineering A, 34 (2003) 91-97.

DOI: 10.1016/s0921-5093(02)00201-0

[5] R. Schmidt, M. Schlereth, H. Wipf, W. Assmus, M. Muellner, 'Hydrogen solubility and diffusion in the shape-memory equiatomic nickel-titanium alloy', Journal of Physics: Condensed Matter 1(14) (1989) 2473-2482.

DOI: 10.1088/0953-8984/1/14/003

[6] K. Yokoyama, M. Tomita, K. Asaokaa and J. Sakai, ' Hydrogen absorption and thermal desorption behaviors of Ni–Ti superelastic alloy subjected to sustained tensile-straining test with hydrogen charging', Scripta Materialia 57 (2007) 393–396.

DOI: 10.1016/j.scriptamat.2007.05.002

[7] S. Miyazaki, T. Imai, K. Otsuka and Y. Suzuki, Lüders-like deformation observed in the transformation pseudoelasticity of a TiNi alloy. Scripta Metall. 15 (1981) 853–856.

DOI: 10.1016/0036-9748(81)90265-9

[8] S. Miyazaki, T. Imai, Y. Igo and K. Otsuka, ' Effect of cyclic deformation on the pseudoelasticity characteristics of Ti-Ni alloys', Metallurgical and Materials Transactions A, 17, 1 (1986) 115-120.

DOI: 10.1007/bf02644447

[9] L.C.L. Catherine Brinson, Ina Schmidt and Rolf Lammering, ' Stress-induced transformation behavior of a polycrystalline NiTi shape memory alloy: micro and macromechanical investigations via in situ optical microscopy', Journal of the Mechanics and Physics of Solids, 52, 7 (2004).

DOI: 10.1016/j.jmps.2004.01.001

[10] W. Tang and R. Sandstrom, Analysis of the influence of cycling on NiTi shape memory alloy properties, Material and Design, 14, 2 (1993) 103-113.
