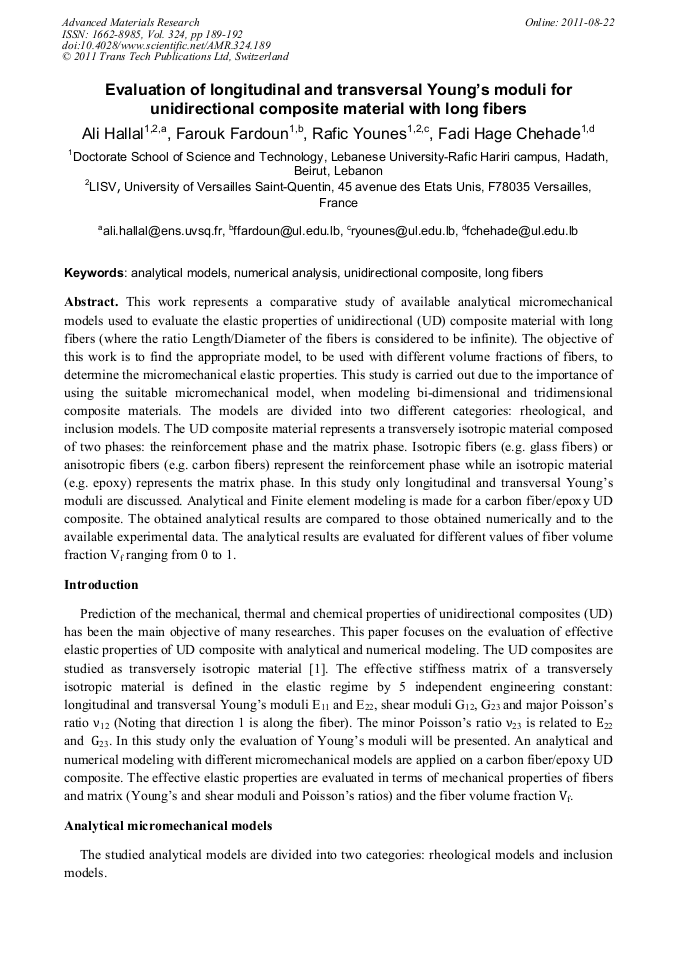

Evaluation of Longitudinal and Transversal Young’s Moduli for Unidirectional Composite Material with Long Fibers

Abstract:

This work represents a comparative study of available analytical micromechanical models used to evaluate the elastic properties of unidirectional (UD) composite material with long fibers (where the ratio Length/Diameter of the fibers is considered to be infinite). The objective of this work is to find the appropriate model, to be used with different volume fractions of fibers, to determine the micromechanical elastic properties. This study is carried out due to the importance of using the suitable micromechanical model, when modeling bi-dimensional and tridimensional composite materials. The models are divided into two different categories: rheological, and inclusion models. The UD composite material represents a transversely isotropic material composed of two phases: the reinforcement phase and the matrix phase. Isotropic fibers (e.g. glass fibers) or anisotropic fibers (e.g. carbon fibers) represent the reinforcement phase while an isotropic material (e.g. epoxy) represents the matrix phase. In this study only longitudinal and transversal Young’s moduli are discussed. Analytical and Finite element modeling is made for a carbon fiber/epoxy UD composite. The obtained analytical results are compared to those obtained numerically and to the available experimental data. The analytical results are evaluated for different values of fiber volume fraction Vf ranging from 0 to 1.

• Periodical: Advanced Materials Research (Volume 324)
• Pages: 189-192
• DOI: https://doi.org/10.4028/www.scientific.net/AMR.324.189
• Online since: August 2011
• Authors: Ali Hallal, Farouk Fardoun, Rafic Younes, Fadi Hage Chehade
• Keywords: Analytical Model, Long Fibers, Numerical Analysis, Unidirectional Composite

References

[1] A. K. Kaw. Mechanic of composite materials second edition. 2006 by Taylor & Francis Group, LLC.

[2] Chamis C.C., 1989. Mechanics of composite materials : past present and future. J. Comp. Technol. Res. ASTM. 11, 3-14

[3] J.D. Eshelby. The determination of the elastic field of an ellipsoidal inclusion and related problems. Proc. Royal. Soc., A241 (1957) 376-396.

[4] T. Mori and K. Tanaka. Average stress in matrix and average elastic energy of materials with misfitting inclusions. Acta Metallurgica, 21 (1973) 571-574.

DOI: 10.1016/0001-6160(73)90064-3

[5] Hill, R., 1965. A self-consistent mechanics of composite materials. J. Mech. Phys. Solids. 13, 213-222.

[6] HALPIN (J.C.) et KARDOS (J.L.). The Halpin Tsai equations. A review. Polymer Engineering and Science, 16, 5 (1976) 344-352.

DOI: 10.1002/pen.760160512

[7] S. Li. Boundary conditions for unit cells from periodic microstructures and their implications. Composites Science and Technology 68 (2008) 1962–1974.

DOI: 10.1016/j.compscitech.2007.03.035

[8] Zheng-Ming Huang. Micromechanical prediction of ultimate strength of transversely isotropic fibrous composites. International Journal of Solids and Structures 38 (2001) 4147-4172.

DOI: 10.1016/s0020-7683(00)00268-7
