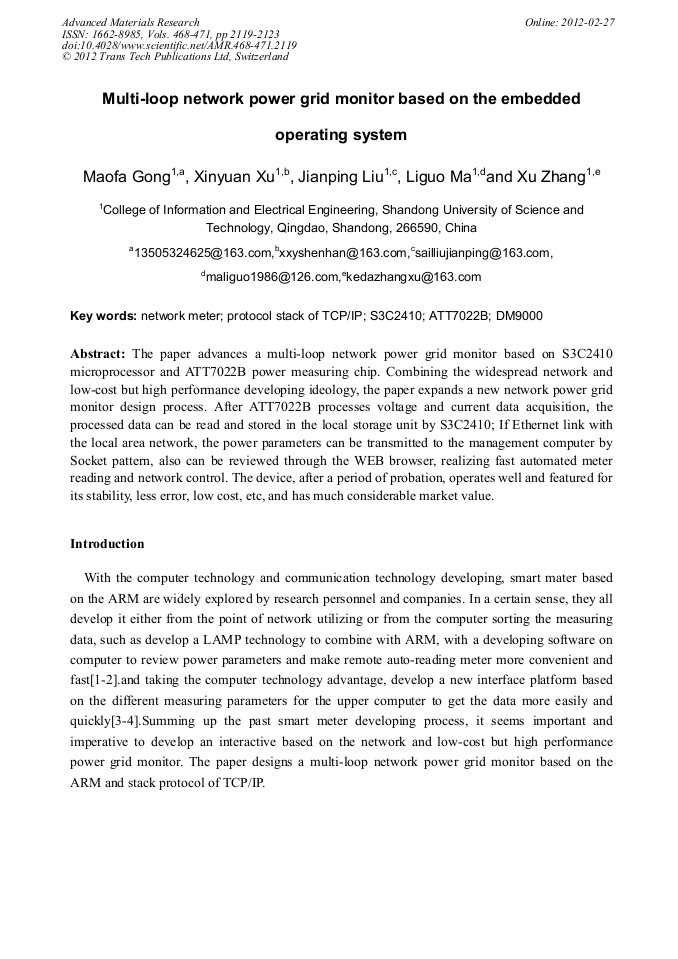

Multi-Loop Network Power Grid Monitor Based on the Embedded Operating System

Abstract:

The paper advances a multi-loop network power grid monitor based on S3C2410 microprocessor and ATT7022B power measuring chip. Combining the widespread network and low-cost but high performance developing ideology, the paper expands a new network power grid monitor design process. After ATT7022B processes voltage and current data acquisition, the processed data can be read and stored in the local storage unit by S3C2410; If Ethernet link with the local area network, the power parameters can be transmitted to the management computer by Socket pattern, also can be reviewed through the WEB browser, realizing fast automated meter reading and network control. The device, after a period of probation, operates well and featured for its stability, less error, low cost, etc, and has much considerable market value.
