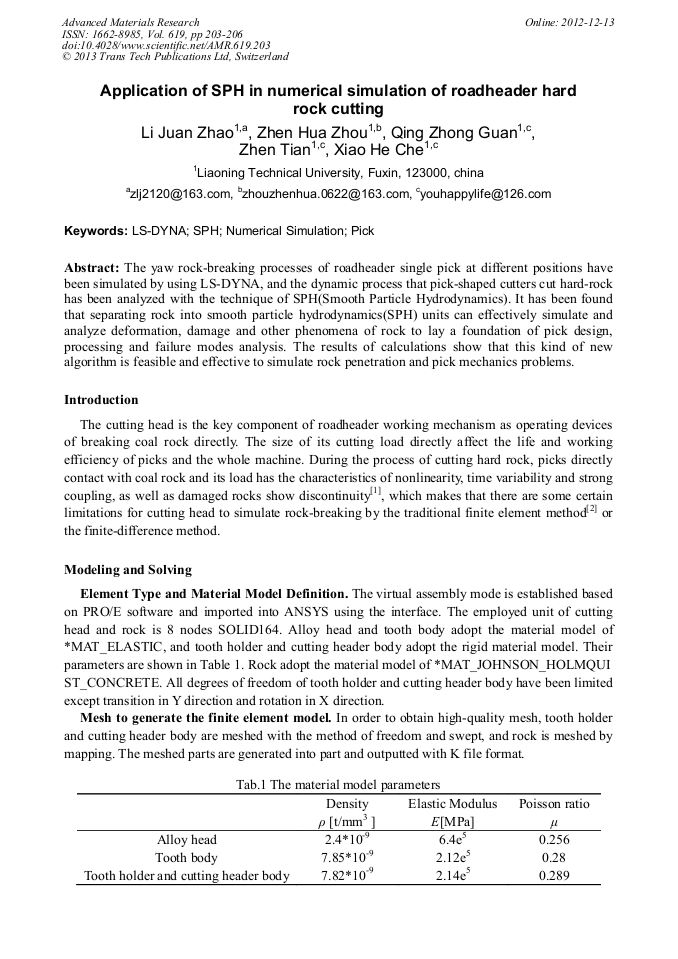

Application of SPH in Numerical Simulation of Roadheader Hard Rock Cutting

Abstract:

The yaw rock-breaking processes of roadheader single pick at different positions have been simulated by using LS-DYNA, and the dynamic process that pick-shaped cutters cut hard-rock has been analyzed with the technique of SPH(Smooth Particle Hydrodynamics). It has been found that separating rock into smooth particle hydrodynamics(SPH) units can effectively simulate and analyze deformation, damage and other phenomena of rock to lay a foundation of pick design, processing and failure modes analysis. The results of calculations show that this kind of new algorithm is feasible and effective to simulate rock penetration and pick mechanics problems.

• Periodical: Advanced Materials Research (Volume 619)
• Pages: 203-206
• DOI: https://doi.org/10.4028/www.scientific.net/AMR.619.203
• Online since: December 2012
• Authors: Li Juan Zhao, Zhen Hua Zhou, Qing Zhong Guan, Zhen Tian, Xiao He Che
• Keywords: LS-DYNA, Numerical Simulation, Pick, Smoothed Particle Hydrodynamic (SPH)

References

[1] Li Xiaohuo, Wang Dan, Song Bo. The finite element analysis of cutting agencies of hard rock IBM based on Pro_E and ANSYS[J]. China Mining, 2010,19(5)

[2] Ji Yujie, Yin Huanxing, Wang Ping. Finite Element Analysis to pick of tunneller[J]. Mining Machinery, 2011,39 (2)

[3] Ning Zhongliang, Zhu Huashuang. Stress distribution law of pick-like bit[J]. Xi'an Science and Technology Journal, 2003,23(3)

[4] Wang Zheng, Ni Yushan, Cao Juzhen. The research progress of dynamic mechanical properties of concrete under the impact load[J]. Explosion and Shock, 2005,25(6)

[5] Su Chong, Tang Liang, Hou Junming, Wang Wanshan. Research on metal cutting simulation based on FEM and SPH coupled algorithm[J]. System Simulation Journal, 2009 ,21(16)

DOI: 10.1109/asc-icsc.2008.4675577

[6] Song Li, Xiao Liping, Lin Yunmei. Numerical simulation research on the elastic and plastic failure process of rock[J]. Mechanics Model, 2005,37(4)
