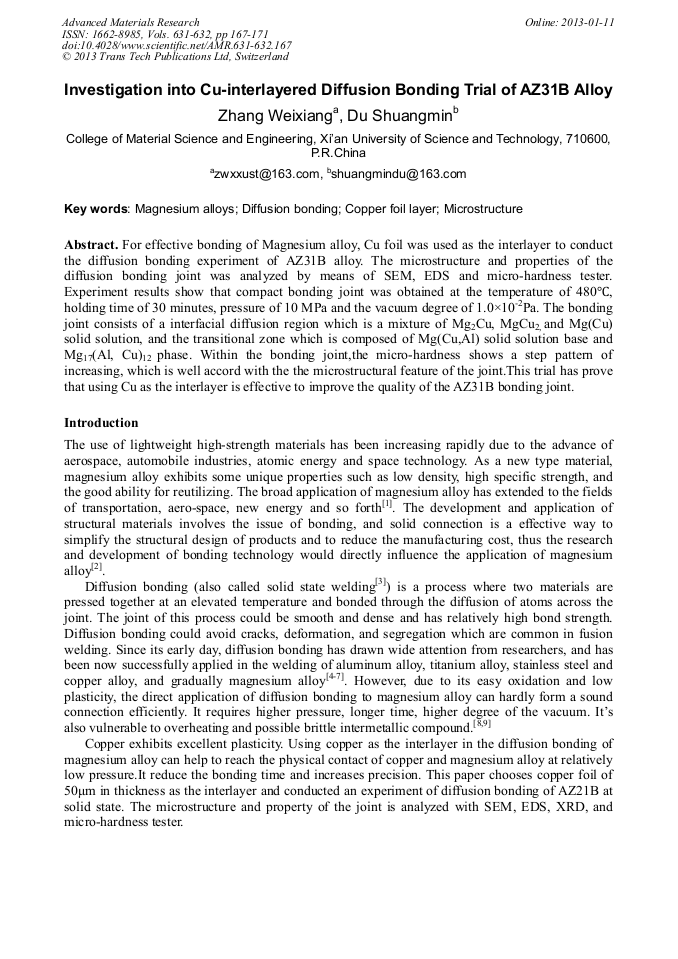

Investigation into Cu-Interlayered Diffusion Bonding Trial of AZ31B Alloy

Abstract:

For effective bonding of Magnesium alloy, Cu foil was used as the interlayer to conduct the diffusion bonding experiment of AZ31B alloy. The microstructure and properties of the diffusion bonding joint was analyzed by means of SEM, EDS and micro-hardness tester. Experiment results show that compact bonding joint was obtained at the temperature of 480°C, holding time of 30 minutes, pressure of 10 MPa and the vacuum degree of 1.0×10^-2Pa. The bonding joint consists of a interfacial diffusion region which is a mixture of Mg₂Cu, MgCu₂, and Mg(Cu) solid solution, and the transitional zone which is composed of Mg(Cu,Al) solid solution base and Mg₁₇(Al, Cu)₁₂ phase. Within the bonding joint,the micro-hardness shows a step pattern of increasing, which is well accord with the the microstructural feature of the joint.This trial has prove that using Cu as the interlayer is effective to improve the quality of the AZ31B bonding joint.

• Periodical: Advanced Materials Research (Volumes 631-632)
• Pages: 167-171
• DOI: https://doi.org/10.4028/www.scientific.net/AMR.631-632.167
• Online since: January 2013
• Authors: Wei Xiang Zhang, Shuang Min Du
• Keywords: Copper Foil Layer, Diffusion Bonding, Magnesium Alloy, Microstructure

References

[1] HUANG Boyun. Status and Developing Strategy for China's Nonferrous Metal material industry. [J]The Chinese Journal of Nonferrous Metals, 2004, 14(5): 122-127.

[2] DING Wen-jiang. Science and Technology of Magnesium Alloys[M]. Bei Jing: Science Press, 2007. 3] HE Kang-sheng, SUN Guo-jun. The Diffusion Welding of Materials[M]. Bei Jing: National Defense Industry Press, 1982. 183-184.

[4] Ow czarki W A, Paulonis D F. Application of Diffusion Welding in the USA [J]. Welding journal, 1981, 60(2): 22-23.

[5] ZHAO Xihua. Press Welding [M]. Bei jing: Mechanical Industry Press, 1996. 198-199.

[6] REN Jiangwei, LI Yajiang. Microstructure Characteristics in the Interface Zone of Ti/Al Diffusion Bonding[J]. Materials letters, 2002, 56(5): 647-652.

DOI: 10.1016/s0167-577x(02)00570-0

[7] LIU Peng, LI Yajiang. Microstructure in the Interface Zone of Diffusion-bonded Joint of Mg/Al Dissimilar Materials [J]. Transactions of the china welding institution, 2004, 25(5): 5-8.

[8] Somekaka H, Hosokawa H, Watanabe H, et al. Experimental Study on Diffusion Bonding in Pure Magnesium [J]. Materials Transactions, 2001, 42(10): 205-207.

[9] YU yandong, ZHANG kaifeng, JIANG dangmin, HAN wenbo. Diffusion Bonding of Superplastic Magnesium Alloy MB15. [J]Transactions of the china welding institution, 2003, 24(1): 64-68.

[10] Chen Y. C., Zhang Y. G., Chen C. Q. General Theory of Interdiffusion Growth in Diffusion Couple [J]. Materials Science and Engineering A, 2004, 368(1): 1-9.

[11] HE Peng, FENG Jicai. Formation Mechanism of New Phase Intermetallic Compound in the Diffusion Bonding Joint. [J]. Transactions of the China Welding Institution. 2001, 22(1): 53-55.

[12] Pretorius R., Marais T.K., Theron C.C. Thin Film Compound Phase Formation Sequence: An Effective Heat of Formation Model [J]. Materials Science Reports, 1993, 10(1): 1-832004.

DOI: 10.1016/0920-2307(93)90003-w

[13] HUANG Debin. Chinese Mechanical Engineering Society[M]. Non-ferrous Metal Manual [M]. BeiJing: Chemical Industry Press, 23.
