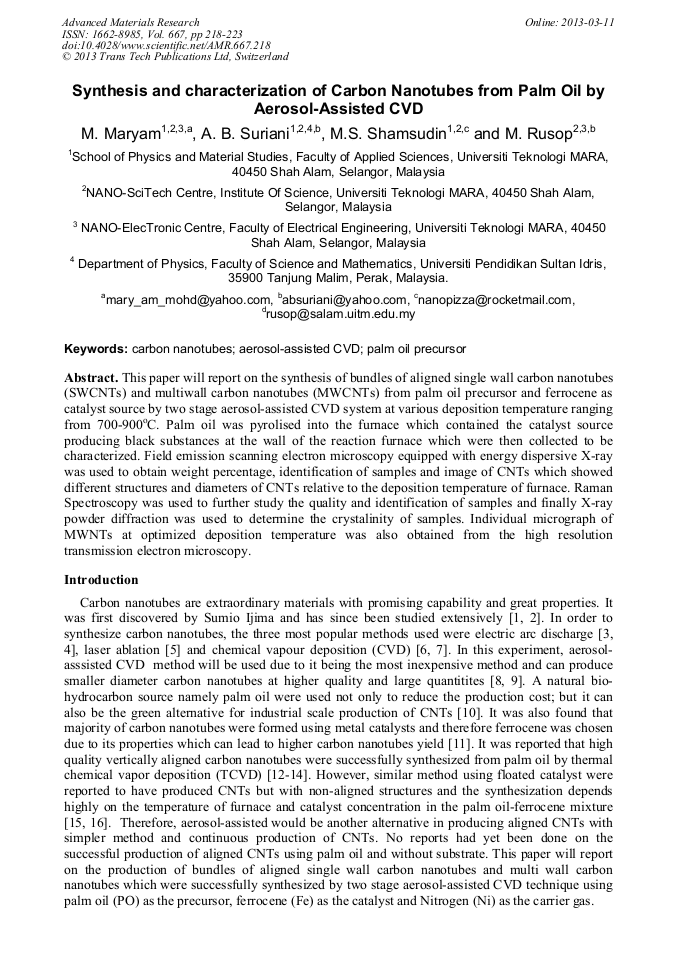

Synthesis and Characterization of Carbon Nanotubes from Palm Oil by Aerosol-Assisted CVD

Abstract:

This paper will report on the synthesis of bundles of aligned single wall carbon nanotubes (SWCNTs) and multiwall carbon nanotubes (MWCNTs) from palm oil precursor and ferrocene as catalyst source by two stage aerosol-assisted CVD system at various deposition temperature ranging from 700-900oC. Palm oil was pyrolised into the furnace which contained the catalyst source producing black substances at the wall of the reaction furnace which were then collected to be characterized. Field emission scanning electron microscopy equipped with energy dispersive X-ray was used to obtain weight percentage, identification of samples and image of CNTs which showed different structures and diameters of CNTs relative to the deposition temperature of furnace. Raman Spectroscopy was used to further study the quality and identification of samples and finally X-ray powder diffraction was used to determine the crystalinity of samples. Individual micrograph of MWNTs at optimized deposition temperature was also obtained from the high resolution transmission electron microscopy.

• Periodical: Advanced Materials Research (Volume 667)
• Pages: 218-223
• DOI: https://doi.org/10.4028/www.scientific.net/AMR.667.218
• Online since: March 2013
• Authors: M. Maryam, Suriani Abu Bakar, M.S. Shamsudin, Mohamad Rusop Mahmood
• Keywords: Aerosol-Assisted CVD, Carbon Nanotube (CN), Palm Oil Precursor

References

[1] S. Iijima, Nature (1991) 354.

[2] S. Iijima, T. Ichihashi, Nature 363 (1991) 603.

[3] T. W. Ebbesen, P. M. Ajayan, Nature 220 (1992) 358.

[4] L. Montoro, R. Lofrano, J. Rosolen, Synthesis of single-walled and multi-walled carbon nanotubes by arc-water method, Carbon 43 (2005) 200-203.

DOI: 10.1016/j.carbon.2004.08.014

[5] A. Thess, R. Lee, P. Nikolaev, P. P. H. Dai, J. Robert, C. Xu, Y. H. Lee, S. G. Kim, A. G. Rinzler, D. T. Colbert, G. E. Scuseria, D. Tomanek, J. Fischer, R. E. Smalley, Science 273 (1996) 483.

DOI: 10.1126/science.273.5274.483

[6] D. S. Bethune, C. H. Kiang, M. S. d. Vries, G. Gorman, R. Savoy, J. Velazquez, R. Beyers, Nature 363 (1993) 605.

DOI: 10.1038/363605a0

[7] M. Kumar, Y. Ando, Chemical Vapor Deposition of Carbon Nanotubes: A Review on Growth Mechanism and Mass Production, Journal of Nanoscience and Nanotechnology 10 (2010) 3739-3758.

DOI: 10.1166/jnn.2010.2939

[8] A. Darabont, P. Nemes–Incze, K. Kertésza, L. Tapasztóa, A. A. Koósa, Z. Osvátha, Z. Sárközi, Z. Vértesya, Z. E. Horvátha, L. P. Biró, Synthesis of Carbon Nanotubes by Spray Pyrolysis and their investigation by Electron Microscopy, Journal of Optoelectronics and Advanced Materials 7 (2005).

[9] Z. E. Horva´th, K. Kerte´sz, L. Peth, A. A. Koos´, L. Tapaszto´, Z. Ve´rtesy, Z. Osva´th, A. Darabont, P. Nemes-Incze, Z. S. r. zi, L. P. Biro', Inexpensive, upscalable nanotube growth methods, Current Applied Physics 6 (2006) 135–140.

DOI: 10.1016/j.cap.2005.07.026

[10] A. B. Suriani, A. A. Azira, S. F. Nik, R. M. Nor, M. Rusop, Synthesis of vertically aligned carbon nanotubes using natural palm oil as carbon precursor, Materials Letters 63 (2009) 2704–2706.

DOI: 10.1016/j.matlet.2009.09.048

[11] C. H. Kiang, M. S. Dresselhaus, R. Beyers, D. S. Bethune, Vapor-phase self-assembly of carbon nanomaterials, Chemical Physics Letters 259 (1996) 41-47.

DOI: 10.1016/0009-2614(96)00700-2

[12] S. Abu Bakar, S. Muhamad, P. S. Mohamad Saad, S. Afif Mohd Zobir, R. Md Nor, Y. Mohd Siran, S. A. M. Rejab, A. Jaril Asis, S. Tahiruddin, S. Abdullah, M. Rusop Mahmood, The Effect of Precursor Vaporization Temperature on the Growth of Vertically Aligned Carbon Nanotubes Using Palm Oil, Defect and Diffusion Forum 312-315 (2011).

DOI: 10.4028/www.scientific.net/ddf.312-315.906

[13] A. B. Suriani, R. M. Nor, M. Rusop, Vertically aligned carbon nanotubes synthesized from waste cooking palm oil, Jounal of ceramic Society of Japan 118 (2010) 963-966.

DOI: 10.2109/jcersj2.118.963

[14] S. Abu Bakar, S. Muhamad, P. S. Mohamad Saad, R. Md Nor, Y. Mohd Siran, S. A. M. Rejab, A. Jaril Asis, S. Tahiruddin, S. Abdullah, M. Rusop Mahmood, Effect of Temperature on the Growth of Vertically Aligned Carbon Nanotubes from Palm Oil, Defect and Diffusion Forum 312-315 (2011).

DOI: 10.4028/www.scientific.net/ddf.312-315.900

[15] M. S. Azmina, A. B. Suriani, A. N. Falina, M. Salina, J. Rosly, M. Rusop, Preparation of Palm Oil Based Carbon Nanotubes at Various Ferrocene Concentration, Advanced Materials Research 364 (2011) 408-411.

DOI: 10.4028/www.scientific.net/amr.364.408

[16] M. S. Azmina, A. B. Suriani, A. N. Falina, M. Salina, M. Rusop, Temperature Effects on the Production of Carbon Nanotubes from Palm Oil by Thermal Chemical Vapor Deposition Method, Advanced Materials Research 364 (2011) 359-362.

DOI: 10.4028/www.scientific.net/amr.364.359
