Characterization of Oxide Layer Formed on NiTi Alloy by Anodic Oxidation in a Molybdate Electrolyte

Xiang Dong Su; Li He; Yuan Fa Ding; Jian Huang; Yong Li; Wei Chang Hao

doi:10.4028/www.scientific.net/AMR.773.639

Paper Titles

Interconnecting Silicon Posts by Pyrolyzing Diffraction-Induced SU-8 Fibers
p.617

Quantum Confinement Stark Effect of Different Gainnas Quantum Well Structures
p.622

The Feasibility of Fluorine Ammonium Compounds for Sandstone Formation Matrix Acidizing: Laboratory Study and Discussion
p.628

Study on the Promoting Effect of Additive on the Calcium-Based Sulfur-Fixing Agent
p.634

Characterization of Oxide Layer Formed on NiTi Alloy by Anodic Oxidation in a Molybdate Electrolyte
p.639

Study on the Mechanism of SCR NO by Mn-Ce/CNTs Catalyst at Low-Temperature
p.645

Symmetrical Dynamic Expansion Issues of Mode III Interface Crack
p.649

Preparation and Characterization of UV Curable Polyurethane Acrylate Adhesives
p.654

P-Doped SiO₂ Proton Conducting Films for Low Voltage Thin Film Transistors
p.660

HomeAdvanced Materials ResearchAdvanced Materials Research Vol. 773Characterization of Oxide Layer Formed on NiTi...

Characterization of Oxide Layer Formed on NiTi Alloy by Anodic Oxidation in a Molybdate Electrolyte

Abstract:

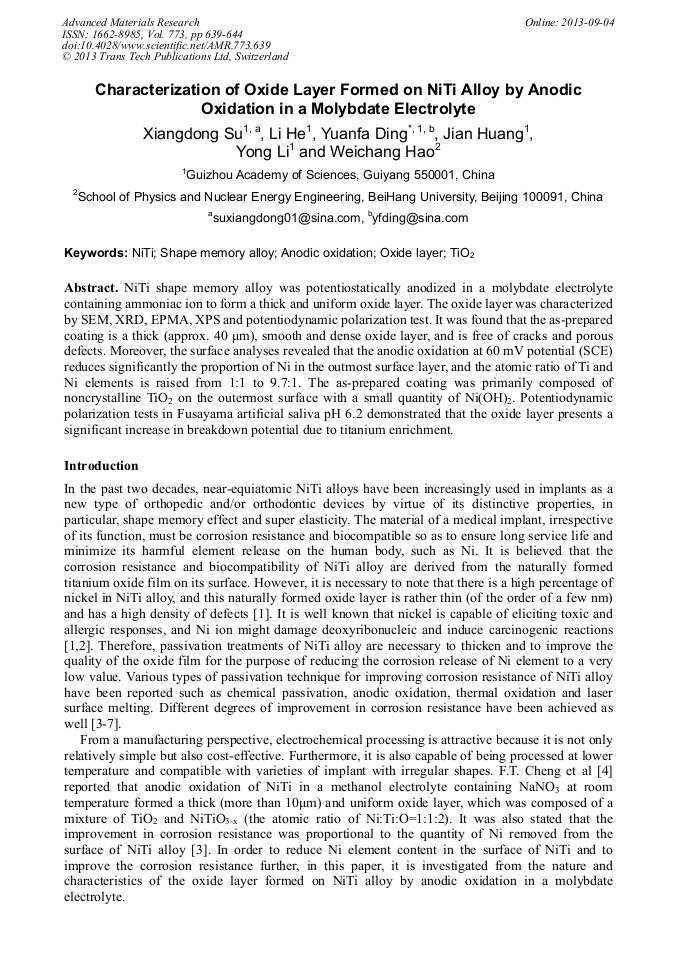

NiTi shape memory alloy was potentiostatically anodized in a molybdate electrolyte containing ammoniac ion to form a thick and uniform oxide layer. The oxide layer was characterized by SEM, XRD, EPMA, XPS and potentiodynamic polarization test. It was found that the as-prepared coating is a thick (approx. 40 μm), smooth and dense oxide layer, and is free of cracks and porous defects. Moreover, the surface analyses revealed that the anodic oxidation at 60 mV potential (SCE) reduces significantly the proportion of Ni in the outmost surface layer, and the atomic ratio of Ti and Ni elements is raised from 1:1 to 9.7:1. The as-prepared coating was primarily composed of noncrystalline TiO₂ on the outermost surface with a small quantity of Ni (OH)₂. Potentiodynamic polarization tests in Fusayama artificial saliva pH 6.2 demonstrated that the oxide layer presents a significant increase in breakdown potential due to titanium enrichment.

You might also be interested in these eBooks

Industrial Technologies for Sustainable Development

View Preview

Info:

Periodical:

Advanced Materials Research (Volume 773)

Pages:

639-644

DOI:

https://doi.org/10.4028/www.scientific.net/AMR.773.639

Citation:

Cite this paper

Online since:

September 2013

Authors:

Xiang Dong Su, Li He, Yuan Fa Ding, Jian Huang, Yong Li, Wei Chang Hao

Keywords:

Anodic Oxidation, NiTi, Oxide Layer, Shape Memory Alloy (SMA), TiO₂

Export:

RIS, BibTeX

Price:

Permissions CCC:

Request Permissions

Permissions PLS:

Request Permissions

Сopyright:

Citation:

References

[1] S.A. Shabalovskaya and J.W. Anderegg: Journal of Vacuum Science & Technology A Vol. 13, (1992), p.2624.

Google Scholar

[2] N. Shevchenko, M. -T. Pham and M.F. Maitz: Applied Surface Science Vol. 235 (2004), p.126.

Google Scholar

[3] B. O'Brien, W.M. Carroll and M.J. Kelly: Biomaterials Vol. 23 (2002), p.1739.

Google Scholar

[4] F.T. Cheng, P. Shi and H.C. Man: Materials Letters Vol. 59 (2005), p.1516.

Google Scholar

[5] A. Michiardi, C. Aparicioj and A. Planell: Journal of Biomedical Material Research (party B) Vol. 77B (2006), p.249.

Google Scholar

[6] Z.D. Cui, H.C. Man and X.J. Yang: Surface & Coating Technology Vol. 192 (2005), p.347.

Google Scholar

[7] Her-Hsiung Huang, Yu-Hui Chiu, Tzu-Hsin Lee, Shih-Ching Wu, Hui-Wen Yang, Kuo-Hsiung Su and Chii-Chih Hsu: Biomaterials Vol. 24 (2003), p.3585.

Google Scholar

[8] F.T. Cheng, P. Shi and H.C. Man: Surface & Coatings Technology Vol. 187 (2004), p.26.

Google Scholar

[9] David A. Armitage and David M. Grant: Materials Science & Engineering A Vol. 349 (2003), p.89.

Google Scholar

[10] S.M. Green, D.M. Grant and J.V. Wood: Materials Science & Engineering A Vol. 224 (1997), p.21.

Google Scholar
