HomeAdvanced Materials ResearchAdvanced Materials Research Vol. 789Preliminary Observation on Macro Texture of Nb3Sn...

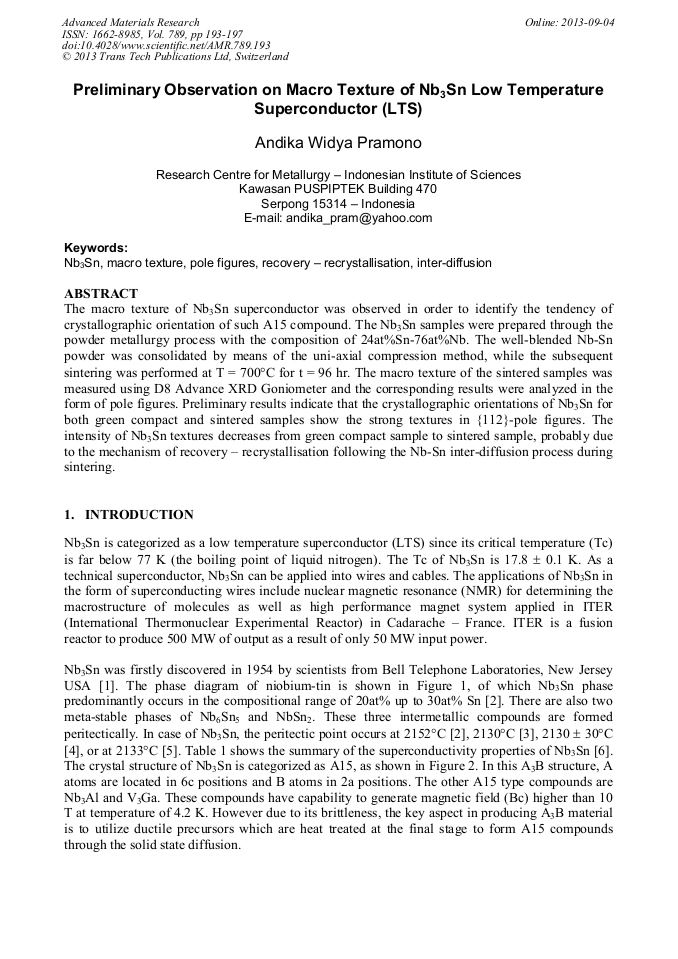

Preliminary Observation on Macro Texture of Nb₃Sn Low Temperature Superconductor (LTS)

Abstract:

The macro texture of Nb₃Sn superconductor was observed in order to identify the tendency of crystallographic orientation of such A15 compound. The Nb₃Sn samples were prepared through the powder metallurgy process with the composition of 24at%Sn-76at%Nb. The well-blended Nb-Sn powder was consolidated by means of the uni-axial compression method, while the subsequent sintering was performed at T = 700°C for t = 96 hr. The macro texture of the sintered samples was measured using D8 Advance XRD Goniometer and the corresponding results were analyzed in the form of pole figures. Preliminary results indicate that the crystallographic orientations of Nb₃Sn for both green compact and sintered samples show the strong textures in {112}-pole figures. The intensity of Nb₃Sn textures decreases from green compact sample to sintered sample, probably due to the mechanism of recovery recrystallisation following the Nb-Sn inter-diffusion process during sintering.

You might also be interested in these eBooks

View Preview

Advances in Materials, Processing and Manufacturing

View Preview

Info:

Periodical:

Advanced Materials Research (Volume 789)

Pages:

193-197

DOI:

https://doi.org/10.4028/www.scientific.net/AMR.789.193

Citation:

Cite this paper

Online since:

September 2013

Authors:

Andika Widya Pramono

Keywords:

Inter-Diffusion, Macro Texture, Nb₃Sn, Pole Figures, Recovery – Recrystallisation

Export:

RIS, BibTeX

Price:

Permissions CCC:

Request Permissions

Permissions PLS:

Request Permissions

Сopyright:

Citation:

References

[1] B. T. Matthias, T. H. Geballe, S. Geller, and E. Corenzwit: Superconductivity of Nb3Sn, Physical Review, Vol. 95 No. 6, 1954, p.1435.

Google Scholar

[2] H. Okamoto: Nb-Sn (Niobium-Tin), Journal of Phase Equilibria, Vol. 24 No. 4, 2003, p.380.

DOI: 10.1361/105497103770330488

Google Scholar

[3] A. A. Matsakova and B. G. Lazarev: Phase composition diagram for niobium-tin system, Fiz. Metal. Metalloved, Vol. 35 No. 1, 1973, p.148 – 156.

Google Scholar

[4] J. P. Charlesworth, I. Macphail, and P. E. Madsen: Experimental work on the niobium-tin constitution diagram and related studies, Journal of Materials Science, Vol. 5 No. 7, 1970, p.580 – 603.

DOI: 10.1007/bf00554367

Google Scholar

[5] L. J. Vieland: High-temperature phase equilibrium and superconductivity in the system niobium tin, RCA Review, Vol. 25, 1964, p.366 – 378.

Google Scholar

[6] J. E. Kunzler, E. Buehler, F. S. L. Hsu, and J. H. Wernick: Superconductivity in Nb3Sn at High Current Density in a Magnetic Field of 88 kgauss, Physical Review Letters, Vol. 6 No. 3, 1961, p.89 – 91.

DOI: 10.1103/physrevlett.6.89

Google Scholar

[7] Firdiyono, F.: The Final Cumulative Report of Competitive Research Activity – Fiscal Year 2011: The Manufacturing of Nb3Sn Superconducting Wires through Powder-in-Tube Process for the Application of Magnetic Solenoid, Research Centre for Metallurgy – LIPI (Pusat Penelitian Metalurgi – LIPI), (2011).

DOI: 10.30556/jtmb.vol16.no1.2020.1064

Google Scholar
