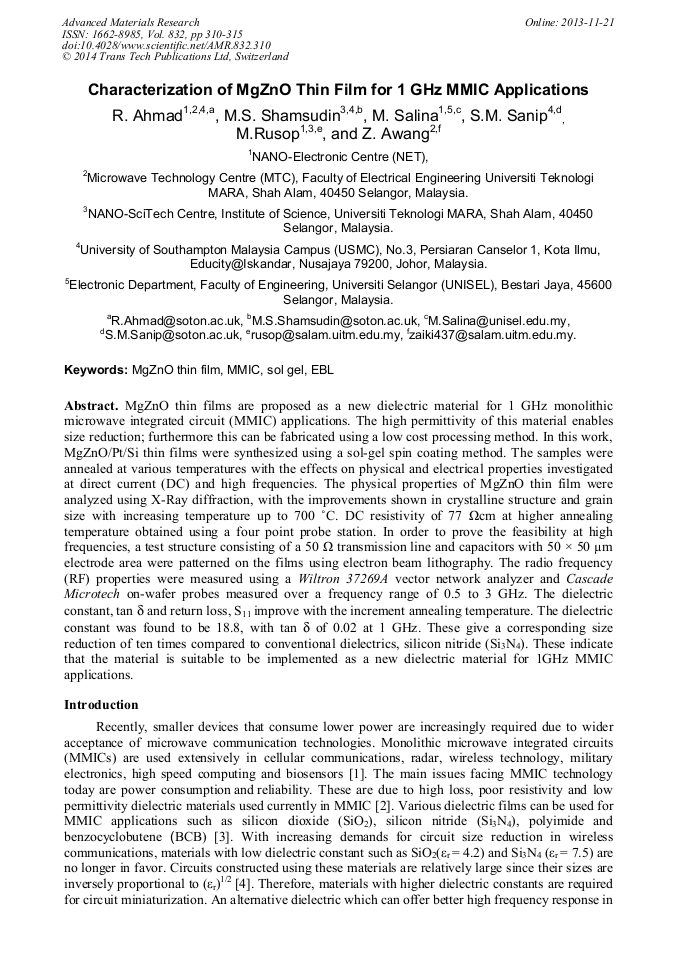

Characterization of MgZnO Thin Film for 1 GHz MMIC Applications

Abstract:

MgZnO thin films are proposed as a new dielectric material for 1 GHz monolithic microwave integrated circuit (MMIC) applications. The high permittivity of this material enables size reduction; furthermore this can be fabricated using a low cost processing method. In this work, MgZnO/Pt/Si thin films were synthesized using a sol-gel spin coating method. The samples were annealed at various temperatures with the effects on physical and electrical properties investigated at direct current (DC) and high frequencies. The physical properties of MgZnO thin film were analyzed using X-Ray diffraction, with the improvements shown in crystalline structure and grain size with increasing temperature up to 700 °C. DC resistivity of 77 Ωcm at higher annealing temperature obtained using a four point probe station. In order to prove the feasibility at high frequencies, a test structure consisting of a 50 Ω transmission line and capacitors with 50 × 50 μm electrode area were patterned on the films using electron beam lithography. The radio frequency (RF) properties were measured using a Wiltron 37269A vector network analyzer and Cascade Microtech on-wafer probes measured over a frequency range of 0.5 to 3 GHz. The dielectric constant, loss tangent and return loss, S₁₁ improve with the increment annealing temperature. The dielectric constant was found to be 18.8, with loss tangent of 0.02 at 1 GHz. These give a corresponding size reduction of ten times compared to conventional dielectrics, silicon nitride (Si₃N₄). These indicate that the material is suitable to be implemented as a new dielectric material for 1GHz MMIC applications.

• Periodical: Advanced Materials Research (Volume 832)
• Pages: 310-315
• DOI: https://doi.org/10.4028/www.scientific.net/AMR.832.310
• Online since: November 2013
• Authors: R. Ahmad, M.S. Shamsudin, M. Salina, S.M. Sanip, M. Rusop, Z. Awang
• Keywords: EBL, MgZnO Thin Film, MMIC, Sol Gel

References

[1] C. Nguyen, Analysis methods for RF, microwave and millimeter-wave planar transmission line structure, John Wiley and Sons, New York, 2000.

[2] A. Moussavou, S. Deputier, V. Bouquet, A. Perrin, R. Saeleau, K. Mahdjoubi, Structural characteristics of KTa0.5Nb0.5O3 ferroelectric thin films and application to planar transmission lines, Ferroelectr. Lett. 362 (2008) 137-144.

DOI: 10.1080/00150190802007143

[3] G.D. Wilk, R. M. Wallace, J. M. Anthony, High-k gate dielectrics: Current status and material properties considerations, J. App. Phys. 89 (2001) 5243-5273.

DOI: 10.1063/1.1361065

[4] V. Laur, R.Costes, F. Houndonougbo, V. Madrangers, D. Cros, M. pate, J.P. Ganne, Microwave study of tunable planar capacitors using Mn-doped BST ceramics, IEEE Trans. on Ultrason. Ferroelect. Freq. Contr. 56 (2009) 2363-2369.

DOI: 10.1109/tuffc.2009.1324

[5] K. Remashan, Y.S. Choi, S.J. Park, J.H. Jang, High performance MOCVD-Grown ZnO thin-film transistor with a thin MgZnO layer at channel/gate insulator interface, J. Electomech. Soc. 157 (2010) 1121-1126.

DOI: 10.1149/1.3502605

[6] J. Kong, L. Li, Z. Yang and J. Liu, Ultraviolet light emissions in MgZnO/ZnO double heterojunction diodes by molecular beam epitaxy, J. Vac. Sci. Technol. B 28 (2010).

DOI: 10.1116/1.3374436

[7] S.R. Meher K.P. Biju, M.K. Jain, Effect of post-annealing on the band gap of sol-gel prepared nano-crytsalline MgZnO thin films, J. Sol-Gel Sci. Technol. 52 (2009) 228-234.

DOI: 10.1007/s10971-009-2032-0

[8] J. Liang et al., Annealing effect on electrical properties of high-k MgZnO on silicon, Semicon. Sci. Technol. 20 (2005) L15-L19.

DOI: 10.1088/0268-1242/20/5/l01

[9] R. Ahmad, M. Salina, M. H. Mamat, A. Awang Teh, M. Kara, M. Rusop and Z. Awang, Aging effects on physical and electrical properties of nano-structured MgZnO thin films for carbon nanotube applications, J. Nanosci. Nanotechnol., 11 (2011) 8153-8157.

DOI: 10.1166/jnn.2012.4524

[10] B. K. Sonawane, M.P. Phole, D.S. Patel, Structural, optical and electrical properties of post annealed Mg doped ZnO films for optoelectronic applications, Physic B, 405(2009) 1603-1607.

[11] J. Liang, W.H. Zhen, L.Y. Feng, Q.D. Jiang, C.N. Bo and X.T. Ning, Applications of cubic MgZnO thin films in MIS structure, Chin. Phy. Lett. 21 (2004) 1135-1139.

DOI: 10.1088/0256-307x/21/6/044

[12] W. Liu, B. Yao, Y. Li, B. Li, C. Zheng, B. Zhang, C. Shan, Z. Zhnag, J. Zhang and D. Shen, Annealing temperature dependent electrical and optical properties of ZnO and MgZnO films in hydrogen ambient, App. Surface Sc., 255 (2009) 6745-6749.

DOI: 10.1016/j.apsusc.2009.03.001

[13] Y. Kobayashi, T. Miyoshi, Y. Suzuki, K. Yamanouchi, and Y. Konishi, Passive elements, components and devices, in Microwave Integrated Circuits, ed. Y. Konishi, Marcel Dekker, Inc., New York, 1991.
