Analyses of Flow Field and Heat Exchange about Limestone Grain in the Preheater

Abstract:

According to the structural features of the vertical preheater, the 2-dimention finite element models are set up for the section of the preheater with different arrangement and diameters for the limestone grains. The situation of gas-solid two-phase flow between the limestone grains and the hot air in the preheater is simulated by the discrete particle model. Based on the heat transfer theory, the convection heat transfer coefficient between the limestone grains and the hot air is deduced by means of the experimental correlation of the air cross-flow tube bundles. On the simulation of the 2-dimention finite element model of the vertical preheater based on the FLOTRAN module of ANSYS, the temperature field, pressure field and velocity field of the limestone grains are obtained. The results show that there is a little change of convection heat transfer coefficient by varying the arrangement of limestone grains. The convection heat transfer coefficient is improved by employing the limestone grains with little diameter. The larger the gap between the grains is, the larger the convection heat transfer coefficient is.

You might also be interested in these eBooks

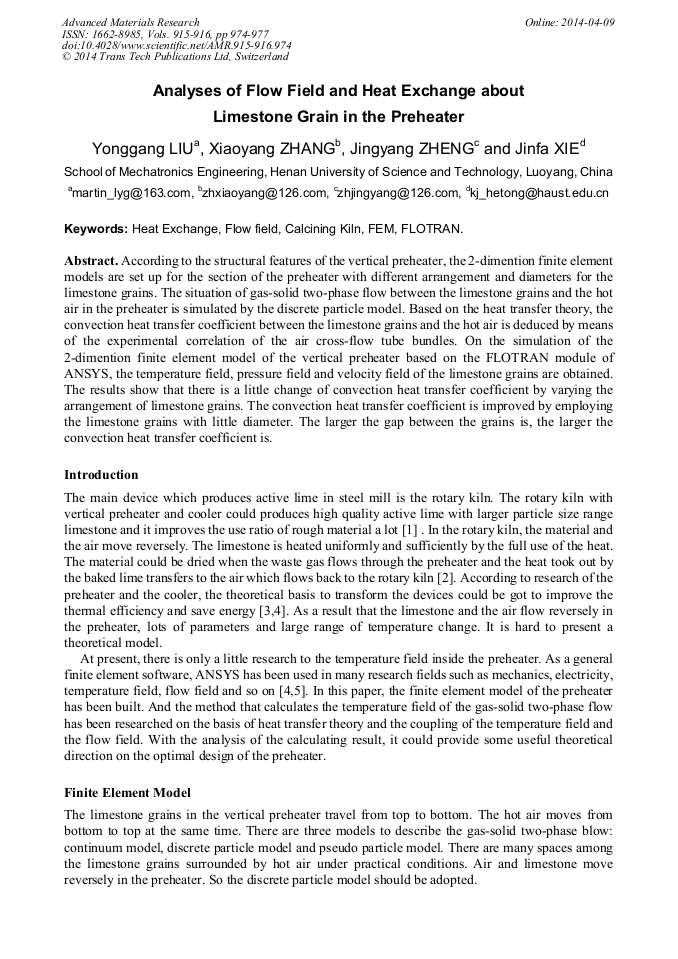

View Preview

Info:

Periodical:

Advanced Materials Research (Volumes 915-916)

Pages:

974-977

DOI:

https://doi.org/10.4028/www.scientific.net/AMR.915-916.974

Citation:

Cite this paper

Online since:

April 2014

Authors:

Yong Gang Liu*, Xiao Yang Zhang, Jing Yang Zheng, Jin Fa Xie

Keywords:

Calcining Kiln, Finite Element Method (FEM), FLOTRAN, Flow Field, Heat Exchange

Export:

RIS, BibTeX

Price:

Permissions CCC:

Request Permissions

Permissions PLS:

Request Permissions

Сopyright:

Citation:

* - Corresponding Author

References

[1] Y. ZH DUAN. Discussion on the Key Parameter Calculation Method of Active Lime Rotary Kiln. Minting and Processing Equipment. 2008, (19): 103-105.

Google Scholar

[2] K. B ZHANG. Discussion to Energy Saving and Consumption Reduction of Active Lime Rotary Kiln and Resource Synthetic Utilization. Minting and Processing Equipment. 2007 , (10): 152-154.

Google Scholar

[3] W WANG，Y. CH LI. Progress of the Simulation of Particle Fluid Two Phase Flow. Progress in Chemistry. 2000, 12(2): 208-217.

Google Scholar

[4] R. O CARVEL, A. N BEARD, P. W JOWITT. The influence of tunnel geometry and ventilation on the heat release rate of fire. Fire Technology, 2004, 40(1): 5-26.

DOI: 10.1023/b:fire.0000003313.97677.c5

Google Scholar

[5] X. T LI, M. T WANG, F. SH Du. FEA on Hot Strip Continuous Rolling Process with Multi-field Coupling. China Mechanical Engeneering. 2006, 17(18): 1955-(1958).

Google Scholar
