Modification of Epoxy Resin with Silicone for Electronic Encapsulation Application

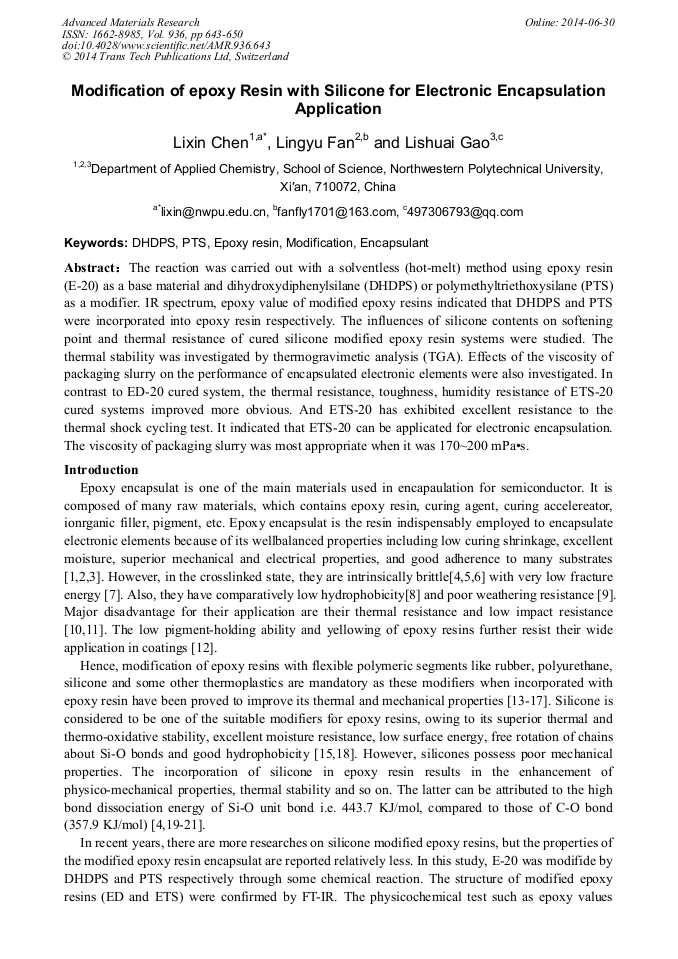

Article Preview

Abstract:

The reaction was carried out with a solventless (hot-melt) method using epoxy resin (E-20) as a base material and dihydroxydiphenylsilane (DHDPS) or polymethyltriethoxysilane (PTS) as a modifier. IR spectrum, epoxy value of modified epoxy resins indicated that DHDPS and PTS were incorporated into epoxy resin respectively. The influences of silicone contents on softening point and thermal resistance of cured silicone modified epoxy resin systems were studied. The thermal stability was investigated by thermogravimetic analysis (TGA). Effects of the viscosity of packaging slurry on the performance of encapsulated electronic elements were also investigated. In contrast to ED-20 cured system, the thermal resistance, toughness, humidity resistance of ETS-20 cured systems improved more obvious. And ETS-20 has exhibited excellent resistance to the thermal shock cycling test. It indicated that ETS-20 can be applicated for electronic encapsulation. The viscosity of packaging slurry was most appropriate when it was 170~200 mPas.

You might also be interested in these eBooks

Materials Science and Engineering Technology

Info:

Periodical:

Advanced Materials Research (Volume 936)

Pages:

643-650

DOI:

https://doi.org/10.4028/www.scientific.net/AMR.936.643

Citation:

Cite this paper

Online since:

June 2014

Authors:

Li Xin Chen*, Ling Yu Fan, Li Shuai Gao

Keywords:

DHDPS, Encapsulant, Epoxy Resin (ER), Modification, PTS

Export:

RIS, BibTeX

Price:

Permissions CCC:

Request Permissions

Permissions PLS:

Request Permissions

Сopyright:

© 2014 Trans Tech Publications Ltd. All Rights Reserved

Share:

Citation:

* - Corresponding Author

[1] P. Khurana, S. Aggarwal, A.K. Narula, et al. Studies on the curing and thermal behaviour of DGEBA in the presence of bis (4-carboxyphenyl) dimethyl silane. Polym Int. 52 (2003) 908-917.

DOI: 10.1002/pi.1128

[2] E. Sharmin, L. Imo, S.M. Ashraf, et al. Acrylic-melamine modified DGEBA-epoxy coatings and their anticorrosive behavior. Prog Org Coat. 50 (2004) 47-54.

DOI: 10.1016/j.porgcoat.2003.10.003

[3] T.H. Ho and C.S. Wang. Modification of epoxy resin with siloxane containing phenol aralkyl epoxy resin for electronic encapsulation application. Eur Polym J. 37 (2001) 267-274.

DOI: 10.1016/s0014-3057(00)00115-4

[4] S.S. Hou, Y.P. Chung, C.K. Chan, et al. Function and performance of silicone copolymer. Part IV. Curing behavior and characterization of epoxy-siloxane copolymers blended with diglycidyl ether of bisphenol-A. Polymer. 41 (2000) 3263-3272.

DOI: 10.1016/s0032-3861(99)00525-x

[5] S.A. Kumar and T.S.N.S. Narayana. Thermal properties of siliconized epoxy interpenetrating coatings. Prog Org Coat. 45 (2002) 323-330.

DOI: 10.1016/s0300-9440(02)00062-0

[6] S. Bhuniya and B. Adhikari. Toughening of epoxy resins by hydroxy-terminated, silicon-modified polyurethane oligomers. J Appl Polym Sci. 90 (2003) 1497-1506.

DOI: 10.1002/app.12666

[7] S. Ahmad, S.M. Ashraf, A. Hasnat, et al. Studies on epoxidised oil and its blend with polystyrene and poly(methyl methacrylate). Indian J Chem Technol. 8 (2001) 176-180.

[8] T.V.T. Velan and I.M. Bilal. Aliphatic amine cured PDMS-epoxy interpenetrating network system for high performance engineering applications—Development and characterization. Bull Mater Sci. 23 (2000) 425-429.

DOI: 10.1007/bf02708394

[9] W.C. Shih and M.M.A. Chen-Chi. Tetrafunctional aliphatic epoxy I. Synthesis and characterization. J Appl Polym Sci. 69 (1998) 51-58.

DOI: 10.1002/(sici)1097-4628(19980705)69:1<51::aid-app7>3.0.co;2-l

[10] A.A. Kumar, M. Alagar and R.M.V.G.K. Rao. Studies on thermal and morphological behavior of siliconized epoxy bismaleimide matrices. J Appl Polym Sci. 81 (2001) 2330-2346.

DOI: 10.1002/app.1674

[11] M. Alagar, A.A. Kumar, K.P.O. Mahesh, et al. Studies on thermal and morphological characteristics of E-glass/Kevlar 49 reinforced siliconized epoxy composites. Eur Polym J. 36 (2000) 2449-2454.

DOI: 10.1016/s0014-3057(00)00038-0

[12] S. Ahmad, S.M. Ashraf, S.N. Hassan, et al. Synthesis, characterization, and performance evaluation of hard, anticorrosive coating materials derived from diglycidyl ether of bisphenol A acrylates and methacrylates. J Appl Polym Sci. 95 (2005).

DOI: 10.1002/app.21202

[13] P.H. Sung and C.Y. Lin. Polysiloxane-modified epoxy polymer networks – I. Graft interpenetrating polymeric networks. Eur Polym J. 33 (1997) 903-906.

DOI: 10.1016/s0014-3057(96)00214-5

[14] H. Deligoz, T. Yalcinyuva and S. Ozgumus. A noval type of Sicontaining poly (urethane- imide)s: synthesis, chracterization and electrical properties. Eur Polym J. 41 (2005) 771-781.

[15] U. Lauter, S.W. Kantor, K. Schmidt-Rohr, et al. Vinylsubstituted silphenylene siloxane copolymers: noval high temperature elastomers. Macromolecules. 32 (1999) 3426-3431.

DOI: 10.1021/ma981292f

[16] P.R. Dvornic, H.J. Perpall, P.C. Uden, et al. Exactly alternating silarylene-siloxane polymers. VII. Thermal stability and degradation behavior of p-silphenylene-siloxane polymers with methyl, vinyl, hydrido, and/or fluoroalkyl side groups. Polym Sci Part A Polym Chem. 27 (1989).

DOI: 10.1002/pola.1989.080271027

[17] A.A. Kumar, M. Alagar and R.M.V.G.K. Rao. Preparation and characterization of siliconized epoxy/bismaleimide (N, N-bismaleimido-4, 4-diphenyl methane) intercrosslinked matrices for engineering applications. J Appl Polym Sci. 81 (2001) 38-46.

DOI: 10.1002/app.1410

[18] J. Chojnowski, M. Cypryk, W. Fortuniak, et al. Controlled synthesis of vinylmethylsiloxane- dimethylsiloxane gradient, block and alternate copolymers by anionic ROP of cyclotrisiloxanes. Polymer. 43 (2002) 1993-(2001).

DOI: 10.1016/s0032-3861(01)00793-5

[19] S. Ahmad, A.P. Gupta, E. Sharmin, et al. Synthesis, characterization and development of high performance siloxane-modified epoxy paints. Prog Org Coat. 54 (2005) 248-255.

DOI: 10.1016/j.porgcoat.2005.06.013

[20] S.T. Lin and S.K. Huang. Preparation and structural determination of siloxane-modified sulfone-containing epoxy resin. J Polym Sci Part A: Polym Chem. 34 (1996) 869-884.

DOI: 10.1002/(sici)1099-0518(19960415)34:5<869::aid-pola16>3.0.co;2-g

[21] G.H. Hsiue, W.J. Wang and F.C. Chang. Synthesis, chracterization, thermal and flame- retardant properties of silicone-based epoxy resin. J Appl Polym Sci. 73 (1999) 1231-1238.

DOI: 10.1002/(sici)1097-4628(19990815)73:7<1231::aid-app17>3.0.co;2-u

[22] C.L. Homrighausen and T.M. Keller. Synthesis and chracterization of a silarylene-siloxane- diacetylene polymer and its conversion to thermosetting plastic. Polymer. 43 (2002) 2619-2623.

DOI: 10.1016/s0032-3861(02)00068-x
