Physical Properties of Thin Films of GaAs and AlxGa1-xAs Grown by Solid-Arsenic-Based MOCVD

Roberto Castillo-Ojeda; Joel Díaz-Reyes; Miguel Galván-Arellano; Ramon Peña-Sierra

doi:10.4028/www.scientific.net/AMR.976.25

Paper Titles

Synthesis of New Hexakis-Heterocyclic Compounds and their Use in the Formation and Stabilization of Au and Ag Nanoparticles
p.3

Corrosion Resistance of Hot Dip Aluminized Copper Alloys
p.8

Effect of Mechanical Vibration during the Solidification Process of an Aluminium Alloy A356
p.14

Immobilization of SA-α-2,6-Gal Receptors Related to Influenza on Magnetic Nanoparticles Coated with Chitosan
p.19

Physical Properties of Thin Films of GaAs and Al_xGa_1-xAs Grown by Solid-Arsenic-Based MOCVD
p.25

Solid Solutions Study of BaTiO₃ Doped on B Site by Electronic Compensation
p.30

Structural and Textural Study of Highly Porous Carbon Nanospheres
p.36

Study of the Effect of Synthesis Method on Obtaining Ca_0.3La_0.7MnO₃
p.41

Synthesis and Characterization of Azobenzene-Containing Polydiacetylene Polymers
p.46

HomeAdvanced Materials ResearchAdvanced Materials Research Vol. 976Physical Properties of Thin Films of GaAs and...

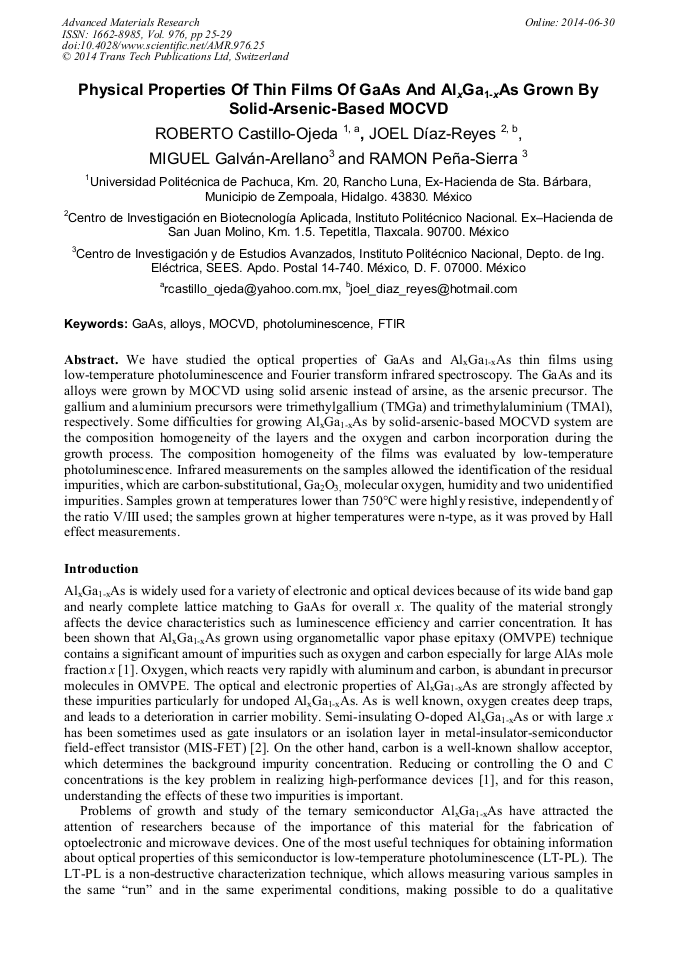

Physical Properties of Thin Films of GaAs and Al_xGa_1-xAs Grown by Solid-Arsenic-Based MOCVD

Abstract:

We have studied the optical properties of GaAs and Al_xGa_1-xAs thin films using low-temperature photoluminescence and Fourier transform infrared spectroscopy. The GaAs and its alloys were grown by MOCVD using solid arsenic instead of arsine, as the arsenic precursor. The gallium and aluminium precursors were trimethylgallium (TMGa) and trimethylaluminium (TMAl), respectively. Some difficulties for growing Al_xGa_1-xAs by solid-arsenic-based MOCVD system are the composition homogeneity of the layers and the oxygen and carbon incorporation during the growth process. The composition homogeneity of the films was evaluated by low-temperature photoluminescence. Infrared measurements on the samples allowed the identification of the residual impurities, which are carbon-substitutional, Ga₂O_3,molecular oxygen, humidity and two unidentified impurities. Samples grown at temperatures lower than 750°C were highly resistive, independently of the ratio V/III used; the samples grown at higher temperatures were n-type, as it was proved by Hall effect measurements.
