Analysis of the Design of Filter Cartridge Covers for Respirators against Dust

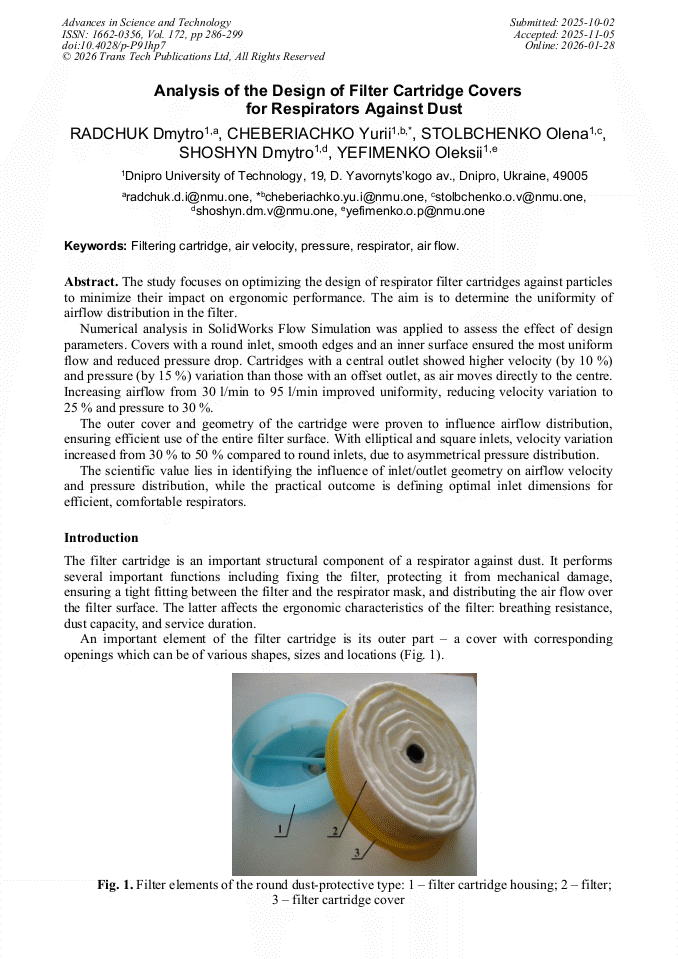

Article Preview

Abstract:

The study focuses on optimizing the design of respirator filter cartridges against particles to minimize their impact on ergonomic performance. The aim is to determine the uniformity of airflow distribution in the filter. Numerical analysis in SolidWorks Flow Simulation was applied to assess the effect of design parameters. Covers with a round inlet, smooth edges and an inner surface ensured the most uniform flow and reduced pressure drop. Cartridges with a central outlet showed higher velocity (by 10 %) and pressure (by 15 %) variation than those with an offset outlet, as air moves directly to the centre. Increasing airflow from 30 l/min to 95 l/min improved uniformity, reducing velocity variation to 25 % and pressure to 30 %. The outer cover and geometry of the cartridge were proven to influence airflow distribution, ensuring efficient use of the entire filter surface. With elliptical and square inlets, velocity variation increased from 30 % to 50 % compared to round inlets, due to asymmetrical pressure distribution. The scientific value lies in identifying the influence of inlet/outlet geometry on airflow velocity and pressure distribution, while the practical outcome is defining optimal inlet dimensions for efficient, comfortable respirators.

You might also be interested in these eBooks
International Conference: Challenges of Ensuring Ukraine's Mineral Resources in the Context of Post-War Reconstruction (CEUMR) View Preview

Info:

Periodical:

Advances in Science and Technology (Volume 172)

Pages:

286-299

DOI:

https://doi.org/10.4028/p-P91hp7

Citation:

Cite this paper

Online since:

January 2026

Authors:

Dmitro Radchuk, Yurii Cheberiachko*, Olena Stolbchenko, Dmytro Shoshyn, Oleksii Yefimenko

Keywords:

Air Flow, Air Velocity, Filtering Cartridge, Pressure, Respirator

Export:

RIS, BibTeX

Price:

Permissions CCC:

Request Permissions

Permissions PLS:

Request Permissions

Сopyright:

© 2026 Trans Tech Publications Ltd. All Rights Reserved

Share:

Citation:

* - Corresponding Author

References

[1] S.I. Cheberiachko, V.Yu. Frundin, Yu.I. Cheberiachko, D.I. Radchuk, Doslidzhennia efektyvnosti konstruktsii filtruvalnykh korobok [Investigation of the efficiency of filter box designs], Naukovi Visti NTU "KPI". 2 (2017) 114–118.

DOI: 10.20535/1810-0546.2017.2.99551

Google Scholar

[2] H. Hu, S. Ma, Y. Wang, H. Ma, Structural Optimization and Airflow Uniformity Evaluation of Bag Filter Based on Different Diversion Schemes, Applied Sciences. 15(8) (2025) 4174.

DOI: 10.3390/app15084174

Google Scholar

[3] C. Wang, Y. Pei, Z. Mu, L. Fan, J. Kong, G. Tian, S. Miao, X. Meng, H. Qiu, Simulation Analysis of 3-D Airflow and Temperature Uniformity of Paddy in a Laboratory Drying Oven, Foods. 13(21) (2024) 3466.

DOI: 10.3390/foods13213466

Google Scholar

[4] G. Yang, X. Yang, C. Li, X. Wei, Z. Lu, C.A. Zhang, Q. Wang, X. Wu, Numerical study on the uniform distribution of flow field of airflow dryer, Heliyon. 10(8) (2024) e29439.

DOI: 10.1016/j.heliyon.2024.e29439

Google Scholar

[5] C. Yang, H. Zhang, D. Yang, D. Lao, C. Yang, Casing wall static pressure distribution behavior in a centrifugal compressor with asymmetric inlet/outlet structures, Proceedings of the Institution of Mechanical Engineers, Part A: Journal of Power and Energy. 233(1) (2018) 37-51.

DOI: 10.1177/0957650918774934

Google Scholar

[6] M. Wang, H. Zhang, W. Gong, Research on airflow uniformity of marine selective catalytic reduction reverse blow system, The Journal of Engineering, 2019(23) (2019) 9083-9087.

DOI: 10.1049/joe.2018.9190

Google Scholar

[7] W. Yuan, C. Ji, Z. Liu, C. Jin, Y. Feng, Influencing Factors of the Distribution Accuracy and the Optimal Parameters of a Pneumatic Fertilization Distributor in a Fertilizer Applicator, Agronomy. 12(9) (2022) 2222.

DOI: 10.3390/agronomy12092222

Google Scholar

[8] H.-H. Lin, J.-H. Cheng, Application of the Symmetric Model to the Design Optimization of Fan Outlet Grills, Symmetry. 11(8) (2019) 959.

DOI: 10.3390/sym11080959

Google Scholar

[9] N.A. Mortensen, F. Okkels, H. Bruus, Reexamination of Hagen-Poiseuille flow: Shape dependence of the hydraulic resistance in microchannels, Phys. Rev. E. 71(5) (2005) 057301.

DOI: 10.1103/PhysRevE.71.057301

Google Scholar

[10] S. Kansal, K.K. Waghe, Performance analysis of elliptical cross sectioned bends of HVAC duct for less pressure drop, IJTRE. 1(10) (2014) 1142-1145.

Google Scholar

[11] S. Pirozzoli, On turbulent friction in straight ducts with complex cross-section: the wall law and the hydraulic diameter. Journal of Fluid Mechanics. 846 (2018) R1.

DOI: 10.1017/jfm.2018.303

Google Scholar

[12] A. Sharma, N. Sen, K.K. Singh, Axial dispersion in laminar flow through a pipe with single and multiple twisted tape inserts: a CFD study, Chemical Engineering Communications. (2025) 1-22.

DOI: 10.1080/00986445.2025.2492033

Google Scholar

[13] T.Y. Kim, Analytical solution for laminar entrance flow in circular pipes, Journal of Fluid Mechanics. 979 (2024) A51.

DOI: 10.1017/jfm.2023.1060

Google Scholar

[14] R.M. Sadri, J.M. Floryan, Accurate Evaluation of the Loss Coefficient and the Entrance Length of the Inlet Region of a Channel, ASME, J. Fluids Eng. 124(3) (2002) 685–693.

DOI: 10.1115/1.1493813

Google Scholar

[15] P. Turecky, L. Mrozek, L. Tajc, M. Kolovratnik, Analysis of pressure losses in the diffuser of a control value, EFM 2016. 143 (2017) 02135.

DOI: 10.1051/epjconf/201714302135

Google Scholar

[16] A.M. Noh, M.A.M. Tahir, K.A. Shafie, Plant Factory Airflow Distribution Analysis with Different Inlet Configuration, Advances in Agricultural and Food Research Journal. 2(2) (2021).

DOI: 10.36877/aafrj.a0000242

Google Scholar

[17] Z. Feng, Z. Long, Q. Chen,. Assessment of various CFD models for predicting airflow and pressure drop through pleated filter system, Building and Environment. 75 (2014) 132-141.

DOI: 10.1016/j.buildenv.2014.01.022

Google Scholar

[18] I.D. Badretdinov, S.G. Mudarisov, D.T. Khaliullin, Examination of the airflow uneven distribution over the combine harvester cleaning system, Mathematical Modelling of Engineering Problems. 9(2) (2022) 371–378.

DOI: 10.18280/mmep.090210

Google Scholar
