Nickel Aluminides as a “Filler” for Joining Ceramics and Metals

D. Kalinski; M. Chmielewski; A. Krajewski; M. Kozłowski

doi:10.4028/www.scientific.net/AST.45.1608

Paper Titles

Soldering and Brazing Metals to Ceramics at Room Temperature Using a Novel Nanotechnology
p.1578

Transient Liquid Phase Bonding of Ceramics and Metal Matrix Composites
p.1588

Metallization of AlN for Electronics
p.1594

New Glass Sealing Method with Lead-Free Solders
p.1604

Nickel Aluminides as a “Filler” for Joining Ceramics and Metals
p.1608

Properties Dependency of Alumina - Steel Joints on Bonding Technique
p.1614

High Temperature Plastic Flow and Ductility in Polycrystalline Oxide Ceramics: Doping Effect and Related Phenomena
p.1620

Grain Boundary Diffusion in Cation-Doped Superplastic 3Y-TZP
p.1626

Annealing Effects on Toughened Intra-Type Nanocomposites
p.1632

HomeAdvances in Science and TechnologyAdvances in Science and Technology Vol. 45Nickel Aluminides as a “Filler” for Joining...

Nickel Aluminides as a “Filler” for Joining Ceramics and Metals

Abstract:

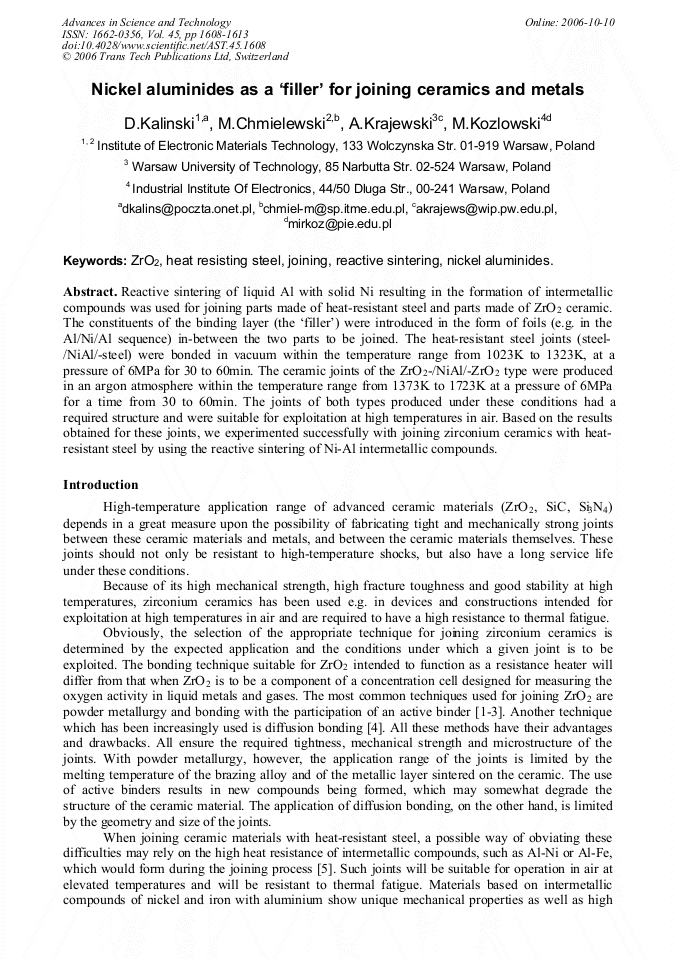

Reactive sintering of liquid Al with solid Ni resulting in the formation of intermetallic compounds was used for joining parts made of heat-resistant steel and parts made of ZrO2 ceramic. The constituents of the binding layer (the ‘filler’) were introduced in the form of foils (e.g. in the Al/Ni/Al sequence) in-between the two parts to be joined. The heat-resistant steel joints (steel- /NiAl/-steel) were bonded in vacuum within the temperature range from 1023K to 1323K, at a pressure of 6MPa for 30 to 60min. The ceramic joints of the ZrO2-/NiAl/-ZrO2 type were produced in an argon atmosphere within the temperature range from 1373K to 1723K at a pressure of 6MPa for a time from 30 to 60min. The joints of both types produced under these conditions had a required structure and were suitable for exploitation at high temperatures in air. Based on the results obtained for these joints, we experimented successfully with joining zirconium ceramics with heatresistant steel by using the reactive sintering of Ni-Al intermetallic compounds.

You might also be interested in these eBooks

View Preview

Info:

Periodical:

Advances in Science and Technology (Volume 45)

Pages:

1608-1613

DOI:

https://doi.org/10.4028/www.scientific.net/AST.45.1608

Citation:

Cite this paper

Online since:

October 2006

Authors:

D. Kalinski, M. Chmielewski, A. Krajewski, M. Kozłowski

Keywords:

Heat Resistant Steel, Joining, Nickel Aluminides, Reactive Sintering, Zro₂

Export:

RIS, BibTeX

Price:

Permissions CCC:

Request Permissions

Permissions PLS:

Request Permissions

Сopyright:

Citation:

References

[1] Weise W., Malikowski W., Krappitz H.: Wetting and strength properties of ceramics to metal joints depending on brazing conditions and joints geometry. Joining Ceramics, Glass and Metal, DGM Informayionsgesselschaft Verlag (1989).

Google Scholar

[2] W. B. Hanson, K. I. Ironside and J. A. Fernie: Acta Mater. 48 (2000), pp.4673-4676.

Google Scholar

[3] D. Sciti, A. Bellosi, L. Esposito: Journal of the European Ceramic Society 21 (2001), pp.45-52.

Google Scholar

[4] C-D. Qin, B. Derby: Journal of Materials Science 28(1993), pp.4366-4374.

Google Scholar

[5] J. Mei, P. Xiao: Scripta Materialia. Vol. 40, No. 5 (1999), pp.587-594.

Google Scholar

[6] K. Morsi: Materials Science and Engineering A299 (2001), pp.1-15.

Google Scholar

[7] K. Matsuura, T. Kitamutra, M. Kudoh: Journal of Materials Processing Technology 63 (1997), pp.293-302.

Google Scholar

[8] Heat-resisting steel- Grades PN-71H-86099.

Google Scholar
