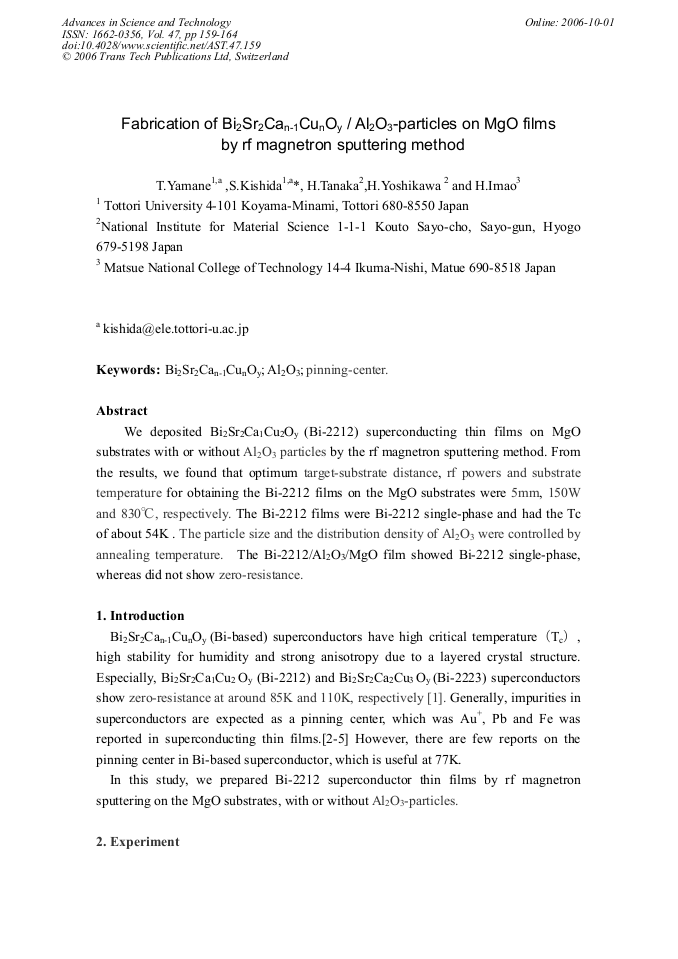

Fabrication of Bi₂Sr₂Ca_n-1Cu_nO_y / Al₂O₃-Particles on MgO Films by rf Magnetron Sputtering Method

Abstract:

We deposited Bi2Sr2Ca1Cu2Oy (Bi-2212) superconducting thin films on MgO substrates with or without Al2O3 particles by the rf magnetron sputtering method. From the results, we found that optimum target-substrate distance, rf powers and substrate temperature for obtaining the Bi-2212 films on the MgO substrates were 5mm, 150W and 830°C, respectively. The Bi-2212 films were Bi-2212 single-phase and had the Tc of about 54K . The particle size and the distribution density of Al2O3 were controlled by annealing temperature. The Bi-2212/Al2O3/MgO film showed Bi-2212 single-phase, whereas did not show zero-resistance.

• Periodical: Advances in Science and Technology (Volume 47)
• Pages: 159-164
• DOI: https://doi.org/10.4028/www.scientific.net/AST.47.159
• Online since: October 2006
• Authors: T. Yamane, Satoru Kishida, H. Tanaka, Hideki Yoshikawa, Hiroya Imao
• Keywords: Al₂O₃, Bi₂Sr₂Ca_n-1Cu_nO_y, Pinning Center

References

[1] H. Maeda, Y. Tanaka, M. Fukutomi, T. Asano, Jpn. J. Appl. Phys. 27 (1988) L209.

[2] K. Harada, H. Kasai, O. Kamimura, T. Matsuda, A. Tonomura, S. Okayasu, Y. Kazumata Phys. Rev. B vol. 53 no. 14, pp.9400-9405, (1996).

[3] F. Hillmer, G. Jakob, P. Haibach, U. Frey, Th. Kluge, H. Adrian, G. Wirth, E. Jager, E. Schimpf Physica C vol. 311 no. 1&2, pp.11-18, (1999).

DOI: 10.1016/s0921-4534(98)00552-8

[4] A. Pomar, L. Martel, Z. Z. Li, H. Raffy Phys. Rev. B vol. 63 no. 13, p.134525, (2001).

[5] P. N. Togulev, V. V. Bazarov, I. B. Khaibullin, N. M. Suleimanov Low Temp. Phys. vol. 28 no. 4, pp.250-253, (2002).
