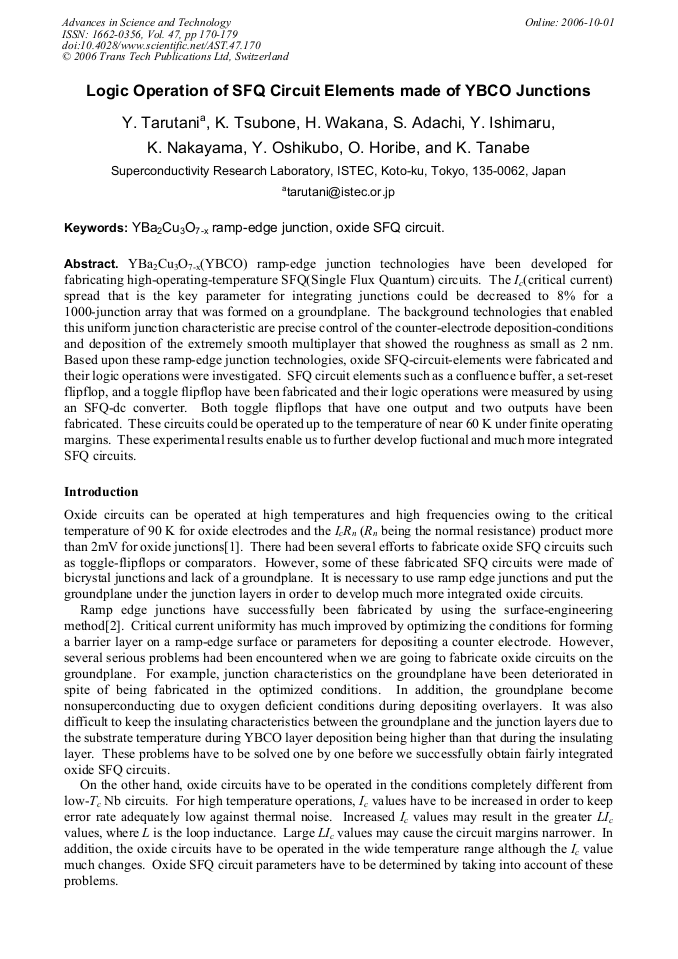

Logic Operation of SFQ Circuit Elements Made of YBCO Junctions

Abstract:

YBa2Cu3O7-x(YBCO) ramp-edge junction technologies have been developed for fabricating high-operating-temperature SFQ(Single Flux Quantum) circuits. The Ic(critical current) spread that is the key parameter for integrating junctions could be decreased to 8% for a 1000-junction array that was formed on a groundplane. The background technologies that enabled this uniform junction characteristic are precise control of the counter-electrode deposition-conditions and deposition of the extremely smooth multiplayer that showed the roughness as small as 2 nm. Based upon these ramp-edge junction technologies, oxide SFQ-circuit-elements were fabricated and their logic operations were investigated. SFQ circuit elements such as a confluence buffer, a set-reset flipflop, and a toggle flipflop have been fabricated and their logic operations were measured by using an SFQ-dc converter. Both toggle flipflops that have one output and two outputs have been fabricated. These circuits could be operated up to the temperature of near 60 K under finite operating margins. These experimental results enable us to further develop fuctional and much more integrated SFQ circuits.

• Periodical: Advances in Science and Technology (Volume 47)
• Pages: 170-179
• DOI: https://doi.org/10.4028/www.scientific.net/AST.47.170
• Online since: October 2006
• Authors: Y. Tarutani, K. Tsubone, H. Wakana, S. Adachi, Y. Ishimaru, K. Nakayama, Y. Oshikubo, O. Horibe, K. Tanabe
• Keywords: Oxide SFQ Circuit, YBa₂Cu₃O_7-x Ramp Edge Junction

References

[1] K. K. Likharev and V. K. Semenov, IEEE Trans. Applied Supercond. Vol. 1 (1991), p.3.

[2] B. H. Moeckley and K. Char, Appl. Phys. Lett. Vol. 71 (1997), p.2526.

[3] S. Adachi, H. Wakana, M. Horibe, N. Inoue, T. Sugano, K. Tanabe, Physica C Vol. 378-381 (2002), p.1213.

DOI: 10.1016/s0921-4534(02)01693-3

[4] T. Suzuki, Y. Ishimaru, M. Horibe, O. Horibe, H. Wakana, S. Adachi, Y. Oshikubo, Y. Tarutani, U. Kawabe, and K. Tanabe, Physica C. Vol. 392-396 (2003), p.1378.

DOI: 10.1016/s0921-4534(03)01029-3

[5] H. Wakana, S. Adachi, M. Horibe, Y. Ishimaru, O. Horibe, Y. Tarutani, and K. Tanabe, Jpn. J. Appl. Phys. Vol. 41 (2002), p. L239.

DOI: 10.1143/jjap.41.l239

[6] H. Wakana, S. Adachi, M. Horibe, Y. Ishimaru, Y. Oshikubo, Y. Tarutani, and K. Tanabe, Jpn. J. Appl. Phys. 2, Lett. Vol. 41 (2002), p. L1366.

DOI: 10.1143/jjap.41.l1366

[7] Y. Tarutani, Y. Ishimaru, H. Wakana, M. Horibe, O. Horibe, H. Sugiyama, M. Iiyama, S. Adachi, Y. Oshikubo, H. Tano, T. Suzuki, K. Tanabe, Physica C. Vol. 372-376 (2002), p.59.

DOI: 10.1016/s0921-4534(02)00742-6

[8] H. Wakana, S. Adachi, Ai. Kamitani, K. Nakayama, Y. Ishimaru, Y. Oshikubo, Y. Tarutani, K. Tanabe, IEICE Trans. Electron. Vol. E88-C (2005), p.208.

DOI: 10.1109/tasc.2005.849723

[9] H. Wakana, S. Adachi, Ai. Kamitani, K. Nakayama, Y. Ishimaru, Y. Oshikubo, Y. Tarutani, K. Tanabe, IEEE Trans. Appl. Supercond. Vol. 15 (2005), p.153.

DOI: 10.1109/tasc.2005.849723

[10] H. Wakana, S. Adachi, H. Sugiyama, Y. Takahashi, T. Sugano, M. Horibe, Y. Ishimaru, Y. Tarutani, and K. Tanabe, IEEE Trans. Applied Supercond. Vol. 13 (2003), p.595.

DOI: 10.1109/tasc.2003.813956

[11] Y. Tarutani, Y. Ishimaru, H. Wakana, S. Adachi, K. Nakayama, Y. Oshikubo, O. Horibe, Y. Morimoto, and K. Tanabe, Physica C Vol. 412 (2004), p.1528.

DOI: 10.1016/j.physc.2004.01.151

[12] Y. Tarutani, Y. Ishimaru, H. Wakana, S. Adachi, K. Nakayama, Y. Oshikubo, O. Horibe, Y. Morimoto, and K. Tanabe, IEEE Trans. Appl. Supercond. Vol. 15 (2005), p.376.

DOI: 10.1109/tasc.2005.849854

[13] K. Tsubone, H. Wakana, Y. Ishimaru, S. Adachi, K. Nakayama, Y. Tarutani, and K. Tanabe, IEEE Trans. Appl. Supercond. Vol. 15 (2005), p.3911.

DOI: 10.1109/tasc.2005.859045

[14] K. Tsubone, H. Wakana, Y. Ishimaru, S. Adachi, K. Nakayama, Y. Oshikubo, O. Horibe, Y. Tarutani, and K. Tanabe, to be published in Physica C.

DOI: 10.1016/j.physc.2006.05.098

[15] M. Maruyama, H. Suzuki, T. Hato, and K. Tanabe, IEEE Trans. Appl. Supercond. Vol. 15 (2005), p.316.
