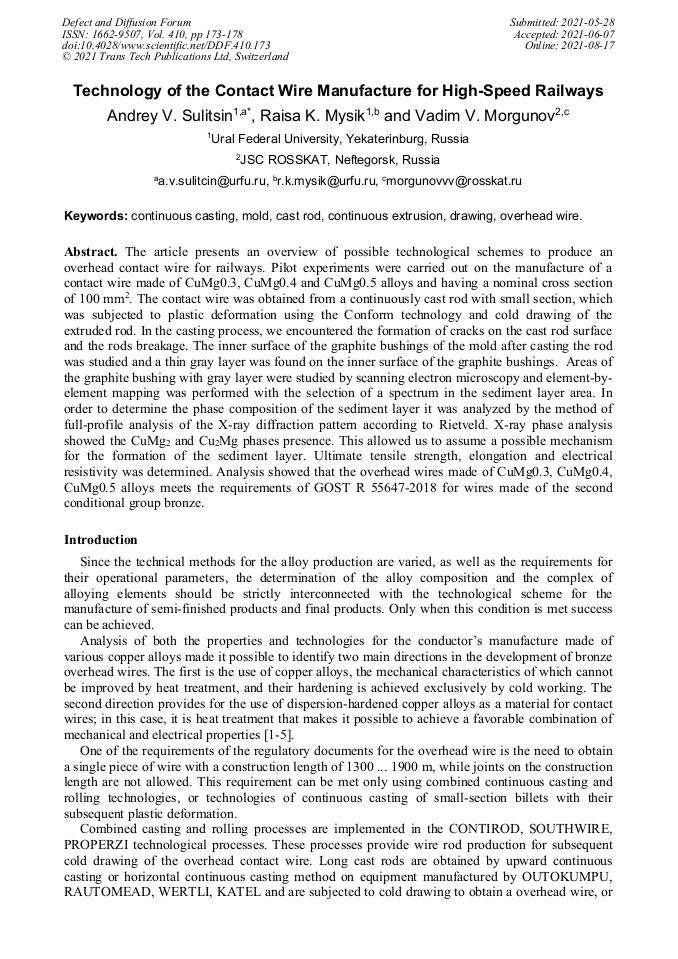

Technology of the Contact Wire Manufacture for High-Speed Railways

Abstract:

The article presents an overview of possible technological schemes to produce an overhead contact wire for railways. Pilot experiments were carried out on the manufacture of a contact wire made of CuMg0.3, CuMg0.4 and CuMg0.5 alloys and having a nominal cross section of 100 mm². The contact wire was obtained from a continuously cast rod with small section, which was subjected to plastic deformation using the Conform technology and cold drawing of the extruded rod. In the casting process, we encountered the formation of cracks on the cast rod surface and the rods breakage. The inner surface of the graphite bushings of the mold after casting the rod was studied and a thin gray layer was found on the inner surface of the graphite bushings. Areas of the graphite bushing with gray layer were studied by scanning electron microscopy and element-by-element mapping was performed with the selection of a spectrum in the sediment layer area. In order to determine the phase composition of the sediment layer it was analyzed by the method of full-profile analysis of the X-ray diffraction pattern according to Rietveld. X-ray phase analysis showed the CuMg₂ and Cu₂Mg phases presence. This allowed us to assume a possible mechanism for the formation of the sediment layer. Ultimate tensile strength, elongation and electrical resistivity was determined. Analysis showed that the overhead wires made of CuMg0.3, CuMg0.4, CuMg0.5 alloys meets the requirements of GOST R 55647-2018 for wires made of the second conditional group bronze.

• Periodical: Defect and Diffusion Forum (Volume 410)
• Pages: 173-178
• DOI: https://doi.org/10.4028/www.scientific.net/DDF.410.173
• Online since: August 2021
• Authors: Andrey V. Sulitsin*, Raisa K. Mysik, Vadim V. Morgunov
• Keywords: Cast Rod, Continuous Casting, Continuous Extrusion, Drawing, Mold, Overhead Wire

References

[1] I.S. Gershmann, N.V. Mironos, Overhead wire requirements for high-speed rail transport, Vestnik VNIIZhT. 3 (2011) 13-17.

[2] V.Ya. Berent, Materials and Properties of Electrical Contacts in Railway Transport Devices, Intext, Moscow, (2005).

[3] G. Braeckelmann, R. Venkatraman, C. Capasso and M. Herrick, Integration and reliability of copper magnesium alloys for multilevel interconnects, Proceedings of the IEEE 2000 International Interconnect Technology Conference, Burlingame, CA, USA. (2000) 236-238.

DOI: 10.1109/iitc.2000.854335

[4] M. Tada et al., Improving Reliability of Copper Dual-Damascene Interconnects by Impurity Doping and Interface Strengthening, in IEEE Transactions on Electron Devices. 54(8) (2007) 1867-1877.

DOI: 10.1109/ted.2007.901265

[5] V.Ya Berent, Copper alloyed overhead wires, J. World Railways. 4 (2002) 46-52.

[6] Yu. N. Loginov, R.K. Mysik, Poluneprerivnoye i neprerivnoye lit'ye medi i splavov pri proizvodstve contactnogo provoda, J. Foundry of Russia. 1 (2005) 34-37.

[7] Yu. N. Loginov, R.K. Mysik, Continuous casting and rolling methods in the overhead wire production for railway transport, Journal of the Siberian Federal University. Series: Engineering and Technology. 3(7) (2014) 316-326.

[8] D.K. Sinha, S. Kumar, A. Kumar and A. Yadav, Optimization of process parameters in continuous extrusion of aluminium alloy, International Conference on Computational and Characterization Techniques in Engineering & Sciences (CCTES), Lucknow, India. (2018) 246-251.

DOI: 10.1109/cctes.2018.8673980

[9] W. Yucai, H. Guojie, X. Shuisheng, W. Pengyue and Y. Ming, Numerical simulation of continuous extrusion forming of hollow copper conductor, Second International Conference on Mechanic Automation and Control Engineering, Hohhot. (2011) 7487-7490.

DOI: 10.1109/mace.2011.5988782

[10] I.S. Gershmann, Materials based on non-ferrous metals for railway transport, Bulletin of the Joint Scientific Council OAO RZhD,. 4 (2014) 11-20.

[11] I.V. Khomskaya, High-speed deformation of metal materials by channel-angle pressing to obtain an ultra-fine-grained structure, J. Metals Deformation and Destruction. 2 (2009) 36-41.

[12] I.V. Khomskaya, Features of structure formation in copper during dynamic channel-angle pressing, J. Physics of Metals and Metal Science. 6 (2008) 621-629.

[13] Information on: http:www.railway-research.org/IMG/pdf/ps.2.8.pdf.

[14] K. Khawaja, K. Althoefer, M. P. Clode and L. D. Seneviratne, Gap sensing benefits in Conform (TM) extrusion machinery, Proceedings IEEE International Conference on Robotics and Automation, New Orleans, LA, USA. 1(1) (2004) 529-534.

DOI: 10.1109/robot.2004.1307203

[15] GOST R 55647-2018. Copper and Copper Alloy Trolley Wires for Electric Railways. Specifications, Standartinform, Moscow, (2018).
