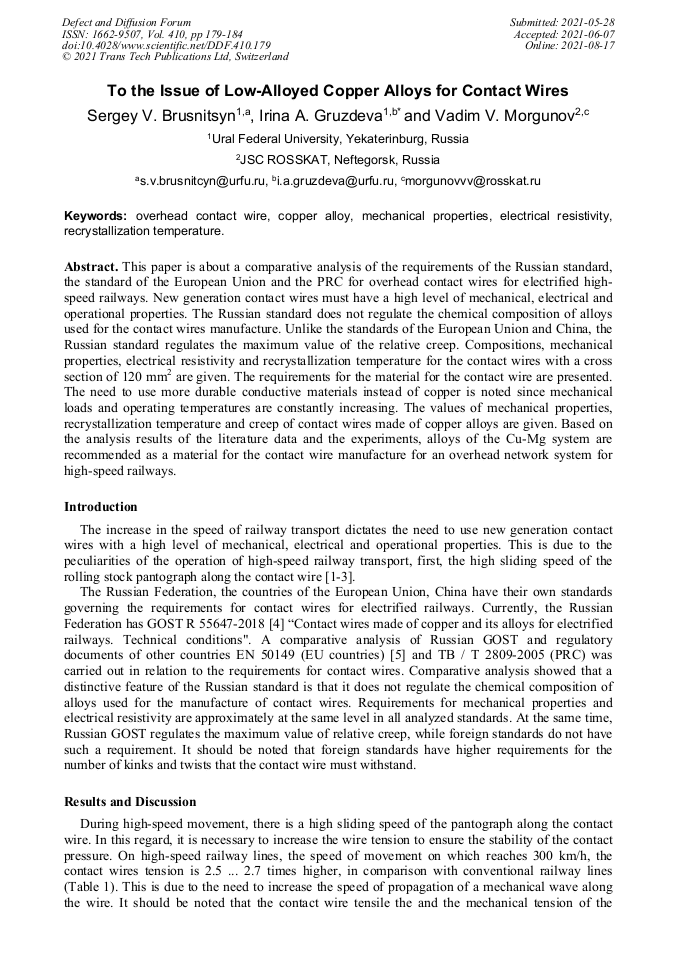

To the Issue of Low-Alloyed Copper Alloys for Contact Wires

Abstract:

This paper is about a comparative analysis of the requirements of the Russian standard, the standard of the European Union and the PRC for overhead contact wires for electrified high-speed railways. New generation contact wires must have a high level of mechanical, electrical and operational properties. The Russian standard does not regulate the chemical composition of alloys used for the contact wires manufacture. Unlike the standards of the European Union and China, the Russian standard regulates the maximum value of the relative creep. Compositions, mechanical properties, electrical resistivity and recrystallization temperature for the contact wires with a cross section of 120 mm² are given. The requirements for the material for the contact wire are presented. The need to use more durable conductive materials instead of copper is noted since mechanical loads and operating temperatures are constantly increasing. The values of mechanical properties, recrystallization temperature and creep of contact wires made of copper alloys are given. Based on the analysis results of the literature data and the experiments, alloys of the Cu-Mg system are recommended as a material for the contact wire manufacture for an overhead network system for high-speed railways.

• Periodical: Defect and Diffusion Forum (Volume 410)
• Pages: 179-184
• DOI: https://doi.org/10.4028/www.scientific.net/DDF.410.179
• Online since: August 2021
• Authors: Sergey V. Brusnitsyn, Irina A. Gruzdeva*, Vadim V. Morgunov
• Keywords: Copper Alloy, Electrical Resistivity, Mechanical Properties, Overhead Contact Wire, Recrystallization Temperature

References

[1] I.S. Gershmann, N.V. Mironos, Overhead contact wire requirements for high-speed rail transport, Vestnik VNIIZhT. 3 (2011) 13-17.

[2] G. Braeckelmann, R. Venkatraman, C. Capasso and M. Herrick, Integration and reliability of copper magnesium alloys for multilevel interconnects, Proceedings of the IEEE 2000 International Interconnect Technology Conference, Burlingame, CA, USA, 2000, pp.236-238.

DOI: 10.1109/iitc.2000.854335

[3] M. Tada et al., Improving Reliability of Copper Dual-Damascene Interconnects by Impurity Doping and Interface Strengthening, IEEE Transactions on Electron Devices. 54(8) (2007) 1867-1877.

DOI: 10.1109/ted.2007.901265

[4] GOST 55647-2018. Copper and Copper Alloy Trolley Wires for Electric Railways. Specifications, Standartinform, Moscow, (2018).

[5] EN 50149. Railway Applications - Fixed Installations - Electric Traction - Copper and Copper Alloy Grooved Contact Wires, CENELEC, Brusels, (2001).

DOI: 10.3403/02355814

[6] CE-868. Rules for the Construction and Technical Operation of the Contact Network of Electrified Railways (PUTEKS EZhD), Transport, Moscow, (2002).

[7] V.Ya. Berent, Materials and Properties of Electrical Contacts in Railway Transport Devices. Intext, Moscow, (2005).

[8] H. Lee, H. Lee and H. Kwon, New methodology for enhancing electrical conductivity and strength of copper alloy using combined structure, Proceedings 60th Electronic Components and Technology Conference (ECTC), Las Vegas, NV, USA, 2010, pp.2031-2034.

DOI: 10.1109/ectc.2010.5490665

[9] I.S. Gershmann, N.V. Mironos, Requirements for contact wires for high-speed rail transport, in: Current collection and traction power supply during high-speed movement on direct current, Intext, Moscow, 2010, pp.33-37.

[10] V. Limp, Recrystallization of Metals, ONTI NKTP, Moscow, (1972).

[11] M.K. Smith, Fundamentals of Metal Physics, Metallurgisdat, Moscow, (1959).

[12] A.V. Lovchikov, Microalloying is a Promising Trend in the Creation of New Heat-Resistant Copper Alloys, CNIIcvetmet of Economics and Information, Moscow, (1988).

[13] V.Ya. Berent, Copper alloyed contact wires, J. World Railways. 4 (2002) 46-52.

[14] Information on: http://www.railway-research.org/IMG/pdf/ps.2.8.pdf.

[15] O.Ye. Osintsev, V.N. Fedorov, Copper and Copper Alloys. Domestic and Foreign Brands: Reference Book, Mechanical Engineering, Moscow, (2004).
