MRI Measurements of the Cartilage Contact Pattern of the Glenohumeral Joint During Rotation with Abduction under Static Conditions In Vivo

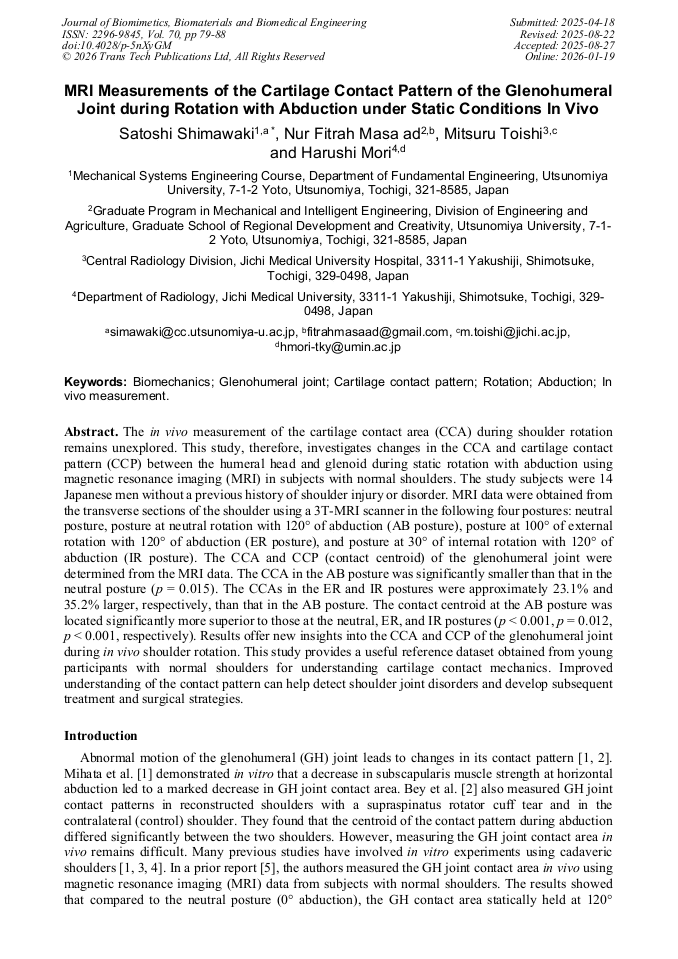

Article Preview

Abstract:

The in vivo measurement of the cartilage contact area (CCA) during shoulder rotation remains unexplored. This study, therefore, investigates changes in the CCA and cartilage contact pattern (CCP) between the humeral head and glenoid during static rotation with abduction using magnetic resonance imaging (MRI) in subjects with normal shoulders. The study subjects were 14 Japanese men without a previous history of shoulder injury or disorder. MRI data were obtained from the transverse sections of the shoulder using a 3T-MRI scanner in the following four postures: neutral posture, posture at neutral rotation with 120° of abduction (AB posture), posture at 100° of external rotation with 120° of abduction (ER posture), and posture at 30° of internal rotation with 120° of abduction (IR posture). The CCA and CCP (contact centroid) of the glenohumeral joint were determined from the MRI data. The CCA in the AB posture was significantly smaller than that in the neutral posture (p = 0.015). The CCAs in the ER and IR postures were approximately 23.1% and 35.2% larger, respectively, than that in the AB posture. The contact centroid at the AB posture was located significantly more superior to those at the neutral, ER, and IR postures (p < 0.001, p = 0.012, p < 0.001, respectively). Results offer new insights into the CCA and CCP of the glenohumeral joint during in vivo shoulder rotation. This study provides a useful reference dataset obtained from young participants with normal shoulders for understanding cartilage contact mechanics. Improved understanding of the contact pattern can help detect shoulder joint disorders and develop subsequent treatment and surgical strategies.

You might also be interested in these eBooks
Journal of Biomimetics, Biomaterials and Biomedical Engineering Vol. 70 View Preview

Info:

Periodical:

Journal of Biomimetics, Biomaterials and Biomedical Engineering (Volume 70)

Pages:

79-88

DOI:

https://doi.org/10.4028/p-5nXyGM

Citation:

Cite this paper

Online since:

January 2026

Authors:

Satoshi Shimawaki*, Nur Fitrah Masa Ad, Mitsuru Toishi, Harushi Mori

Keywords:

Abduction, Biomechanics, Cartilage Contact Pattern, Glenohumeral Joint, In Vivo Measurement, Rotation

Export:

RIS, BibTeX

Price:

Permissions CCC:

Request Permissions

Permissions PLS:

Request Permissions

Сopyright:

© 2026 Trans Tech Publications Ltd. All Rights Reserved

Share:

Citation:

* - Corresponding Author

References

[1] T. Mihata, J. Gates, M.H. McGarry, J. Lee, M. Kinoshita, T.Q. Lee, Effect of rotator cuff muscle imbalance on forceful internal impingement and peel-back of the superior labrum: a cadaveric study, Am. J. Sports Med. 37 (2009) 2222-2227.

DOI: 10.1177/0363546509337450

Google Scholar

[2] M.J. Bey, S.K. Kline, R. Zauel, P.A. Kolowich, T.R. Lock, In vivo measurement of glenohumeral joint contact patterns, EURASIP J. Adv. Signal Process. 2010 (2010) 162136.

DOI: 10.1155/2010/162136

Google Scholar

[3] J.J. Warner, M.K. Bowen, X.H. Deng, J.A. Hannafin, S.P. Arnoczky, R.F. Warren, Articular contact patterns of the normal glenohumeral joint, J. Shoulder Elbow Surg. 7 (1998) 381-388.

DOI: 10.1016/s1058-2746(98)90027-1

Google Scholar

[4] L.J. Soslowsky, E.L. Flatow, L.U. Bigliani, R.J. Pawluk, G.A. Ateshian, V.C. Mow, Quantitation of in situ contact areas at the glenohumeral joint: a biomechanical study, J. Orthop. Res. 10 (1992) 524-534.

DOI: 10.1002/jor.1100100407

Google Scholar

[5] S. Shimawaki, T. Tsuchiya, M. Suzuki, M. Toishi, H. Mori, MRI measurements of the cartilage contact pattern, contact area, and contact centroid of the glenohumeral joint during abduction under static conditions in vivo, J. Med. Biol. Eng. 44 (2024) 220-230.

DOI: 10.1007/s40846-024-00866-8

Google Scholar

[6] T. Mihata, M.H. McGarry, Y. Ishihara, C.N. Bui, D. Alavekios, M. Neo, T.Q. Lee, Biomechanical analysis of articular-sided partial-thickness rotator cuff tear and repair, Am. J. Sports Med. 43 (2015) 439-446.

DOI: 10.1177/0363546514560156

Google Scholar

[7] M. Akeda, T. Mihata, W.K. Jeong, M.H. McGarry, T. Yamazaki, T.Q. Lee, Lower shoulder abduction during throwing motion may cause forceful internal impingement and decreased anterior stability, J. Shoulder Elbow Surg. 27 (2018) 1125-1132.

DOI: 10.1016/j.jse.2017.12.029

Google Scholar

[8] D. Momma, A.A. Espinoza Orías, T. Irie, T. Irie, E. Kondo, N. Iwasaki, N. Inoue, Four-dimensional computed tomography evaluation of shoulder joint motion in collegiate baseball pitchers, Sci. Rep. 12 (2022) 3231.

DOI: 10.1038/s41598-022-06464-5

Google Scholar

[9] C.A. Schneider, W.S. Rasband, K.W. Eliceiri, NIH Image to ImageJ: 25 years of image analysis, Nat. Methods 9 (2012) 671-675.

DOI: 10.1038/nmeth.2089

Google Scholar

[10] G. Hammond, J.E. Tibone, M.H. McGarry, B.J. Jun, T.Q. Lee, Biomechanical comparison of anatomic humeral head resurfacing and hemiarthroplasty in functional glenohumeral positions, J. Bone Joint Surg. Am. 94 (2012) 68-76.

DOI: 10.2106/jbjs.i.00171

Google Scholar

[11] T. Mihata, J. Gates, M.H. McGarry, M. Neo, T.Q. Lee, Effect of posterior shoulder tightness on internal impingement in a cadaveric model of throwing, Knee Surg. Sports Traumatol. Arthrosc. 23 (2015) 548-54.

DOI: 10.1007/s00167-013-2381-7

Google Scholar

[12] N. Matsumura, S. Oki, N. Fukasawa, M. Matsumoto, M. Nakamura, T. Nagura, Y. Yamada, M. Jinzaki, Glenohumeral translation during active external rotation with the shoulder abducted in cases with glenohumeral instability: a 4-dimensional computed tomography analysis, J. Shoulder Elbow Surg. 28 (2019) 1903-1910.

DOI: 10.1016/j.jse.2019.03.008

Google Scholar

[13] D.F. Massimini, P.J. Boyer, R. Papannagari, T.J. Gill, J.P. Warner, G. Li, In-vivo glenohumeral translation and ligament elongation during abduction and abduction with internal and external rotation, J. Orthop. Surg. Res. 7 (2012) 29.

DOI: 10.1186/1749-799x-7-29

Google Scholar

[14] S.M. Howell, B.J. Galinat, A.J. Renzi, P.J. Marone, Normal and abnormal mechanics of the glenohumeral joint in the horizontal plane, J. Bone Joint Surg. Am. 70 (1988) 227-232.

DOI: 10.2106/00004623-198870020-00010

Google Scholar

[15] R.M. von Eisenhart-Rothe, A. Jager, K.H. Englmeier, T.J. Vogl, H. Graichen, Relevance of arm position and muscle activity on three-dimensional glenohumeral translation in patients with traumatic and atraumatic shoulder instability, Am. J. Sports Med. 30 (2002) 514-522.

DOI: 10.1177/03635465020300041101

Google Scholar

[16] G. Di Giacomo, P. Scarso, A. De Vita, M.A. Rojas Beccaglia, N. Pouliart, N. de Gasperis, Glenohumeral translation in ABER position during muscle activity in patients treated with Latarjet procedure: an in vivo MRI study, Knee Surg. Sports Traumatol. Arthrosc. 24 (2016) 521-525.

DOI: 10.1007/s00167-015-3896-x

Google Scholar

[17] Y. Omori, N. Yamamoto, H. Koishi, K. Futai, A. Goto, K. Sugamoto, E. Itoi, Measurement of the glenoid track in vivo as investigated by 3-dimensional motion analysis using open MRI, Am. J. Sports Med. 42 (2014) 1290-1295.

DOI: 10.1177/0363546514527406

Google Scholar

[18] W. Sahara, T. Yamazaki, S. Konda, K. Sugamoto, H. Yoshikawa, Influence of humeral abduction angle on axial rotation and contact area at the glenohumeral joint, J. Shoulder Elbow Surg. 28 (2019) 570-577.

DOI: 10.1016/j.jse.2018.08.023

Google Scholar

[19] R.L. Lawrence, S.B. Soliman, K. Roseni, R. Zauel, M.J. Bey, In vivo evaluation of rotator cuff internal impingement during scapular plane abduction in asymptomatic individuals, J. Orthop. Res. 41 (2023) 718-726.

DOI: 10.1002/jor.25423

Google Scholar

[20] G. Edelson, C. Teitz, Internal impingement in the shoulder, J. Shoulder Elbow Surg. 9 (2000) 308-315.

DOI: 10.1067/mse.2000.105449

Google Scholar

[21] T. Mihata, M.H. McGarry, M. Neo, M. Ohue, T.Q. Lee, Effect of anterior capsular laxity on horizontal abduction and forceful internal impingement in a cadaveric model of the throwing shoulder, Am. J. Sports Med. 43 (2015) 758-763.

DOI: 10.1177/0363546515582025

Google Scholar

[22] G. Saini, R.L. Lawrence, J.L. Staker, J.P. Braman, P.M. Ludewig, Supraspinatus-to-glenoid contact occurs during standardized overhead reaching motion, Orthop. J. Sports Med. 9 (2021) 23259671211036908.

DOI: 10.1177/23259671211036908

Google Scholar

[23] H. Ishikawa, D. Kurokawa, T. Muraki, H. Nagamoto, H. Takahashi, N. Yamamoto, E. Itoi, S. Izumi, Increased external rotation related to the soft tissues is associated with pathologic internal impingement in high-school baseball players, J. Shoulder Elbow Surg. 31 (2022) 1823-1830.

DOI: 10.1016/j.jse.2022.02.021

Google Scholar

[24] C. Malmberg, K.R. Andreasen, J. Bencke, P. Hölmich, K.W. Barfod, Anterior-posterior glenohumeral translation in shoulders with traumatic anterior instability: a systematic review of the literature, JSES Rev. Rep. Tech. 3 (2023) 477-493.

DOI: 10.1016/j.xrrt.2023.07.002

Google Scholar

[25] F.H. Savoie 3rd, M.J. O'Brien, Anterior instability in the throwing shoulder, Sports Med. Arthrosc. Rev. 22 (2014) 117-119.

Google Scholar
