Precipitation Hardening of the Additive-Manufactured 17-4 PH Stainless Steel for Medical Applications

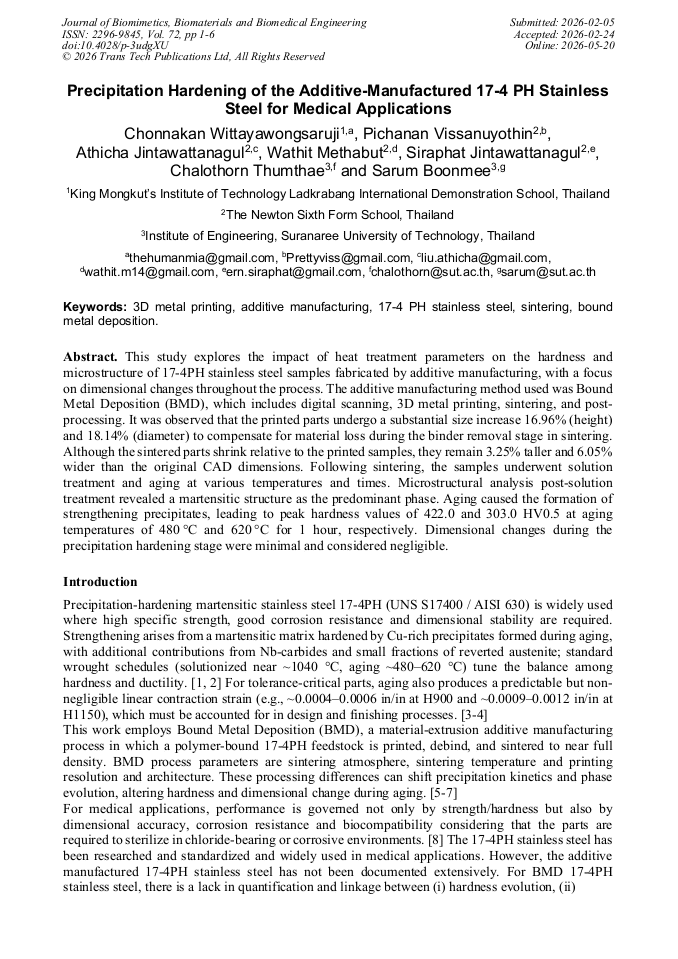

Article Preview

Abstract:

This study explores the impact of heat treatment parameters on the hardness and microstructure of 17-4PH stainless steel samples fabricated by additive manufacturing, with a focus on dimensional changes throughout the process. The additive manufacturing method used was Bound Metal Deposition (BMD), which includes digital scanning, 3D metal printing, sintering, and post-processing. It was observed that the printed parts undergo a substantial size increase 16.96% (height) and 18.14% (diameter) to compensate for material loss during the binder removal stage in sintering. Although the sintered parts shrink relative to the printed samples, they remain 3.25% taller and 6.05% wider than the original CAD dimensions. Following sintering, the samples underwent solution treatment and aging at various temperatures and times. Microstructural analysis post-solution treatment revealed a martensitic structure as the predominant phase. Aging caused the formation of strengthening precipitates, leading to peak hardness values of 422.0 and 303.0 HV0.5 at aging temperatures of 480 °C and 620 °C for 1 hour, respectively. Dimensional changes during the precipitation hardening stage were minimal and considered negligible.

You might also be interested in these eBooks
Journal of Biomimetics, Biomaterials and Biomedical Engineering Vol. 72 View Preview

Info:

Periodical:

Journal of Biomimetics, Biomaterials and Biomedical Engineering (Volume 72)

Pages:

1-6

DOI:

https://doi.org/10.4028/p-3udgXU

Citation:

Cite this paper

Online since:

May 2026

Authors:

Chonnakan Wittayawongsaruji, Pichanan Vissanuyothin, Athicha Jintawattanagul, Wathit Methabut, Siraphat Jintawattanagul, Chalothorn Thumthae, Sarum Boonmee*

Keywords:

17-4 PH Stainless Steel, 3D Metal Printing, Additive Manufacturing, Bound Metal Deposition, Sintering

Export:

RIS, BibTeX

Price:

Permissions CCC:

Request Permissions

Permissions PLS:

Request Permissions

Сopyright:

© 2026 Trans Tech Publications Ltd. All Rights Reserved

Share:

Citation:

* - Corresponding Author

References

[1] Sathyanath, A., Meena, A., Materials Today Communications, 25(2020) 101416.

Google Scholar

[2] Jones, J., Vafadar, A., Hashemi, R., Journal of manufacturing and materials processing 7(162) (2023).

Google Scholar

[3] Singh, G., Missiaen, J.M., Bouvard, D., Chaix, J.M., Additive Manufacturing, 47(2021) 102287.

Google Scholar

[4] Zhang, Y., Roch, A., Manufacturing Letters, 33(2022) 29-32.

Google Scholar

[5] Jasik, K., Śnieżek, L., Kluczyński, J., Materials, 18(12) (2025) 2744.

Google Scholar

[6] Jatupongpairoj, P., Khwankitsirikhun, T., Jatupongpairoj, N., Thumthae, C., Suebsaman, O., Boonmee, S., Advances in Science and Technology 157 (2024) 35-40.

DOI: 10.4028/p-8jxks4

Google Scholar

[7] AK Steel. "ARMCO® 17-4 PH® Stainless Steel—Dimensional Change & Dilatometry." Datasheet (2022).

Google Scholar

[8] Eliaz, N., Materials, 12(3) (2019) 407.

Google Scholar

[9] ASTM E384-22. "Standard Test Method for Microindentation Hardness." (2022).

Google Scholar
