Utilizing Experimental Compressive Strength to Assess Mid-Span Deflection in Reinforced Concrete Beams Using Robot Structural Analysis Software

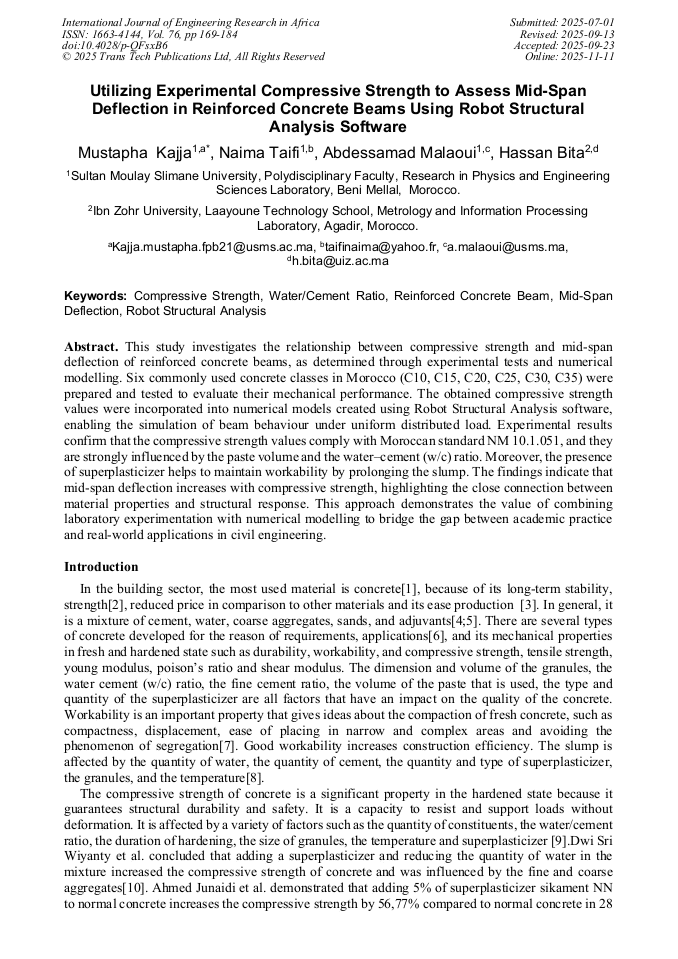

Article Preview

Abstract:

This study investigates the relationship between compressive strength and mid-span deflection of reinforced concrete beams, as determined through experimental tests and numerical modelling. Six commonly used concrete classes in Morocco (C10, C15, C20, C25, C30, C35) were prepared and tested to evaluate their mechanical performance. The obtained compressive strength values were incorporated into numerical models created using Robot Structural Analysis software, enabling the simulation of beam behaviour under uniform distributed load. Experimental results confirm that the compressive strength values comply with Moroccan standard NM 10.1.051, and they are strongly influenced by the paste volume and the water–cement (w/c) ratio. Moreover, the presence of superplasticizer helps to maintain workability by prolonging the slump. The findings indicate that mid-span deflection increases with compressive strength, highlighting the close connection between material properties and structural response. This approach demonstrates the value of combining laboratory experimentation with numerical modelling to bridge the gap between academic practice and real-world applications in civil engineering.

You might also be interested in these eBooks
International Journal of Engineering Research in Africa Vol. 76 View Preview

Info:

Periodical:

International Journal of Engineering Research in Africa (Volume 76)

Pages:

169-184

DOI:

https://doi.org/10.4028/p-QFsxB6

Citation:

Cite this paper

Online since:

November 2025

Authors:

Mustapha Kajja*, Naima Taifi, Abdessamad Malaoui, Hassan Bita

Keywords:

Compressive Strength, Mid-Span Deflection, Reinforced Concrete Beam, Robot Structural Analysis, Water/Cement Ratio

Export:

RIS, BibTeX

Price:

Permissions CCC:

Request Permissions

Permissions PLS:

Request Permissions

Сopyright:

© 2025 Trans Tech Publications Ltd. All Rights Reserved

Share:

Citation:

* - Corresponding Author

References

[1] W. A. Abdullah, H. U. Ahmed, Y. M. Alshkane, D. B. Rahman, A. O. Ali, and S. S. Abubakr, The Possibility of Using Waste PET Plastic Strip to Enhance the Flexural Capacity of Concrete Beams, Journal of Engg. Research, ICRIE Special Issue, (2021).

DOI: 10.36909/jer.v9iICRIE.11649

Google Scholar

[2] B. Mohammed, E. I. Yakubu, S. N. Mamman, M. Nda, A. A. Ayni, M. Zakari, and B. Kabir, The Effect of Aggregate Types on the Properties of Concrete, Path of Science, vol. 7, no. 12, p.5001–5012, (2021).

DOI: 10.22178/pos.77-3

Google Scholar

[3] V. A. Okumu, S. M. Shitote, and W. O. Oyawa, Influence of Constituent Materials Properties on the Compressive Strength of in Situ Concrete in Kenya, Open Journal of Civil Engineering, vol. 7, p.63–81, (2017).

DOI: 10.4236/ojce.2017.71004

Google Scholar

[4] E. Abbas and A. H. Al-zuhairi, Extended Finite Element Analysis of Reinforced Concrete Beams Using Meso-Scale Modeling, Association of Arab Universities Journal of Engineering Sciences, vol. 27, no. 1, p.19–29, (2020).

DOI: 10.33261/jaaru.2019.27.1.003

Google Scholar

[5] M. W. Falah and R. J. Ghayyib, Evaluating the Effects of Using Superplasticizer RHEOBUILD® 600 on the Workability and Compressive Strength of Normal Concrete, Journal of University of Babylon, Engineering Sciences, vol. 26, no. 5, p.95–104, (2018).

Google Scholar

[6] O. M. Ojo, Effect of Water Quality on Compressive Strength of Concrete, European Scientific Journal, vol. 15, no. 12, p.172–180, Apr. (2019).

DOI: 10.19044/esj.2019.v15n12p172

Google Scholar

[7] Y. Cai and Q.-f. Liu, Stability of Fresh Concrete and Its Effect on Late-Age Durability of Reinforced Concrete: An Overview, Journal of Building Engineering, vol. 79, p.107701, (2023).

DOI: 10.1016/j.jobe.2023.107701

Google Scholar

[8] J.F. Lamond, J.H. Pielert (Eds.), Significance of Tests and Properties of Concrete and Concrete-Making Materials, ASTM STP 169D, ASTM International, West Conshohocken, PA, 2006.

DOI: 10.1520/stp169d-eb

Google Scholar

[9] S. Panda, P. Sarkar, R. Davis, Effect of Water-Cement Ratio on Mix Design and Mechanical Strength of Copper Slag Aggregate Concrete, IOP Conf. Ser.: Mater. Sci. Eng. 936 (2020) 012019.

DOI: 10.1088/1757-899x/936/1/012019

Google Scholar

[10] D.S. Wiyanti, T.D. Laksono, Analysis of the Effects of Superplasticizer Addition and Water Reduction in Concrete Mixture on Concrete Compressive Strength, Int. J. Eng. Technol. Manag. Res. 7 (6) (2020) 47–57.

DOI: 10.29121/ijetmr.v7.i6.2020.688

Google Scholar

[11] A. Junaidi, R.D.H.M. Hariyanto, Effect of Adding Superplasticizer on High Initial Compressive Strength of High-Performance Concrete (HPC) Fc'= 36.62 MPa, Int. J. Eng. Technol. Manag. Res. 9 (10) (2022) 73–81.

DOI: 10.29121/ijetmr.v9.i10.2022.1241

Google Scholar

[12] W. Li, Analysis of the Influence of Water-Cement Ratio on Concrete Strength, E3S Web Conf. 283 (2021) 01016.

DOI: 10.1051/e3sconf/202128301016

Google Scholar

[13] B.S. Waziri, A. Mohammed, A.G. Bukar, Effect of Water-Cement Ratio on the Strength Properties of Quarry-Sand Concrete (QSC), Continental Journal of Engineering Sciences 6 (2) (2011) 16–21.

Google Scholar

[14] H.-W. Chung, T. Subgranon, Y. Wang, H.D. DeFord, M. Tia, Evaluation of Pavement Concrete with Low Paste Volume Using Portland Limestone Cement, ACI Materials Journal 117 (2) (2020) 181–192.

DOI: 10.14359/51720304

Google Scholar

[15] S.H. Chu, Effect of Paste Volume on Fresh and Hardened Properties of Concrete, Construction and Building Materials 218 (2019) 284–294.

DOI: 10.1016/j.conbuildmat.2019.05.131

Google Scholar

[16] W. Piasta, B. Zarzycki, The Effect of Cement Paste Volume and w/c Ratio on Shrinkage Strain, Water Absorption and Compressive Strength of High-Performance Concrete, Construction and Building Materials, vol. 140, p.395–402 (2017).

DOI: 10.1016/j.conbuildmat.2017.02.033

Google Scholar

[17] S. Kolias, C. Georgiou, The Effect of Paste Volume and of Water Content on the Strength and Water Absorption of Concrete, Cement and Concrete Composites 27 (2005) 211-216.

DOI: 10.1016/j.cemconcomp.2004.02.009

Google Scholar

[18] T.I.M. Abdel-Magid, R.M. Hamdan, A.A.B. Abdelgader, M.E.A. Omer, N.M.R.A. Ahmed, Effect of Magnetized Water on Workability and Compressive Strength of Concrete, Procedia Engineering 193 (2017) 494-500.

DOI: 10.1016/j.proeng.2017.06.242

Google Scholar

[19] M. Kajja, H. Bita, N. Taifi, A. Malaoui, Analytical and numerical study of rectangular reinforced concrete beam using robot structural analysis software, Materials Today: Proceedings (2023)

DOI: 10.1016/j.matpr.2023.07.344

Google Scholar

[20] S. Marium Varghese, K. Kamath, S. Rasia Salim, Effect of concrete strength and tensile steel reinforcement on RC beams externally bonded with fiber reinforced polymer composites: A finite element study, Materials Today: Proceedings (2023).

DOI: 10.1016/j.matpr.2023.03.650

Google Scholar

[21] A.A. Mansor, A.S. Mohammed, M.A. Mansor, Reinforced concrete beams capacity with various concrete compressive strengths, IOP Conference Series: Materials Science and Engineering 978 (2020) p.012036.

DOI: 10.1088/1757-899x/978/1/012036

Google Scholar

[22] M. Kajja, N. Taifi, A. Malaoui, H. Bita, Assessing the structural performance of a reinforced concrete beam: The effects of simulated rotation angle utilizing robot structural analysis software, MethodsX 13 (2024) 102836.

DOI: 10.1016/j.mex.2024.102836

Google Scholar

[23] R.A. More, S.K. Dubey, Effect of different types of water on compressive strength of concrete, International Journal on Emerging Technologies 5 (2) (2014) 40-50.

Google Scholar

[24] N. T.R., S. Rangaswamy, S.M. Gopinath, B.C. Shanthappa, Impact of water quality on strength properties of concrete, Indian Journal of Applied Research 4 (7) (2014) 197-199.

Google Scholar

[25] W. Tahri, X. Hu, C. Shi, Z. Zhang, Review on corrosion of steel reinforcement in alkali-activated concretes in chloride-containing environments, Construction and Building Materials 293 (2021) 123484

DOI: 10.1016/j.conbuildmat.2021.123484

Google Scholar

[26] H. Chbani, B. Saadouki, M. Boudlal, M. Barakat, Formulation of ordinary concrete using the Dreux-Gorisse method, Procedia Structural Integrity 28 (2020) 430-439.

DOI: 10.1016/j.prostr.2020.10.050

Google Scholar

[27] Moroccan Institute for Standardization (IMANOR), NM 10.1.061, concrete-slump Test, Rabat, Morocco, 2012.

Google Scholar

[28] Moroccan Institute for Standardization (IMANOR), NM 10.1.068, Preparation and Storage of Test Specimens, Rabat, Morocco, 2012.

Google Scholar

[29] Moroccan Institute for Standardization (IMANOR), NM 10.1.051 Compressive strength of specimens, Rabat, Morocco, 2012 ».

Google Scholar

[30] European Committee for Standardization (CEN), EN 1992-1-1 – Eurocode 2: Design of concrete structures – Part 1-1: General rules and rules for buildings, Brussels, Belgium, 2004.

Google Scholar

[31] C.L. Oh, S.W. Lee, M.Z. Mohd Raizamzamani, A.R. Azerai, Y. Norrul Azmi, Finite element analysis of high strength reinforced concrete beams, MATEC Web of Conferences 250 (2018) 03007.

DOI: 10.1051/matecconf/201825003007

Google Scholar

[32] O. Bahr, P. Schaumann, B. Bollen, J. Bracke, Young's modulus and Poisson's ratio of concrete at high temperatures: Experimental investigations, Materials and Design 45 (2013) 421-429

DOI: 10.1016/j.matdes.2012.07.070

Google Scholar

[33] A.Z. Fiqih, Juswan, M.Z.M. Alie, Beam deflection analysis using the analytical and numerical method, IOP Conference Series: Earth and Environmental Science 575 (2020) 012196.

DOI: 10.1088/1755-1315/575/1/012196

Google Scholar

[34] M. Karabulut, Nonlinear Load-Deflection Analysis of Steel Rebar-Reinforced Concrete Beams: Experimental, Theoretical and Machine Learning Analysis, Buildings 15 (2025) 432.

DOI: 10.3390/buildings15030432

Google Scholar

[35] S. Ke, Z. Gao, Experimental and numerical study on flexural behavior of steel fiber reinforced high–strength concrete (SFRHC) beams, Scientific Reports 15 (2025) 18338

DOI: 10.1038/s41598-025-02220-7

Google Scholar
