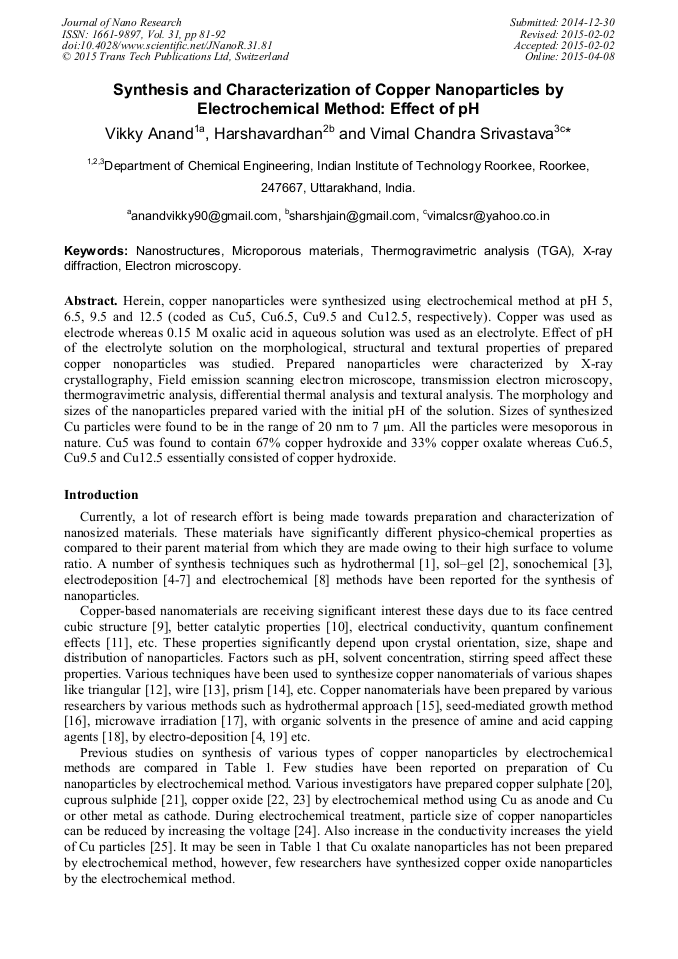

Synthesis and Characterization of Copper Nanoparticles by Electrochemical Method: Effect of pH

Abstract:

Herein, copper nanoparticles were synthesized using electrochemical method at pH 5, 6.5, 9.5 and 12.5 (coded as Cu5, Cu6.5, Cu9.5 and Cu12.5, respectively). Copper was used as electrode whereas 0.15 M oxalic acid in aqueous solution was used as an electrolyte. Effect of pH of the electrolyte solution on the morphological, structural and textural properties of prepared copper nonoparticles was studied. Prepared nanoparticles were characterized by X-ray crystallography, Field emission scanning electron microscope, transmission electron microscopy, thermogravimetric analysis, differential thermal analysis and textural analysis. The morphology and sizes of the nanoparticles prepared varied with the initial pH of the solution. Sizes of synthesized Cu particles were found to be in the range of 20 nm to 7 μm. All the particles were mesoporous in nature. Cu5 was found to contain 67% copper hydroxide and 33% copper oxalate whereas Cu6.5, Cu9.5 and Cu12.5 essentially consisted of copper hydroxide.

• Periodical: Journal of Nano Research (Volume 31)
• Pages: 81-92
• DOI: https://doi.org/10.4028/www.scientific.net/JNanoR.31.81
• Online since: April 2015
• Authors: Vikky Anand, Harshavardhan Harshavardhan, Vimal Chandra Srivastava
• Keywords: Electron Microscopy, Microporous Materials, Nanostructures, Thermogravimetric Analysis (TGA), X-Ray Diffraction

References

[1] B. Liu, H.C. Zeng, Hydrothermal synthesis of ZnO nanorods in the diameter regime of 50 nm, J. Am. Chem. Soc. 125 (2003) 4430-4431.

DOI: 10.1021/ja0299452

[2] N. Sanpo, J. Wang, C.C. Berndt, Sol-gel synthesized copper-substituted cobalt ferrite nanoparticles for biomedical applications, J. Nano Res. 15 (2013) 110-121.

DOI: 10.4028/www.scientific.net/jnanor.25.110

[3] R.V. Kumar, Y. Diamant, A. Gedanken, Sonochemical synthesis and characterization of nanometer-size transition metal oxides from metal acetates, Chem. Mater. 12 (2000) 2301-2305.

DOI: 10.1021/cm000166z

[4] H. Natter, R. Hempelmann, Nanocrystalline copper by pulsed electrodeposition: the effects of organic additives, bath temperature and pH, J. Phys. Chem. 100 (1996) 19525-19532.

DOI: 10.1021/jp9617837

[5] C.Y. Wang, Y. Zhou, Y.R. Zhu, H.J. Liu, Z.Y. Chen, Preparation of metal or alloy sulfide nanoparticles by electrochemical deposition, Mater. Res. Bull. 35 (2000) 1463-1468.

DOI: 10.1016/s0025-5408(00)00342-1

[6] Tao Wang, D. -C Sun, Preparation and characterization of nanometer-scale powders ceria by electrochemical deposition method, Mater. Res. Bull. 43 (2008) 1754-1760.

DOI: 10.1016/j.materresbull.2007.07.008

[7] F. -D. Mai, C. -C. Yu , Y. -C. Liu, T. -C. Hsu, Y.H. Wue, New strategy to prepare platinum salts by electrochemical methods and subsequent synthesis of platinum nanoparticles, Mater. Res. Bull. 47 (2012) 167-171.

DOI: 10.1016/j.materresbull.2011.11.056

[8] M. Shamsipur, M. Roushni, S.M. Pourmortazavi, Electrochemical synthesis and characterization of zinc oxalate nanoparticles, Mater. Res. Bull. 48 (2013) 1275-1280.

DOI: 10.1016/j.materresbull.2012.12.032

[9] M.V. Mandke, H.M. Pathan, Electrochemical growth of copper nanoparticles: structural and optical properties, J. Electroanal. Chem. 686 (2012) 19-24.

DOI: 10.1016/j.jelechem.2012.09.004

[10] S.B. Kalidindi, U. Sanyal, B.R. Jagirdar, Nanostructured Cu and Cu@Cu2O core shell catalysts for hydrogen generation from ammonia–borane, Phys. Chem. Chem. Phys. 10 (2008) 5870-5874.

DOI: 10.1039/b805726e

[11] S. D Pappas, P. Poulopoulos, V. Kapaklis, S. Grammatikopoulos, D. Trachylis, M. J. Velgakis, E. I. Meletis, C. Politis, Growth and experimental evidence of quantum confinement effects in Cu2O and CuO thin films, J. Nano Res. 15 (2011) 69-74.

DOI: 10.4028/www.scientific.net/jnanor.15.69

[12] X.W. Zheng, Controlling Synthesis of Copper Nanorods and Triangular Nanoplates, J. Nano Res. 4 (2008) 145-152.

[13] X. Hong, W. Guanzhong, Z. Wei, S. Xiaoshuang, W. Ying, Synthesis of sub-10 nm Cu2O nanowires by poly(vinyl pyrrolidone)-assisted electrodeposition, J. Phys. Chem. 113 (2009) 14172-14175.

DOI: 10.1021/jp9039786

[14] T.S. Ahmadi, Z.L. Wang, A. Henglein, M.A. El-Sayed, Cubic colloidal platinum nanoparticles, Am. Chem. Soc. 8 (1996) 1161-1163.

DOI: 10.1021/cm9601190

[15] X. Zhang, G. Wang, X. Liu, H. Wu, B. Fang, Copper dendrites: synthesis, mechanism discussion, and application in determination of l-tyrosine, Cryst. Growth Des. 8 (2008) 1430-1434.

DOI: 10.1021/cg7011028

[16] N.R. Jana, Z.L. Wang, T.K. Sau, T. Pal, Seed-mediated growth method to prepare cubic copper nanoparticles, Curr. Sci. 79 (2000) 1367-1370.

[17] H. Zhu, C. Zhang, Y. Yin, Novel synthesis of copper nanoparticles: influence of the synthesis conditions on the particle size, Nanotech. 16 (2005) 3079-3083.

DOI: 10.1088/0957-4484/16/12/059

[18] D. Mott, J. Galkowski, L. Wang, J. Luo, C.J. Zhong, Synthesis of size-controlled and shaped copper nanoparticles, Langmuir 23 (2007) 5740-5745.

DOI: 10.1021/la0635092

[19] F. Enders, A. Schweizer, The electrodeposition of copper on Au(111) and on HOPG from the 66/34 mol% aluminium chloride/1-butyl-3-methylimidazolium chloride room temperature molten salt: an EC-STM study, Phys. Chem. Chem. Phys. 2 (2000) 5455-5462.

DOI: 10.1039/b006040m

[20] A. Tamilvanan, K. Balamurugan, K. Ponappa, B.K. Madhan, Copper nanoparticles: synthetic strategies, properties and multifunctional application, Inter. J. Nanosci. 13 (2014) 1430001-14300022.

DOI: 10.1142/s0219581x14300016

[21] L. Fotouhi, M. Rezaei, Electrochemical synthesis of copper sulfide nanoparticles, Microchim. Acta 167 (2009) 247-251.

DOI: 10.1007/s00604-009-0234-3

[22] K.G. Chandrappa, T.V. Venkatesha, Electrochemical bulk synthesis and characterisation of hexagonal-shaped CuO nanoparticles, J. Exp. Nanosci. 8 (2013) 516-532.

DOI: 10.1080/17458080.2011.597440

[23] X. Wu, H. Bai, J. Zhang, F. Chen, G. Shi, Copper hydroxide nanoneedle and nanotube arrays fabricated by anodization of copper, J. Phys. Chem. 109 (2005) 22836-22842.

DOI: 10.1021/jp054350p

[24] S.M. Pourmortazavi, S.S. Hajimirsadeghi, M. Rahimi-Nasrabadi, I. Kohsari, Electrosynthesis and characterization of copper oxalate nanoparticles, Syn. React. Inorg. Metal-Org. Nano-Metal Chem. 42 (2012) 746-751.

DOI: 10.1080/15533174.2011.615784

[25] A.M. Joaristi, J. Juan-Alcaniz, P. Serra-Crespo, F. Kapteijn, J. Gascon, Electrochemical synthesis of some archetypical Zn2+, Cu2+, and Al3+ organic frameworks, Cryst. Growth Des. 12 (2012) 3489-3498.

DOI: 10.1021/cg300552w

[26] G.Q. Yuan, H. F Jiang, C. Lin, S.J. Liao, Shape- and size-controlled electrochemical synthesis of cupric oxide nanocrystals, J. Cryst. Growth 303 (2007) 400-406.

DOI: 10.1016/j.jcrysgro.2006.12.047

[27] H. Yang, J. Ouyang, A. Tang, Y. Xiao, X. Li, X. Dong, Y. Yu, Electrochemical synthesis and photocatalytic property of cuprous oxide nanoparticles, Mater. Res. Bull. 41 (2006) 1310-1318.

DOI: 10.1016/j.materresbull.2006.01.004

[28] S.M. Pourmortazavi, I. Kohsari, S.S. Hajimirsadeghi, Electrosynthesis and thermal characterization of basic copper carbonate nanoparticles, Cent. Eur. J. Chem. 7 (2009) 74-78.

DOI: 10.2478/s11532-008-0094-4

[29] S. Brunauer, P.H. Emmett, E. Teller, Adsorption of gases in multimolecular layers, J. Am. Chem. Soc. 60 (1938) 309-319.

DOI: 10.1021/ja01269a023

[30] E.P. Barret, L.G. Joyer, P.P. Halenda, The determination of pore volume and area distributions in porous substances. I. Computations from nitrogen isotherms, J. Am. Chem. Soc. 73 (1951) 373-380.

DOI: 10.1021/ja01145a126

[31] M.M. Benjamin, Water Chemistry, McGraw-Hill International Edition, (2002).

[32] S. Joseph, P.V. Kamath, Electrodeposition of Cu2O coatings on stainless steel substrates: Control over orientation and morphology, J. Electrochem. Soc. 154 (2007) 102-106.

[33] S. Joseph, P.V. Kamath, S. Upadhya, Electrochemical synthesis of oriented CuO coatings on stainless steel substrates: solution-mediated control over orientation, J. Electrochem. Soc. 156 (2009) 18-22.

DOI: 10.1149/1.3005959

[34] E. P. Serjeant, B. Dempsey, Ionization Constants of Organic Acids in Aqueous Solution, Pergamon, Oxford, (1979).

[35] D. -D. La, T. A. Nguyen, S. Lee, J. W. Kim, Y. S. Kim, A stable superhydrophobic and superoleophilic Cu mesh based on copper hydroxide nanoneedle arrays, App. Surface Sci. 257 (2011) 5705-5710.

DOI: 10.1016/j.apsusc.2011.01.078

[36] R. Mehdizadeh, M. Hasanzadeh, S. Sanati, L. A. Saghatforoush, Simple template-free solution route for the synthesis of Cu(OH)2 and CuO nanostructures and application for electrochemical determination three ß-blockers, J. Exp. Nanosci. 9 (2014).

DOI: 10.1080/17458080.2012.714479

[37] Z. Jia, L. Yue, Y. Zheng, Z. Xu, The convenient preparation of porous CuO via copper oxalate precursor, Mater. Res. Bull. 43 (2008) 2434-2440.

DOI: 10.1016/j.materresbull.2007.07.044

[38] M.Y. Li, W.S. Dong, C.L. Liu, Z. Liu, F.Q. Lin, Ionic liquid-assisted synthesis of copper oxalate nanowires and their conversion to copper oxide nanowires, J. Cryst. Growth 310 (2008) 4628-4634.

DOI: 10.1016/j.jcrysgro.2008.08.032

[39] W. Kang, F. Liu, Y. Su, D. Wangb, Q. Shen, The catanionic surfactant-assisted syntheses of 26-faceted and hexapod-shaped Cu2O and their electrochemical performances, Cryst. Eng. Comm. 13 (2011) 4174-4180.

DOI: 10.1039/c1ce05319a
