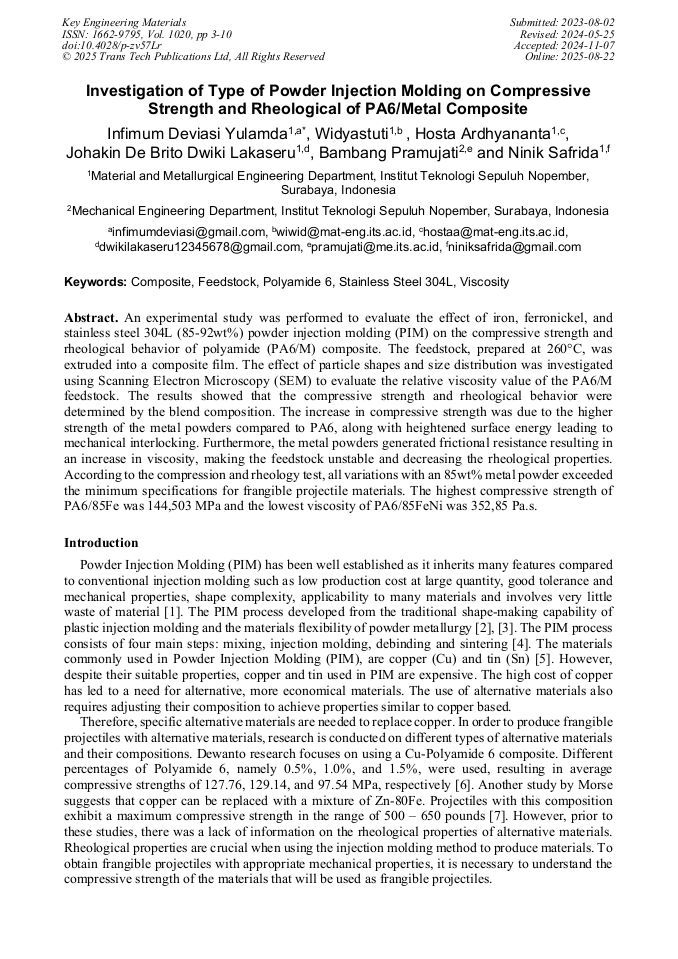

Investigation of Type of Powder Injection Molding on Compressive Strength and Rheological of PA6/Metal Composite

Abstract:

An experimental study was performed to evaluate the effect of iron, ferronickel, and stainless steel 304L (85-92wt%) powder injection molding (PIM) on the compressive strength and rheological behavior of polyamide (PA6/M) composite. The feedstock, prepared at 260°C, was extruded into a composite film. The effect of particle shapes and size distribution was investigated using Scanning Electron Microscopy (SEM) to evaluate the relative viscosity value of the PA6/M feedstock. The results showed that the compressive strength and rheological behavior were determined by the blend composition. The increase in compressive strength was due to the higher strength of the metal powders compared to PA6, along with heightened surface energy leading to mechanical interlocking. Furthermore, the metal powders generated frictional resistance resulting in an increase in viscosity, making the feedstock unstable and decreasing the rheological properties. According to the compression and rheology test, all variations with an 85wt% metal powder exceeded the minimum specifications for frangible projectile materials. The highest compressive strength of PA6/85Fe was 144.503 MPa and the lowest viscosity of PA6/85FeNi was 352.85 Pa.s.

• Periodical: Key Engineering Materials (Volume 1020)
• Pages: 3-10
• DOI: https://doi.org/10.4028/p-zv57Lr
• Online since: August 2025
• Authors: Infimum Deviasi Yulamda*, Widyastuti Widyastuti, Hosta Ardhyananta, Johakim De Brito Dwiki Lakaseru, Bambang Pramujati, Ninik Safrida
• Keywords: Composite, Feedstock, Polyamide 6, Stainless Steel 304L, Viscosity

References

[1] M. H. I. Ibrahim, N. Muhamad, and A. B. Sulong, "Rheological characterization of water atomised stainless steel SS316L for micro MIM," in Advanced Materials Research, 2011, p.129–134.

DOI: 10.4028/www.scientific.net/AMR.264-265.129

[2] F. Arès, D. Delbergue, and V. Demers, "Injection Flow Rate Threshold Preventing Atypical In-Cavity Pressure during Low-Pressure Powder Injection Molding," Powders, vol. 2, no. 4, p.709–726, Nov. 2023.

DOI: 10.3390/powders2040044

[3] J. Merhar, "Overview of metal injection moulding," Metal Powder Report, vol. 45, no. 5, p.339–342, 1990.

DOI: 10.1016/S0026-0657(10)80242-5

[4] J. Gonzlez-Gutirrez, G. Beulke, and I. Emri, "Powder Injection Molding of Metal and Ceramic Parts," in Some Critical Issues for Injection Molding, InTech, 2012.

DOI: 10.5772/38070

[5] Groover, M. P. Fundamentals of modern manufacturing: materials, process, and system fifth edition (G. L. Tonkay (ed.)), 2013.

[6] Callister, W. D., & Rethwisch, D. G. Fundamentals of materials science and engineering: an integrated approach. Wiley, 2015.

[7] Marianna. Kontopoulou, Applied polymer rheology : polymeric fluids with industrial applications. Wiley, 2012.

[8] Folaron, "( 12 ) United States Patent," 2020.

[9] E.E. Gdoutos, "Solid Mechanics and Its Applications." [Online]. Available: http://www.springer.com/series/6557

[10] A. G. Hasib et al., "Rheology scaling of spherical metal powders dispersed in thermoplastics and its correlation to the extrudability of filaments for 3D printing," Addit Manuf, vol. 41, May 2021.

DOI: 10.1016/j.addma.2021.101967

[11] Y. Li, L. Li, and K. A. Khalil, "Effect of powder loading on metal injection molding stainless steels," J Mater Process Technol, vol. 183, no. 2–3, p.432–439, Mar. 2007.

DOI: 10.1016/j.jmatprotec.2006.10.039

[12] B. Grümer and C. Hopmann, "The influence of recycling on the viscosity of polyamide 6 and a general modeling approach," Progress in Rubber, Plastics and Recycling Technology, vol. 34, no. 3, p.158–167, Aug. 2018.

DOI: 10.1177/1477760618798427

[13] G. Li, H. Xia, Y. Lei, W. Bin Yang, T. Liu, and J. P. He, "Highly conductive polymer composites with excellent toughness, fluidity and temperature-independent conductivity," J Appl Polym Sci, vol. 137, no. 24, Jun. 2020.

DOI: 10.1002/app.48820

[14] A. M. Abdullah, T. N. A. T. Rahim, W. N. F. W. Hamad, D. Mohamad, H. M. Akil, and Z. A. Rajion, "Mechanical and cytotoxicity properties of hybrid ceramics filled polyamide 12 filament feedstock for craniofacial bone reconstruction via fused deposition modelling," Dental Materials, vol. 34, no. 11, pp. e309–e316, Nov. 2018.

DOI: 10.1016/j.dental.2018.09.006

[15] Y. S. Kim, J. K. Kim, and E. S. Jeon, "Effect of the compounding conditions of polyamide 6, carbon fiber, and Al2O3 on the mechanical and thermal properties of the composite polymer," Materials, vol. 12, no. 18, Sep. 2019.

DOI: 10.3390/ma12183047

[16] Y. S. Kim, J. K. Kim, and E. S. Jeon, "Effect of the compounding conditions of polyamide 6, carbon fiber, and Al2O3 on the mechanical and thermal properties of the composite polymer," Materials, vol. 12, no. 18, Sep. 2019.

DOI: 10.3390/ma12183047

[17] T. M. Majka, M. Cokot, and K. Pielichowski, "Studies on the thermal properties and flammability of polyamide 6 nanocomposites surface-modified via layer-by-layer deposition of chitosan and montmorillonite," J Therm Anal Calorim, vol. 131, no. 1, p.405–416, Jan. 2018.

DOI: 10.1007/s10973-017-6849-4
