Comparison of Two Typical Adhesive Fracture Mechanics Considering Hygrothermal Aging

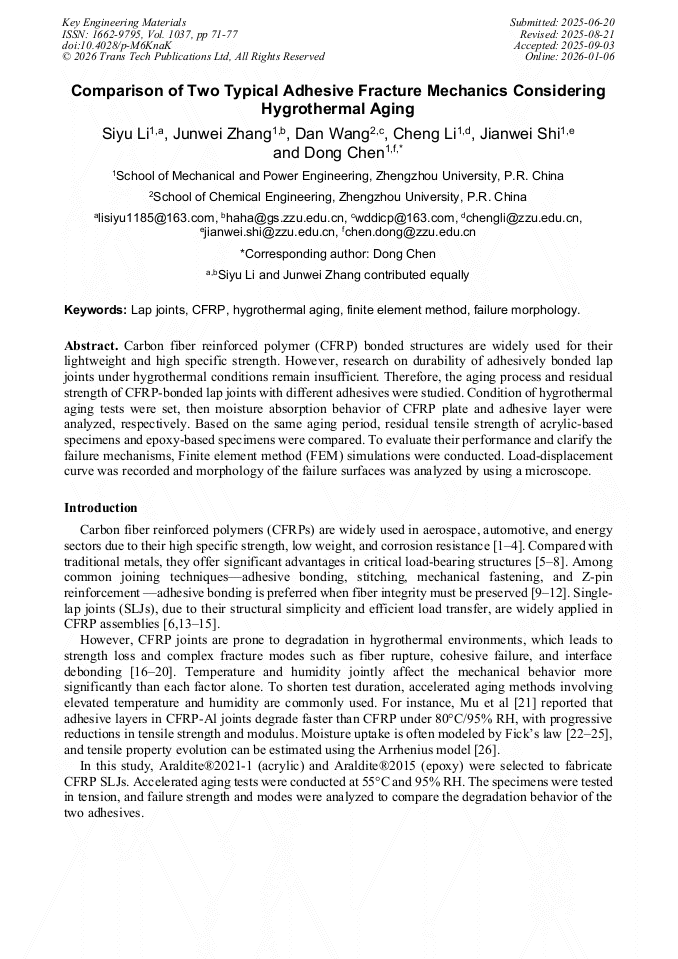

Article Preview

Abstract:

Carbon fiber reinforced polymer (CFRP) bonded structures are widely used for their lightweight and high specific strength. However, research on durability of adhesively bonded lap joints under hygrothermal conditions remain insufficient. Therefore, the aging process and residual strength of CFRP-bonded lap joints with different adhesives were studied. Condition of hygrothermal aging tests were set, then moisture absorption behavior of CFRP plate and adhesive layer were analyzed, respectively. Based on the same aging period, residual tensile strength of acrylic-based specimens and epoxy-based specimens were compared. To evaluate their performance and clarify the failure mechanisms, Finite element method (FEM) simulations were conducted. Load-displacement curve was recorded and morphology of the failure surfaces was analyzed by using a microscope.

You might also be interested in these eBooks
Structural Metals, Fracture Mechanics and Additive Manufacturing View Preview

Info:

Periodical:

Key Engineering Materials (Volume 1037)

Pages:

71-77

DOI:

https://doi.org/10.4028/p-M6KnaK

Citation:

Cite this paper

Online since:

January 2026

Authors:

Si Yu Li, Jun Wei Zhang, Dan Wang, Cheng Li, Jian Wei Shi, Dong Chen*

Keywords:

CFRP, Failure Morphology, Finite Element Method, Hygrothermal Aging, Lap Joints

Export:

RIS, BibTeX

Price:

Permissions CCC:

Request Permissions

Permissions PLS:

Request Permissions

Сopyright:

© 2026 Trans Tech Publications Ltd. All Rights Reserved

Share:

Citation:

* - Corresponding Author

References

[1] D. Chen, N. Noda, R. Takaki and Y. Sano, Intensity of singular stress fields (ISSFs) in micro-bond test in comparison with ISSFs in pull-out test. Int. J. Mech. Sci. 183 (2020) p.105817.

DOI: 10.1016/j.ijmecsci.2020.105817

Google Scholar

[2] N. Noda, D. Chen, G. Zhang and Y. Sano, Single-fiber pull-out analysis comparing the intensities of singular stress fields (ISSFs) at fiber end/entry points. Int. J. Mech. Sci. 165 (2020) p.105196.

DOI: 10.1016/j.ijmecsci.2019.105196

Google Scholar

[3] J. Shi, X. Yang, K. Du, Q. Guo and Z. Bai, Effects of structural parameters on the load distribution unevenness in CFRP hybrid bonded-bolted joint. Polym. Compos. (2024)

DOI: 10.1002/pc.29269

Google Scholar

[4] J. Shi, J. Zhang, K. Du, Q. Guo, Y. Hou and C. Dong, A Multiscale Modeling and Experimental Study on the Tensile Strength of Plain-Woven Composites with Hybrid Bonded-Bolted Joints. Polymers (Basel). 16 (14) (2024)

DOI: 10.3390/polym16142074

Google Scholar

[5] K. Cui, G. Song, W. Wang, H. Liu, Y. Yang, C. Sun, Z. Zhao, H. Lin and D. Chen, Force analysis and distribution evolution of Fe3O4 nanoparticles in magnetic fluids. Chinese J. Phys. 88 (2024) p.982–90.

DOI: 10.1016/j.cjph.2024.02.037

Google Scholar

[6] D. Wang, H. Wu, W. Zheng, Y. Zhao, G. Tian, W. Wang and D. Chen, A Mixed-Integer Linear Programming Model for Addressing Efficient Flexible Flow Shop Scheduling Problem with Automatic Guided Vehicles Consideration. Appl. Sciense-Basel 15 (6) (2025)

DOI: 10.3390/app15063133

Google Scholar

[7] P. Wang, D. Li, L. Wang, S. Guo, Y. Zhao, H. Shang, D. Wang and B. Zhang, Ultrafine CoNi alloy nanoparticles anchored on surface-roughened halloysite nanotubes for highly efficient catalytic hydrogenation of 4-nitrophenol. Chem. Eng. J. 495 (2024)

DOI: 10.1016/j.cej.2024.153631

Google Scholar

[8] D. Wang, H. Zhang, M. Ren, Y. Fan, Y. Gao, Z.Y. Lv, Y. Yu and J. Chen, Electrophilic chlorination of dibenzo-p-dioxin and dibenzofuran over composite copper and iron chlorides and oxides in combustion flue gas. Chemosphere 256 (2020)

DOI: 10.1016/j.chemosphere.2020.127065

Google Scholar

[9] Y. Zhao, Y. Yan, T. Shen, Y. Yang, Y. Zhao, H. Shang, B. Zhang and D. Wang, Robust degradation of tetracycline hydrochloride by electro-assisted activation of peroxymonosulfate over porous cobalt-manganese oxide nanowire array in situ grown on nickel foam. J. Environ. Chem. Eng. 12 (6) (2024)

DOI: 10.1016/j.jece.2024.114662

Google Scholar

[10] S. Fu, D. Chen, J. Shi and C. Li, Low-velocity impact of functional gradient honeycomb sandwich plate with CFRP face sheets. Acta Mater. Compos. Sin. 40 (7) (2023) p.4226–36.

Google Scholar

[11] Y. Yang, J. Shi, C. Li and D. Chen, Multi-scale and ECPL Model Based Loading Capacity Analysis of Hybrid Bond-bolted Joint for Plain Woven Composite. Jixie Gongcheng Xuebao/Journal Mech. Eng. 59 (22) (2023) p.287–301.

DOI: 10.3901/jme.2023.22.287

Google Scholar

[12] Y. Yang, K. Du, R. Guo, J. Du, F. Chen and J. Shi, Parametric study on the load-carrying capacity of plain-woven composites hybrid bonded-bolted joints. J. Compos. Mater. 59 (2) (2025) p.207–22.

DOI: 10.1177/00219983241293685

Google Scholar

[13] N. Noda, D. Chen and Y. Sano, Reference solution and proportional method to calculate intensity of singular stress field (ISSF) at the interface corner where reinforced fiber enters resin matrix. Mech. Adv. Mater. Struct. 29 (20) (2022) p.2962–72.

DOI: 10.1080/15376494.2021.1882624

Google Scholar

[14] D. Wang, H. Zhang, Y. Fan, R. Cao, Y. Gao and J. Chen, Synergistic effect of mixed Cu and Fe oxides and chlorides on electrophilic chlorination of dibenzo-p-dioxin and dibenzofuran. Sci. Total Environ. 721 (2020)

DOI: 10.1016/j.scitotenv.2020.137563

Google Scholar

[15] D. Wang, H. Zhang, Y. Fan, M. Ren, R. Cao and J. Chen, Electrophilic Chlorination of Naphthalene in Combustion Flue Gas. Environ. Sci. Technol. 53 (10) (2019) p.5741–9.

DOI: 10.1021/acs.est.9b00350

Google Scholar

[16] W. Han, Y. Hou, J. Shi, L. Meng and T. Sapanathan, Experimental and numerical investigation on the mechanical behavior of 3D star-shaped auxetic structure. Compos. Struct. 354 (2025)

DOI: 10.1016/j.compstruct.2024.118803

Google Scholar

[17] J. Song, D. Chen, Y. Su, D. Wang, J. Shi, K. Cui, W. Wang and N. Noda, Boundary equivalent model and optimization of glass fiber reinforced composite storage tanks based on theory of plates and shells. J. Phys. Conf. Ser. 2888 (The 11th Global Conference on Polymer and Composite Materials CL-Xi'an, China) (2024) p.012007 (10 pp.)-012007 (10 pp.).

DOI: 10.1088/1742-6596/2888/1/012007

Google Scholar

[18] Z. Yin, Y. Tie, Y. Duan, C. Li and D. Chen, Impact damage assessment in patch-repaired carbon fiber-reinforced polymer laminates using the nonlinear Lamb wave-mixing technique. Polym. Compos. 43 (11) (2022) p.8152–69.

DOI: 10.1002/pc.26984

Google Scholar

[19] P. Wang, L. Wang, Y. Zhao, B. Zhang and D. Wang, Progress in Degradation of Volatile Organic Compounds by Catalytic Oxidation: a Review Based on the Kinds of Active Components of Catalysts. Water Air Soil Pollut. 235 (1) (2024)

DOI: 10.1007/s11270-023-06802-x

Google Scholar

[20] J. Zhou, X. Feng, Y. Zhao, R. Cui, D. Wang and B. Zhang, Noble-metal-free CuNi/Co3O4 hybrid nanosheets as efficient and magnetically recyclable catalysts for hydrolysis of ammonia borane. J. Alloys Compd. 923 (2022)

DOI: 10.1016/j.jallcom.2022.166345

Google Scholar

[21] W. Mu, G. Qin, J. Na, W. Tan, H. Liu and J. Luan, Effect of alternating load on the residual strength of environmentally aged adhesively bonded CFRP-aluminum alloy joints. Compos. Part B-Engineering 168 (2019) p.87–97.

DOI: 10.1016/j.compositesb.2018.12.070

Google Scholar

[22] R. Kahraman and M. Al-Harthi, Moisture diffusion into aluminum powder-filled epoxy adhesive in sodium chloride solutions. Int. J. Adhes. Adhes. 25 (4) (2005) p.337–41.

DOI: 10.1016/j.ijadhadh.2004.10.003

Google Scholar

[23] Y.C. Lin and X. Chen, Moisture sorption-desorption-resorption characteristics and its effect on the mechanical behavior of the epoxy system. Polymer (Guildf). 46 (25) (2005) p.11994–2003.

DOI: 10.1016/j.polymer.2005.10.002

Google Scholar

[24] J.J.M. Machado, E.A.S. Marques, A.Q. Barbosa and L.F.M. da Silva, Effect of hygrothermal aging on the quasi-static behaviour of CFRP joints varying the overlap length. Compos. Struct. 214 (2019) p.451–62.

DOI: 10.1016/j.compstruct.2019.02.035

Google Scholar

[25] J. Zhang, X. Cheng, X. Guo, J. Bao and W. Huang, Effect of environment conditions on adhesive properties and material selection in composite bonded joints. Int. J. Adhes. Adhes. 96 (2020)

DOI: 10.1016/j.ijadhadh.2018.12.001

Google Scholar

[26] S. Li, J. Hu and H. Ren, The Combined Effects of Environmental Conditioning and Sustained Load on Mechanical Properties of Wet Lay-Up Fiber Reinforced Polymer. Polymers (Basel). 9 (7) (2017)

DOI: 10.3390/polym9070244

Google Scholar

[27] E.L. McKague Jr., J.D. Reynolds and J.E. Halkias, Moisture diffusion in fiber reinforced plastics. Trans. ASME. Ser. H, J. Eng. Mater. Technol. 98 (1) (1976) p.92–5.

DOI: 10.1115/1.3443342

Google Scholar

[28] W. Zhu, D. Chen, J. Shi, J. Zhang, H. Zhao and C. Li, Design and optimization of a temperature controller with low overshoot, fast respond and high COP based on water-source thermoelectric heat pump. Appl. Therm. Eng. 242 (2024) p.122473.

DOI: 10.1016/j.applthermaleng.2024.122473

Google Scholar

[29] N. Noda, D. Chen, R. Takaki, A. Inoue, G. Zhang and Y. Sano, Intensity of singular stress fields of an embedded fiber under pull-out force. Zair. Soc. Mater. Sci. Japan 67 (12) (2018) p.1073–9.

DOI: 10.2472/jsms.67.1073

Google Scholar

[30] P. Wang, D. Chen, T. Shen, A. Cheng and D. Wang, Halloysite Nanotubes-Based Co-Mn Composite Oxides for Efficient Degradation of Tetracycline Hydrochloride via Peroxymonosulfate Activation. J. Alloys Compd. 1037 (2025) p.182551.

DOI: 10.1016/j.jallcom.2025.182551

Google Scholar
