Features of the Formation of the Structure of Welded Joints of Structural Steels during Underwater Welding with Filler Wire 12X18N9T Using External Electromagnetic Influence

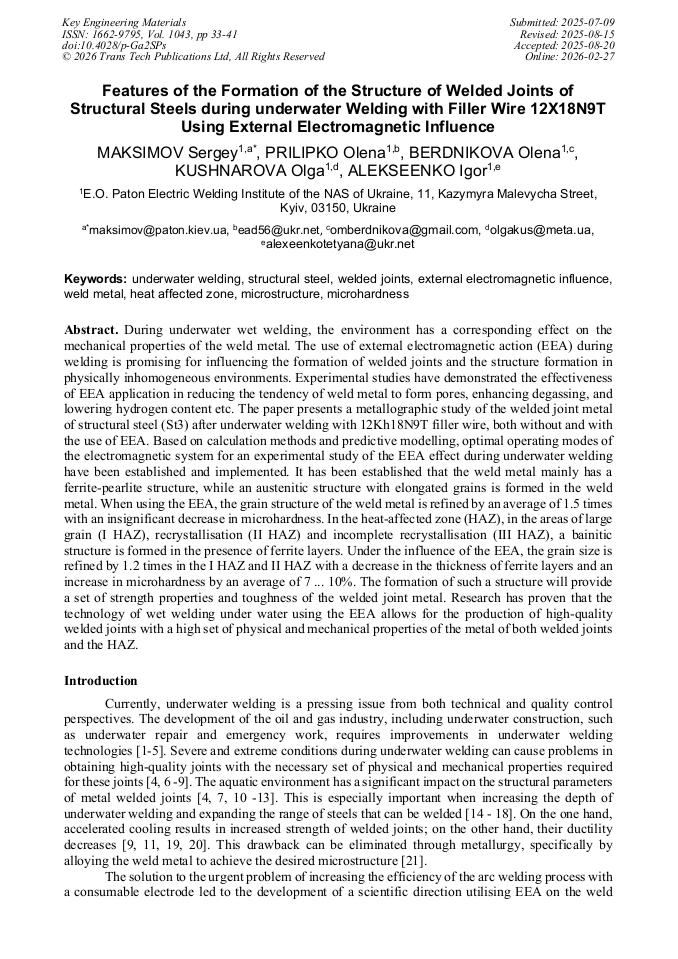

Article Preview

Abstract:

During underwater wet welding, the environment has a corresponding effect on the mechanical properties of the weld metal. The use of external electromagnetic action (EEA) during welding is promising for influencing the formation of welded joints and the structure formation in physically inhomogeneous environments. Experimental studies have demonstrated the effectiveness of EEA application in reducing the tendency of weld metal to form pores, enhancing degassing, and lowering hydrogen content etc. The paper presents a metallographic study of the welded joint metal of structural steel (St3) after underwater welding with 12Kh18N9T filler wire, both without and with the use of EEA. Based on calculation methods and predictive modelling, optimal operating modes of the electromagnetic system for an experimental study of the EEA effect during underwater welding have been established and implemented. It has been established that the weld metal mainly has a ferrite-pearlite structure, while an austenitic structure with elongated grains is formed in the weld metal. When using the EEA, the grain structure of the weld metal is refined by an average of 1.5 times with an insignificant decrease in microhardness. In the heat-affected zone (HAZ), in the areas of large grain (I HAZ), recrystallisation (II HAZ) and incomplete recrystallisation (III HAZ), a bainitic structure is formed in the presence of ferrite layers. Under the influence of the EEA, the grain size is refined by 1.2 times in the I HAZ and II HAZ with a decrease in the thickness of ferrite layers and an increase in microhardness by an average of 7 ... 10%. The formation of such a structure will provide a set of strength properties and toughness of the welded joint metal. Research has proven that the technology of wet welding under water using the EEA allows for the production of high-quality welded joints with a high set of physical and mechanical properties of the metal of both welded joints and the HAZ.

You might also be interested in these eBooks
Metallurgy and Processing, Fatigue, Fractography and Failure Analysis View Preview

Info:

Periodical:

Key Engineering Materials (Volume 1043)

Pages:

33-41

DOI:

https://doi.org/10.4028/p-Ga2SPs

Citation:

Cite this paper

Online since:

February 2026

Authors:

Sergey Maksimov*, Olena A. Prilipko, Olena M. Berdnikova, Olga Kushnarova, Igor Alekseenko

Keywords:

External Electromagnetic Influence, Heat Affected Zone, Microhardness, Microstructure, Structural Steel, Underwater Welding, Weld Metal, Welded Joints

Export:

RIS, BibTeX

Price:

Permissions CCC:

Request Permissions

Permissions PLS:

Request Permissions

Сopyright:

© 2026 Trans Tech Publications Ltd. All Rights Reserved

Share:

Citation:

* - Corresponding Author

References

[1] C.W. Liao, K.C. Yao, C.T. Tsai, J-R.Xu, W.L. Huang, W.S. Ho, Y.P. Wang, Constructing and Validating Professional Competence Indicators for Underwater Welding Technicians for Offshore Wind Power Generation in Taiwan, Sustainability. 15 (2023)

DOI: 10.3390/su151410801

Google Scholar

[2] Ayush Bakrewal, Aldrin Antonio Agostinho Fernandes, Kiiran Jadhav, Siddesh Sutrave, Atishay Jain, A Recent Progress in Performance and Property Improvement in Underwater Welding, International Journal for Research in Applied Science & Engineering Technology (IJRASET). 9 (2021)

DOI: 10.22214/ijraset.2021.39127

Google Scholar

[3] Soumyabrata Basak, Mounarik Mondal, Sam Yaw Anaman, Kun Gaо, Sung-Tae Hong, Hoon-Hwe Cho, Gas pocket-assisted underwater friction stir spot welding, Journal of Materials Processing Technology. 320 (2023) 118100. https://doi.org/j.,matprotec.2023.11810

DOI: 10.1016/j.jmatprotec.2023.118100

Google Scholar

[4] H.A. Gonzalez Romero, E.A. Bastos Blandón, L.P. Casadiego Miranda, E.E. Niebles Nuñez, Influence of Heat Input on the Weldability of ASTM A131 DH36 Fillet Joints Welded by SMAW Underwater Wet Welding, Sustainability.15 (2023) 11222

DOI: 10.3390/su151411222

Google Scholar

[5] R.A. White, R. Fusaro, M.G. Jones, R.R. Milian-Rodriguez, Underwater cladding with laser beam and plasma arc welding, Welding Journal. 1 (1997) 57-61.

Google Scholar

[6] W. Winarto, D. Purnama, I. Churniawan, The effect of different rutile electrodes on mechanical properties of underwater wet welded AH-36 steel plates, AIP Conf. Proc. 1945 (2018) 020048

DOI: 10.1063/1.5030270

Google Scholar

[7] Junichi Kinugawa, Sadao Fukushima, Takeshi Fukushima, Transformation Behavior of Heat-Affected Zone during Underwater Wet Welding. Journal of the japan welding society. 48 (5) (1979) 272-278

DOI: 10.2207/qjjws1943.48.272

Google Scholar

[8] L. Yang, Microstructure and mechanical properties of FCTIG-welded DH36 steel with rutile-type and basic-type flux cored wires, J. Mater. Process. Technol. 275 (2019) 116363. https://doi.org/j.jmatprotec.2019.116363

DOI: 10.1016/j.jmatprotec.2019.116363

Google Scholar

[9] D. Fydrych, G. Rogalski, J. Labanowski, Weldability of high strength steel in underwater environment. Weld. Int. 30 (2016) 175–181.

DOI: 10.1080/09507116.2014.937618

Google Scholar

[10] P. Vashishtha, R. Wattal, S. Pandey, N. Bhadauria, Problems encountered in underwater welding and remedies, Mater. Today Proc. 64 (2022) 1433–1439. https://doi.org/j.matpr.2022.04.634

DOI: 10.1016/j.matpr.2022.04.634

Google Scholar

[11] Jiayu You, Zhuying Li, Jialei Zhu, Hang Qin, Yongqing Li, Zhihai Cai, Underwater wet laser welding of duplex stainless steel under various water depths, Materials Science and Engineering. 891 (2024) 145930

DOI: 10.1016/j.msea.2023.145930

Google Scholar

[12] A.D. Razmyshlyaev, M.V. Ageeva, Influence of magnetic field on crystallization of welds in arc welding, The Paton Welding Journal. 1 (2019), 25 - 27

DOI: 10.15407/tpwj2019.01.05

Google Scholar

[13] A.D. Razmyshlyaev, M.V. Ageeva, E.V. Lavrova, Refinement of metal structure in arc surfacing under the effect of longitudinal magnetic field, The Paton Welding Journal. 2 (2019), 19 - 21. https://doi.org

DOI: 10.15407/tpwj2019.02.03

Google Scholar

[14] E. Surojo, A.H. Gumilang, T. Triyono, A.R. Prabowo, E.P. Budiana, N. Muhayat, Effect of Water Flow on Underwater Wet Welded A36 Steel, Metals. 11 (2021) 682

DOI: 10.3390/met11050682

Google Scholar

[15] J. Pan, L. Yang, S. Hu, S. Chai, Numerical analysis of thermal cycle characteristics and prediction of microstructure in multi-pass UWW, Int. J. Adv. Manuf. Technol. 84 (2016) 1095–1102

DOI: 10.1007/s00170-015-7787-6

Google Scholar

[16] G. Sun, Z. Wang, Yi Lu, M. Chen, K. Yang and Z. Ni. Underwater Laser Welding/Cladding for High‑performance Repair of Marine Metal, Materials. Chinese Journal of Mechanical Engineering. 35 (2022)

DOI: 10.1186/s10033-021-00674-0

Google Scholar

[17] Z. Colak, Y. Ayan, N. Kahraman, Weld morphology and mechanical performance of marine structural steel welded underwater in a real marine environment, Int. J. Adv. Manuf. Technol. 109 (2020) 491–501

DOI: 10.1007/s00170-020-05679-y

Google Scholar

[18] M. Rieck, B. Emde, J. Koglin, J. Hermsdor. Laser-Assisted Flux-Cored Arc Welding Underwater, Lasers in Manufacturing and Materials Processing. 10 (2023) 266–275

DOI: 10.1007/s40516-023-00206-9

Google Scholar

[19] Y. Long Fu, N. Guo, J. Cai Feng. Parametric Study of Underwater Laser Welding on 304 Austenite Stainless Steel, Materials Science Forum. 972 (2019) 222-228

DOI: 10.4028/www.scientific.net/MSF.972.222

Google Scholar

[20] W. Gao, D. Wang, F. Cheng, X. Di, C. Deng, W. Xu. Microstructural and mechanical performance of underwater wet welded S355 steel, Mater. Process. Technol. 238 (2016) 333–340

DOI: 10.1016/j.jmatprotec.2016.07.039

Google Scholar

[21] Chernysh V.P., Kuznetsov V.D., Briskman A.N., Shelenkov G.M. Welding with electromagnetic stirring, K.: Tekhnika, 1983.

Google Scholar

[22] N.V. Zaytseva, C.M. Zaharov, S.Yu. Maksimov, E.O. Prilipko, Underwater welding in an alternating magnetic field, Metallophysics and advanced technologies, 11 (2009) 1589-1596.

Google Scholar

[23] A.D. Razmyshlyaev, P.A. Vydmysh, M.V. Ageeva, On the problem of modeling transverse magnetic field structure in welding pool zone, The Paton Welding Journal, 7 (2018) 15 – 19

DOI: 10.15407/tpwj2018.07.03

Google Scholar

[24] S. Maksimov, O. Berdnikova, O. Prilipko, T. Alekseenko, Y. Polovetskyi. Peculiarities Formation of Welded Joints under the External Electromagnetic Influence, Key Engineering Materials. 973 (2024) 73-79

DOI: 10.4028/p-72TVPo

Google Scholar

[25] A.D. Razmyshlyaev, M.V. Ageeva, Calculation of characteristics of alternating transverse magnetic field, having effect on drop transfer in arc welding and surfacing, The Paton Welding Journal. 4 (2019) 23 – 26

DOI: 10.15407/tpwj2019.04.05

Google Scholar

[26] О.М. Berdnikova, S.Yu. Maksimov, O.O. Prilipko, T.O. Alekseenko, E.V. Polovetsky, I.I. Alekseenko, Influence of External Electromagnetic Fields on the Structure of Joints in the Course of Underwater Welding, Materials Science. 57 (1) (2021) 61–70

DOI: 10.1007/s11003-021-00515-4

Google Scholar

[27] O. D. Razmyshlyaev, S. Yu. Maksimov, O. M. Berdnikova, O. O. Prilipko, O. S. Kushnarova, I. I. Alekseienko, Structure of low-alloy steel welded joints under action of an external electromagnetic field, Materials Science. 58 (7) (2023) 616–620

DOI: 10.1007/s11003-023-00707-0

Google Scholar

[28] A.D. Razmyshlyaev, P.A. Vydmysh, M.V. Ageeva, Procedure for determination of induction of controlling magnetic field in pool zone during arc welding, The Paton Welding Journal. 8 (2018) 44 – 47

DOI: 10.15407/tpwj2018.08.08

Google Scholar

[29] O.M. Bialik, S.E. Kondratyuk, M.V. Kindrachuk, V.S. Chernenko, Structural analysis of metals. Metallography. Fractography. Polytechnic, Kyiv, 2006.

Google Scholar

[30] O.D. Razmyshlyaev, M.V. Ageeva, On mechanism of weld metal structure refinement in arc welding under effect of magnetic fields (Review), Avtomaticheskaya Svarka (Automatic Welding). 3 (2018) 29-33

DOI: 10.15407/as2018.03.05

Google Scholar
