Implementing Inkjet Printing to Manufacture Piezopolymer Films for Sensing Applications

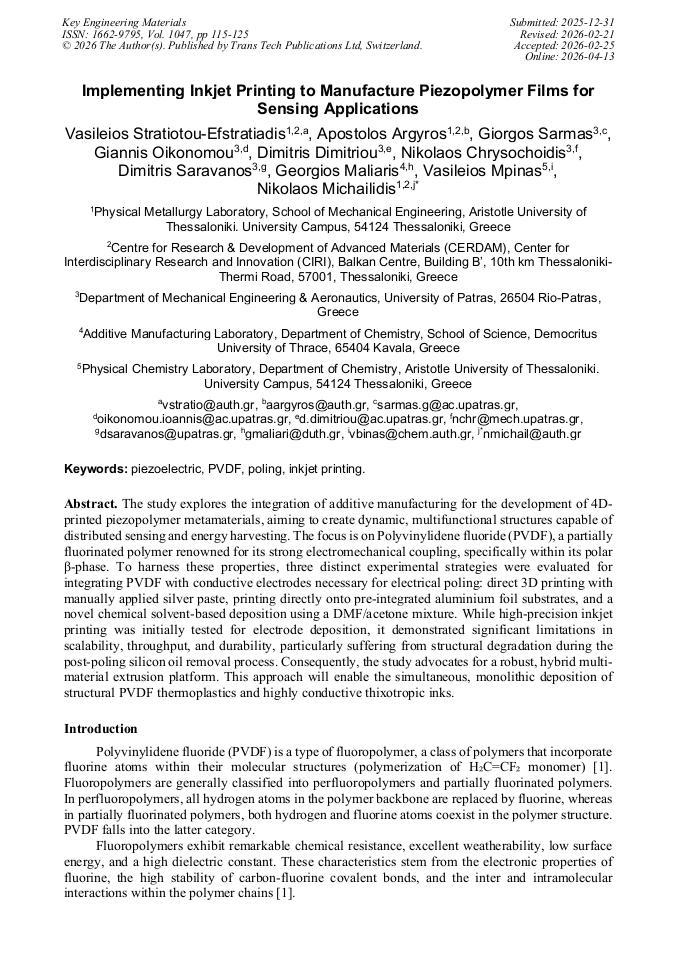

Article Preview
View Pdf By email

Abstract:

The study explores the integration of additive manufacturing for the development of 4D-printed piezopolymer metamaterials, aiming to create dynamic, multifunctional structures capable of distributed sensing and energy harvesting. The focus is on Polyvinylidene fluoride (PVDF), a partially fluorinated polymer renowned for its strong electromechanical coupling, specifically within its polar β-phase. To harness these properties, three distinct experimental strategies were evaluated for integrating PVDF with conductive electrodes necessary for electrical poling: direct 3D printing with manually applied silver paste, printing directly onto pre-integrated aluminium foil substrates, and a novel chemical solvent-based deposition using a DMF/acetone mixture. While high-precision inkjet printing was initially tested for electrode deposition, it demonstrated significant limitations in scalability, throughput, and durability, particularly suffering from structural degradation during the post-poling silicon oil removal process. Consequently, the study advocates for a robust, hybrid multi-material extrusion platform. This approach will enable the simultaneous, monolithic deposition of structural PVDF thermoplastics and highly conductive thixotropic inks.

You might also be interested in these eBooks
Additive Manufacturing View Preview

Info:

Periodical:

Key Engineering Materials (Volume 1047)

Pages:

115-125

Online since:

April 2026

Authors:

Vasileios Stratiotou-Efstratiadis, Apostolos Argyros, Georgios Sarmas, Giannis Oikonomou, Dimitrios Dimitriou, Nikolaos Chrysochoidis, Dimitris Saravanos, Georgios Maliaris, Vasileios Mpinas, Nikolaos Michailidis*

Keywords:

Contact Poling, Corona Poling, Multi-Material 3D-Printing, Piezoelectric, PVDF

Export:

RIS, BibTeX

Permissions:

Creative Commons CC BY 4.0

Share:

* - Corresponding Author

References

[1] Smart, B. E., Feiringa, A. E., Krespana, C. G., Hungb, M., Resnickb, P. R., et al., 1995, New industrial fluoropolymer science and technology, Macromol. Symposia, 98:753–767.

DOI: 10.1002/masy.19950980164

Google Scholar

[2] Tsonos, C., Pandis, C., Soin, N., Sakellari, D., Myrovali, E., et al., 2015, Multifunctional nanocomposites of poly(vinylidene fluoride) reinforced by carbon nanotubes and magnetite nanoparticles, Express Polymer Letters, 9/12:1104–1118.

DOI: 10.3144/expresspolymlett.2015.99

Google Scholar

[3] Jang, S., Baek, G., Cheon, M., Lee, C., Kim, T., et al., 2025, Studies on phase transformations and crystallinity changes of PVDF thin films via hot-pressing treatment, Polymer, 320/128094:1–8.

DOI: 10.1016/j.polymer.2025.128094

Google Scholar

[4] Ahn, Y., Lim, J. Y., Hong, S. M., Lee, J., Ha, J., et al., 2013, Enhanced piezoelectric properties of electrospun poly(vinylidene fluoride)/multiwalled carbon nanotube composites due to high β-phase formation in poly(vinylidene fluoride), Journal of Physical Chemistry C, 117/22:11791–11799.

DOI: 10.1021/jp4011026

Google Scholar

[5] Teng, H., 2012, Overview of the development of the fluoropolymer industry, Applied Sciences, 2/2:496–512.

DOI: 10.3390/app2020496

Google Scholar

[6] Inc., T. F. S., Thermofischer (SEM). [Online]. Available: https://assets.thermofisher.com/TFS-Assets/MSD/Datasheets/desktop-sem-datasheet-prox-DS0300.pdf. [Accessed: 10-Aug-2022].

Google Scholar

[7] Cao, T., Yang, Z., Zhang, H., Wang, Y., 2024, Heliyon Inkjet printing quality improvement research progress : A review, Heliyon, 10/10:e30163.

DOI: 10.1016/j.heliyon.2024.e30163

Google Scholar

[8] Ko, S. H., Pan, H., Grigoropoulos, C. P., Luscombe, C. K., Frechet, J. M., et al., 2007, All-inkjet-printed flexible electronics fabrication on a polymer substrate by low-temperature high-resolution selective laser sintering of metal nanoparticles, Nanotechnology, 18/345202:1–8.

DOI: 10.1088/0957-4484/18/34/345202

Google Scholar

[9] Hutchings, I. M., Martin, G. M., 2012, Inkjet Technology for Digital Fabrication. Chichester: John Wiley & Sons.

Google Scholar

[10] Kim, H., Torres, F., Wu, Y., Villagran, D., 2017, Integrated 3D printing and corona poling process of PVDF piezoelectric films for pressure sensor application, Smart Materials and Structures, 26/8:1–9.

DOI: 10.1088/1361-665X/aa738e

Google Scholar

[11] Wu, L., Jin, Z., Liu, Y., Ning, H., Liu, X., et al., 2022, Recent advances in the preparation of PVDF-based piezoelectric materials, Nanotechnology Reviews, 11:1386–1407.

DOI: 10.1515/ntrev-2022-0082

Google Scholar

[12] Pascu, M., Nicolas, D., Poncin-epaillard, F., Vasile, C., 2006, Surface modification of PVDF by plasma treatment for electroless metallization, Journal of Optoelectronics and Advanced Materials, 8/3:1062–1064.

DOI: 10.1002/3527605584.ch13

Google Scholar
