Effect of Hatch Distance and Scanning Speed Combinations at Constant Volumetric Energy Density on the Materials Properties of IN939 Fabricated by Powder Bed Fusion-Laser Beam

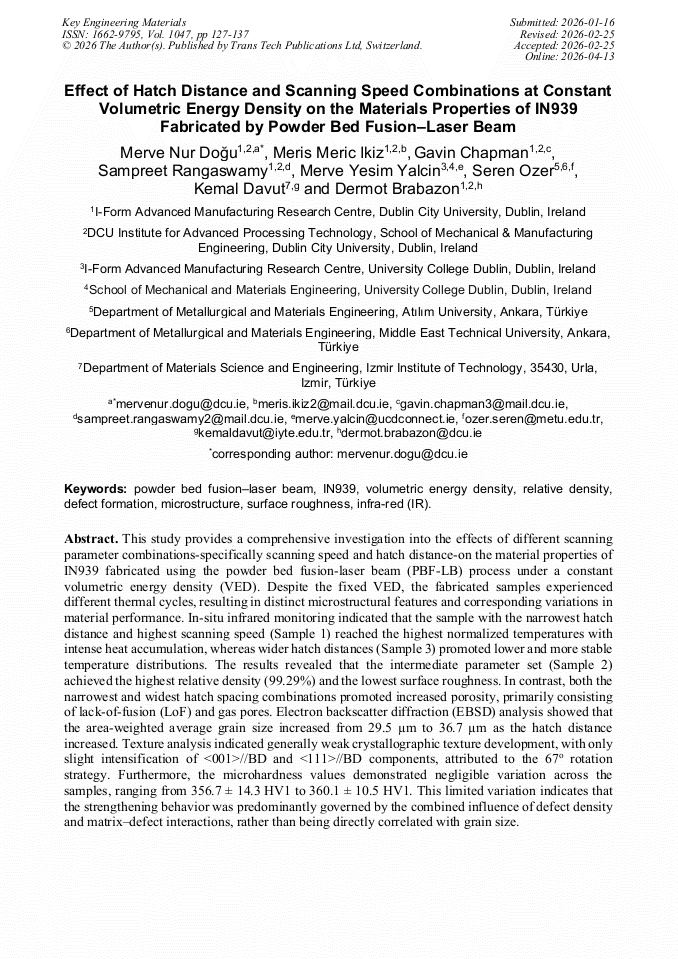

Article Preview
View Pdf By email

Abstract:

This study provides a comprehensive investigation into the effects of different scanning parameter combinations—specifically scanning speed and hatch distance—on the material properties of IN939 fabricated using the powder bed fusion-laser beam (PBF-LB) process under a constant volumetric energy density (VED). Despite the fixed VED, the fabricated samples experienced different thermal cycles, resulting in distinct microstructural features and corresponding variations in material performance. In-situ infrared monitoring indicated that the sample with the narrowest hatch distance and highest scanning speed (Sample 1) reached the highest normalized temperatures with intense heat accumulation, whereas wider hatch distances (Sample 3) promoted lower and more stable temperature distributions. The results revealed that the intermediate parameter set (Sample 2) achieved the highest relative density (99.29%) and the lowest surface roughness. In contrast, both the narrowest and widest hatch spacing combinations promoted increased porosity, primarily consisting of lack-of-fusion (LoF) and gas pores. Electron backscatter diffraction (EBSD) analysis showed that the area-weighted average grain size increased from 29.5 µm to 36.7 µm as the hatch distance increased. Texture analysis indicated generally weak crystallographic texture development, with only slight intensification of <001>//BD and <111>//BD components, attributed to the 67o rotation strategy. Furthermore, the microhardness values demonstrated negligible variation across the samples, ranging from 356.7 ± 14.3 HV1 to 360.1 ± 10.5 HV1. This limited variation indicates that the strengthening behavior was predominantly governed by the combined influence of defect density and matrix–defect interactions, rather than being directly correlated with grain size.

You might also be interested in these eBooks
Additive Manufacturing View Preview

Info:

Periodical:

Key Engineering Materials (Volume 1047)

Pages:

127-137

Online since:

April 2026

Authors:

Merve Nur Dogu*, Meris Meric Ikiz, Gavin Chapman, Sampreet Rangaswamy, Merve Yesim Yalcin, Seren Ozer, Kemal Davut, Dermot Brabazon

Keywords:

Defect Formation, IN939, Infra-Red (IR), Microstructure, Powder Bed Fusion-Laser Beam, Relative Density, Surface Roughness, Volumetric Energy Density

Export:

RIS, BibTeX

Permissions:

Creative Commons CC BY 4.0

Share:

* - Corresponding Author

References

[1] A. Mostafaei, R. Ghiaasiaan, I.T. Ho, S. Strayer, K.C. Chang, N. Shamsaei, S. Shao, S. Paul, A.C. Yeh, S. Tin, A.C. To, Additive manufacturing of nickel-based superalloys: A state-of-the-art review on process-structure-defect-property relationship, Progress in Materials Science 136 (2023) 101108.

DOI: 10.1016/j.pmatsci.2023.101108

Google Scholar

[2] M. Shahwaz, P. Nath, I. Sen, Recent advances in additive manufacturing technologies for Ni-Based Inconel superalloys – A comprehensive review, Journal of Alloys and Compounds 1010 (2025) 177654.

DOI: 10.1016/j.jallcom.2024.177654

Google Scholar

[3] T. Zou, M. Liu, Y. Cai, Q. Wang, Y. Jiang, Y. Wang, Z. Gao, Y. Pei, H. Zhang, Y. Liu, Q. Wang, Effect of temperature on tensile behavior, fracture morphology, and deformation mechanisms of Nickel-based additive manufacturing 939 superalloy, Journal of Alloys and Compounds 959 (2023) 170559.

DOI: 10.1016/j.jallcom.2023.170559

Google Scholar

[4] M.R. Jahangiri, M. Abedini, Effect of long time service exposure on microstructure and mechanical properties of gas turbine vanes made of IN939 alloy, Materials and Design 64 (2014) 588–600.

DOI: 10.1016/j.matdes.2014.08.035

Google Scholar

[5] B. Zhang, H. Ding, A.C. Meng, S. Nemati, S. Guo, W.J. Meng, Crack reduction in Inconel 939 with Si addition processed by laser powder bed fusion additive manufacturing, Additive Manufacturing 72 (2023).

DOI: 10.1016/j.addma.2023.103623

Google Scholar

[6] M. Malý, K. Nopová, L. Klakurková, O. Adam, L. Pantělejev, D. Koutný, Effect of Preheating on the Residual Stress and Material Properties of Inconel 939 Processed by Laser Powder Bed Fusion, Materials 15 (2022) 6360.

DOI: 10.3390/ma15186360

Google Scholar

[7] T. Zou, M. Liu, Q. Wang, Y. Jiang, H. Wu, Z. Gao, Evolutionary mechanisms in the plastic deformation of γ'-Ni 3(Al, Ti )-strengthened additively manufactured nickel-based 939 superalloys at intermediate temperatures, Materials & Design 239 (2024) 112795.

DOI: 10.1016/j.matdes.2024.112795

Google Scholar

[8] I. Rodríguez-Barber, A.M. Fernández-Blanco, I. Unanue-Arruti, I. Madariaga-Rodríguez, S. Milenkovic, M.T. Pérez-Prado, Laser powder bed fusion of the Ni superalloy Inconel 939 using pulsed wave emission, Materials Science and Engineering: A 870 (2023).

DOI: 10.1016/j.msea.2023.144864

Google Scholar

[9] W. Abd-Elaziem, S. Elkatatny, T.A. Sebaey, M.A. Darwish, M.A. Abd El-Baky, A. Hamada, Machine learning for advancing laser powder bed fusion of stainless steel, Journal of Materials Research and Technology 30 (2024) 4986–5016.

DOI: 10.1016/j.jmrt.2024.04.130

Google Scholar

[10] S. Fatemeh, A. Farshidianfar, H. Dalir, Comprehensive review: Advancements in modeling geometrical and mechanical characteristics of laser powder bed fusion process, Optics and Laser Technology 180 (2025) 111480. https://doi.org/.

DOI: 10.1016/j.optlastec.2024.111480

Google Scholar

[11] M.N. Doğu, M.A. Obeidi, H. Gu, C. Teng, D. Brabazon, Powder Bed Fusion–Laser Beam of IN939: The Effect of Process Parameters on the Relative Density, Defect Formation, Surface Roughness and Microstructure, Materials 17 (2024).

DOI: 10.3390/ma17133324

Google Scholar

[12] G. Marchese, S. Parizia, A. Saboori, D. Manfredi, M. Lombardi, P. Fino, D. Ugues, S. Biamino, The influence of the process parameters on the densification and microstructure development of laser powder bed fused inconel 939, Metals 10 (2020) 1–19.

DOI: 10.3390/met10070882

Google Scholar

[13] G. Dursun, A. Orhangul, A. Urkmez, G. Akbulut, Understanding the Parameter Effects on Densification and Single Track Formation of Laser Powder Bed Fusion Inconel 939, in: Procedia CIRP, Elsevier B.V., 2022: p.258–263.

DOI: 10.1016/j.procir.2022.03.045

Google Scholar

[14] M.N. Doğu, A. Mussatto, M.A. Yalçın, S. Ozer, K. Davut, M.A. Obeidi, A. Kumar, S. Hudson, D. O'Neill, R. O'Connor, H. Gu, D. Brabazon, A comprehensive characterization of the effect of spatter powder on IN939 parts fabricated by laser powder bed fusion, Materials and Design 235 (2023).

DOI: 10.1016/j.matdes.2023.112406

Google Scholar

[15] ASTM B311-17, Standard Test Method for Density of Powder Metallurgy (PM) Materials Containing Less Than Two Percent Porosity, (n.d.).

DOI: 10.1520/B0311-17

Google Scholar

[16] ASTM International, Standard Test Method for Microindentation Hardness of Materials - ASTM E384 - 17, 2017.

Google Scholar

[17] M.C.C. Monu, E.J. Ekoi, C. Hughes, S. Sujith Kumar, D. Brabazon, Resultant physical properties of as-built nitinol processed at specific volumetric energy densities and correlation with in-situ melt pool temperatures, Journal of Materials Research and Technology 21 (2022) 2757–2777.

DOI: 10.1016/j.jmrt.2022.10.073

Google Scholar

[18] A. Mussatto, R. Groarke, R.K. Vijayaraghavan, C. Hughes, P.J. Mcnally, Y. Delaure, D. Brabazon, Assessing dependency of part properties on the printing location in laser-powder bed fusion metal additive manufacturing, Materials Today Communications 30 (2022).

DOI: 10.1016/j.mtcomm.2022.103209

Google Scholar

[19] M.N. Doğu, Additive Manufacturing of Nickel-Base Superalloy IN939 by Powder Bed Fusion-Laser Beam, n.d.

Google Scholar

[20] M.N. Doğu, M.A. Obeidi, H. Gu, C. Teng, D. Brabazon, Powder Bed Fusion–Laser Beam of IN939: The Effect of Process Parameters on the Relative Density, Defect Formation, Surface Roughness and Microstructure, Materials 17 (2024).

DOI: 10.3390/ma17133324

Google Scholar

[21] M.N. Doğu, S. Ozer, M.A. Yalçın, K. Davut, G.M. Bilgin, M.A. Obeidi, H. Brodin, H. Gu, D. Brabazon, Effect of solution heat treatment on the microstructure and crystallographic texture of IN939 fabricated by powder bed fusion-laser beam, Journal of Materials Research and Technology 24 (2023). https://doi.org/.

DOI: 10.1016/j.jmrt.2023.05.152

Google Scholar

[22] S. Ozer, M.N. Doğu, C. Ozdemirel, G.M. Bilgin, M. Gunes, K. Davut, H. Gu, D. Brabazon, Effect of aging treatment on the microstructure, cracking type and crystallographic texture of IN939 fabricated by powder bed fusion-laser beam, Journal of Materials Research and Technology 33 (2024) 574–588.

DOI: 10.1016/j.jmrt.2024.09.106

Google Scholar

[23] M.N. Doğu, S. Ozer, M.A. Yalçın, K. Davut, M.A. Obeidi, C. Simsir, H. Gu, C. Teng, D. Brabazon, A comprehensive study of the effect of scanning strategy on IN939 fabricated by powder bed fusion-laser beam, Journal of Materials Research and Technology 33 (2024) 5457–5481.

DOI: 10.1016/j.jmrt.2024.10.171

Google Scholar
