Fast Apatite-Forming Ability of Magnetron Co-Sputtered Silicon-Containing Hydroxyapatite (Si-HA) Thin Films

E.S. Thian; Jie Huang; Serena Best; Zoe H. Barber; William Bonfield

doi:10.4028/www.scientific.net/KEM.284-286.445

Paper Titles

Ciprofloxacin-Releasing Bioabsorbable Polymer is Superior to Titanium in Preventing Staphylococcus Epidermidis Attachment and Biofilm Formation In Vitro
p.427

Indirect Cytotoxicity Evaluation of Silver Doped Bioglass Ag-S70C30 on Human Primary Keratinocytes
p.431

Antimicrobial Treatment of Dental Osseous Defects with Silver Doped Bioglass: Osteoblast Cell Response
p.435

Antimicrobiologic Property Hydrated Amorphous Calcium Phosphates Containing Silver
p.439

Fast Apatite-Forming Ability of Magnetron Co-Sputtered Silicon-Containing Hydroxyapatite (Si-HA) Thin Films
p.445

Preparation of Vaterite/Poly(lactic acid) Composites with Excellent Apatite-Forming Ability
p.449

Surface Charge of Bioactive Polyethylene Modified with –SO₃H Groups and Its Apatite Inducing Capability in Simulated Body Fluid
p.453

Study of In Situ Apatite Formation on Bioactive Substrates Using Confocal Microscopy
p.457

In Vitro Analysis of Protein Adhesion to Phase Pure Hydroxyapatite and Silicon Substituted Hydroxyapatite
p.461

HomeKey Engineering MaterialsKey Engineering Materials Vols. 284-286Fast Apatite-Forming Ability of Magnetron...

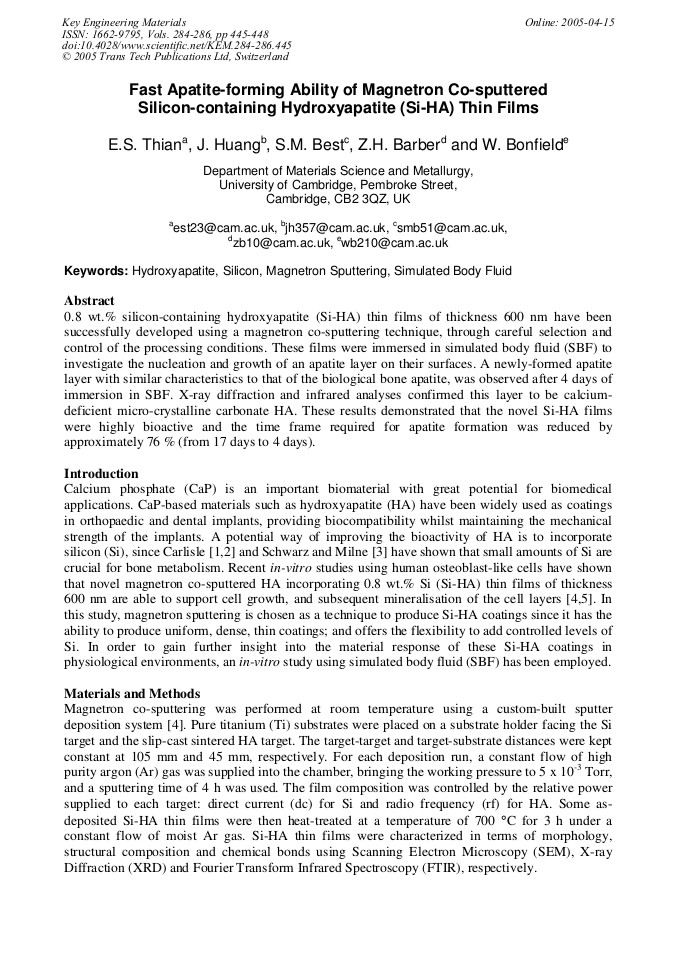

Fast Apatite-Forming Ability of Magnetron Co-Sputtered Silicon-Containing Hydroxyapatite (Si-HA) Thin Films

Abstract:

0.8 wt.% silicon-containing hydroxyapatite (Si-HA) thin films of thickness 600 nm have been successfully developed using a magnetron co-sputtering technique, through careful selection and control of the processing conditions. These films were immersed in simulated body fluid (SBF) to investigate the nucleation and growth of an apatite layer on their surfaces. A newly-formed apatite layer with similar characteristics to that of the biological bone apatite, was observed after 4 days of immersion in SBF. X-ray diffraction and infrared analyses confirmed this layer to be calciumdeficient micro-crystalline carbonate HA. These results demonstrated that the novel Si-HA films were highly bioactive and the time frame required for apatite formation was reduced by approximately 76 % (from 17 days to 4 days).
