Rapidly Resorbable, Temporarily Mechanically Stable Composites for Bone Replacement

Nicole Bielefeldt; Ute Ploska; Georg Berger; Lydia Heimann

doi:10.4028/www.scientific.net/KEM.396-398.469

Paper Titles

Investigation on Screwy Microstructure of Solid-Trough Shell
p.453

New Injectable Bone Substitute Using Reversible Thermosensitive Hydrogel and BCP Granules: In Vivo Rabbit Experiments
p.457

PLGA-Hydroxyapatite Composite Scaffolds for Osteoblastic-Like Cells
p.461

Preparation and Characterization of Fe₃O₄/Poly (2-Hydroxyethyl Methacrylate) Magnetic Nanocomposite Films
p.465

Rapidly Resorbable, Temporarily Mechanically Stable Composites for Bone Replacement
p.469

Resorbable Mesh Based on Calcium Alginate for Bone Reconstruction Surgical Technologies
p.473

Synthesis and Biocompatibility of Hydroxyapatite in a Graphite Oxide Matrix
p.477

Synthesis and Characterization of Siloxane-Polyurethane Hybrid Materials
p.481

The Effects of Hydroxyapatite on Demineralization Resistance and Bonding Strength in Light-Curing Glass Ionomer Dental Cement
p.485

HomeKey Engineering MaterialsKey Engineering Materials Vols. 396-398Rapidly Resorbable, Temporarily Mechanically...

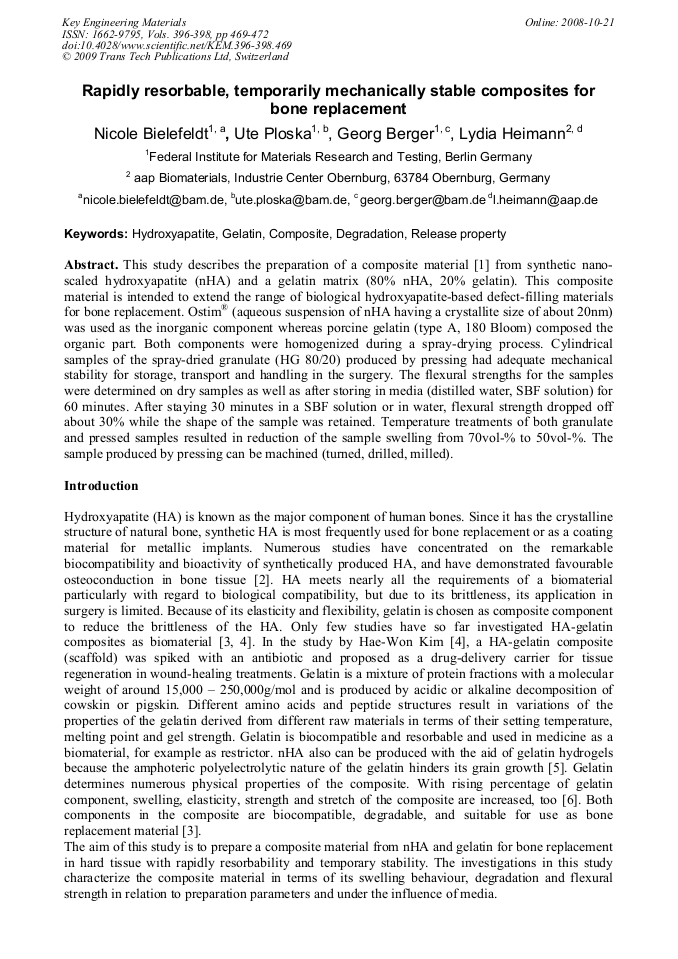

Rapidly Resorbable, Temporarily Mechanically Stable Composites for Bone Replacement

Abstract:

This study describes the preparation of a composite material [1] from synthetic nano-scaled hydroxyapatite (nHA) and a gelatin matrix (80% nHA, 20% gelatin). This composite material is intended to extend the range of biological hydroxyapatite-based defect-filling materials for bone replacement. Ostim® (aqueous suspension of nHA having a crystallite size of about 20nm) was used as the inorganic component whereas porcine gelatin (type A, 180 Bloom) composed the organic part. Both components were homogenized during a spray-drying process. Cylindrical samples of the spray-dried granulate (HG 80/20) produced by pressing had adequate mechanical stability for storage, transport and handling in the surgery. The flexural strengths for the samples were determined on dry samples as well as after storing in media (distilled water, SBF solution) for 60 minutes. After staying 30 minutes in a SBF solution or in water, flexural strength dropped off about 30% while the shape of the sample was retained. Temperature treatments of both granulate and pressed samples resulted in reduction of the sample swelling from 70vol-% to 50vol-%. The sample produced by pressing can be machined (turned, drilled, milled).

You might also be interested in these eBooks

View Preview

Info:

Periodical:

Key Engineering Materials (Volumes 396-398)

Pages:

469-472

DOI:

https://doi.org/10.4028/www.scientific.net/KEM.396-398.469

Citation:

Cite this paper

Online since:

October 2008

Authors:

Nicole Bielefeldt, Ute Ploska, Georg Berger, Lydia Heimann

Keywords:

Composite, Degradation, Gelatin, Hydroxyapatite (HAP), Release Property

Export:

RIS, BibTeX

Price:

Permissions CCC:

Request Permissions

Permissions PLS:

Request Permissions

Сopyright:

Citation:

References

[1] DE 10 2005 024 296 B, Resorbierbarer, biokompatibler Formkörper und Verfahren zu seiner Herstellung.

Google Scholar

[2] Sergey V. Dorozhkin, J. Mater. Sci. 42 (2007), pp.1061-1095.

Google Scholar

[3] K.S. TenHuisen, P.W. Brown, J. Biomed. Mater. Res. 28 (1994), pp.27-33.

Google Scholar

[4] H-W. Kim, J.C. Knowles, H-E. Kim, J. Biomed. Mater. Res. 74B (2005), pp.686-698.

Google Scholar

[5] C. Shu, Y. Xianzhu, X. Zahngyin, X. Guohua, L. Hong, Y. Kangde, Ceram. Int. Vol. 33 (2007), pp.193-196.

Google Scholar

[6] N. Caoa, Y. Fua, J. He, Food Hydrocolloids 21 (2007) 1153-1162.

Google Scholar

[7] R. Danzer; Prüfanweisung, Bestimmung der Festigkeit mittels 4-Kugel-Versuch bei Raumtemperatur, (2005), Institut für Struktur- und Funktionskeramik, Universität Leoben, Austria.

Google Scholar

[8] T. Kokubo, H. Takadama: Biomaterials 27 (2006), pp.2907-2915 Fig. 5: Composite samples; left: aspressed, middle and right: machined.

Google Scholar
