For Libraries For Publication Open Access Downloads About Us Contact Us
Paper Titles
Develop Single-Phase High Dielectric Constant SiO2-Based Composite Gate Dielectric
p.259
The Influence of Annealing Temperature on the Characteristics of 0.95 (Na0.5Bi0.5)TiO3-0.05 BaTiO3 Thin Films
p.263
The Influence of Oxygen Plasma Treatment on the Electrical Properties of (Ba0.7Sr0.3)(Ti0.9Zr0.1)O3 Thin Films
p.267
The Electrical and Physical Properties of (Ba0.7Sr0.3)(Ti0.9Zr0.1)O3 Thin Films under Conventional Annealing Process
p.271
Fabrication and Characterization of Sr0.7Ca0.3TiO3 Substrates Using Aqueous Tape Casting Process
p.275
Dielectric Properties of BiFeO3 Ceramics with Equal and Unequal Substitutions of Ti for Fe
p.278
Ferroelectric Properties and Microstructures of Pr6O11-Doped Bi4Ti3O12 Thin Films
p.281
Dielectric Characteristics of the Lead-Free Piezoelectric Ceramics K0.50Na0.50Nb0.95Ta0.05O3
p.285
The Influence of Annealing Treatment on Physics and Electrical Characteristics of Ba(Zr0.1Ti0.9)O3 Ferroelectric Films on ITO/Glass Substrate
p.289

Fabrication and Characterization of Sr0.7Ca0.3TiO3 Substrates Using Aqueous Tape Casting Process

Article Preview

Abstract:

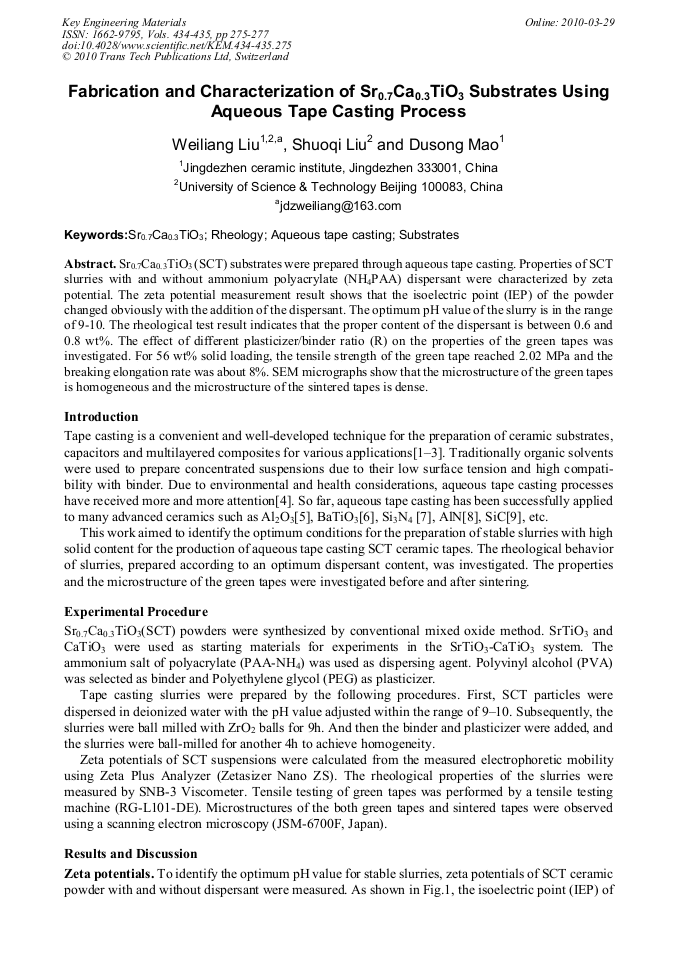

Sr0.7Ca0.3TiO3 (SCT) substrates were prepared through aqueous tape casting. Properties of SCT slurries with and without ammonium polyacrylate (NH4PAA) dispersant were characterized by zeta potential. The zeta potential measurement result shows that the isoelectric point (IEP) of the powder changed obviously with the addition of the dispersant. The optimum pH value of the slurry is in the range of 9-10. The rheological test result indicates that the proper content of the dispersant is between 0.6 and 0.8 wt%. The effect of different plasticizer/binder ratio (R) on the properties of the green tapes was investigated. For 56 wt% solid loading, the tensile strength of the green tape reached 2.02 MPa and the breaking elongation rate was about 8%. SEM micrographs show that the microstructure of the green tapes is homogeneous and the microstructure of the sintered tapes is dense.

You might also be interested in these eBooks
High-Performance Ceramics VI View Preview

Info:

Periodical:

Key Engineering Materials (Volumes 434-435)

Pages:

275-277

DOI:

https://doi.org/10.4028/www.scientific.net/KEM.434-435.275

Citation:

Cite this paper

Online since:

March 2010

Authors:

Wei Liang Liu, Shuo Qi Liu, Du Song Mao

Keywords:

Aqueous Tape Casting, Rheology, Sr0.7Ca0.3TiO3, Substrate

Export:

RIS, BibTeX

Price:

Permissions CCC:

Request Permissions

Permissions PLS:

Request Permissions

Сopyright:

© 2010 Trans Tech Publications Ltd. All Rights Reserved

Share:

Citation:

References

[1] R.E. Mistler and D.J. Shanefield: Am. Ceram. Soc. Bull. Vol. 69.

Google Scholar

[6] (1990), pp.1022-1026.

Google Scholar

[2] E. Streicher, T. Chartier, and P. Boch: Ceram. Int. Vol. 16.

Google Scholar

[4] (1990), pp.247-252.

Google Scholar

[3] E.P. Hyatt: Am. Ceram. Soc. Bull. Vol. 65.

Google Scholar

[4] 1986), pp.637-638.

Google Scholar

[4] D. Hotza and P. Greil: Mater. Sci. Eng. A. Vol. 202[1-2] (1995), pp.206-217.

Google Scholar

[5] C.A. Gutie´rrez and R. Moreno: Mater. Res. Bull. Vol. 36.

Google Scholar

[1] (2001), p.2059-(2072).

Google Scholar

[6] Y.L. Song, X.L. Liu, J.Q. Zhang, et al: Powder Technol. Vol. 155.

Google Scholar

[1] (2005), pp.26-32.

Google Scholar

[7] J.X. Zhang, F. Ye, D.L. Jiang, et al: Ceram. Int. Vol. 32.

Google Scholar

[3] (2006), pp.277-282.

Google Scholar

[8] S.M. Olhero and J.M.F. Ferreira: J. Mater. Process. Technol. Vol. 169.

Google Scholar

[2] (2005), pp.206-213.

Google Scholar

[9] J.X. Zhang, R. Huang, H. Gu, et al: Scripta Mater. Vol. 52.

Google Scholar

[5] (2005), pp.381-385.

Google Scholar

© 2025 Trans Tech Publications Ltd. All rights are reserved, including those for text and data mining, AI training, and similar technologies. For open access content, terms of the Creative Commons licensing CC-BY are applied.
Scientific.Net is a registered trademark of Trans Tech Publications Ltd.
