Micro Machining of Metal Injection Mould with Micro Channel Features of Tens Micro Meters for Polymer Microfluidic Devices Manufacturing

Abstract:

There are increasing demands for polymer based microfluidic devices as polymer devices can be mass produced using the injection molding process for disposable analytical applications. However, fabrication of precision injection molds with micro features down to tens of micro meters is a challenging task. The most efficient manufacturing method for this type of high precision micro mold is the tool-based micro machining. In this paper, studies have been conducted to develop metal injection mould manufacturing technologies for polymer microfluidic device fabrication. An injection mould with a micro feature of 29m wall thickness, 20m height and 9.8mm length has been successfully achieved on brass with very precise dimensional accuracy and surface quality for molding process of polymer microfluidic devices. Polymer microfluidic chips with micro channels of 30m width have been successfully produced using the machined metal injection mould.

You might also be interested in these eBooks

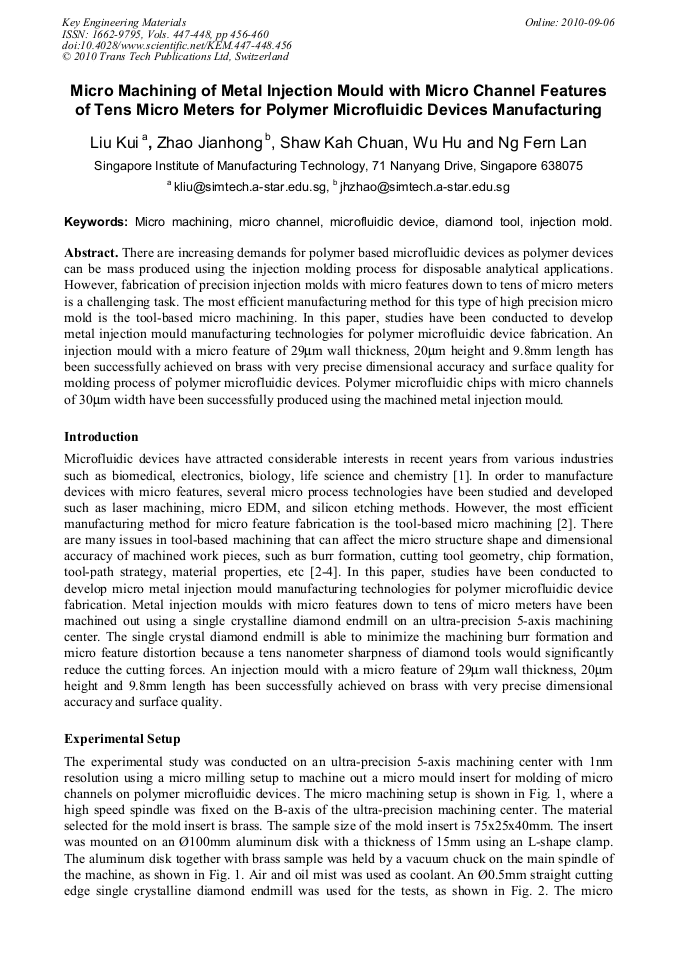

View Preview

Info:

Periodical:

Key Engineering Materials (Volumes 447-448)

Pages:

456-460

DOI:

https://doi.org/10.4028/www.scientific.net/KEM.447-448.456

Citation:

Cite this paper

Online since:

September 2010

Authors:

Kui Liu, Jian Hong Zhao, Kah Chuan Shaw, Hu Wu, Fern Lan Ng

Keywords:

Diamond Tool, Injection Molding, Micro Machining, Micro-Channel, Microfluidic Device

Export:

RIS, BibTeX

Price:

Permissions CCC:

Request Permissions

Permissions PLS:

Request Permissions

Сopyright:

Citation:

References

[1] H. Andersson and A. van den Berg, Sensors and Actuators B: Chemical, Vol. 92 (2003), p.315.

Google Scholar

[2] F.Z. Fang, K. Liu, T.R. Kurfess and G.C. Lim, in: MEMS/�EMS Handbook: Techniques and Applications, edited by C.T. Leondes, Kluwer Academic Publishers (2005).

Google Scholar

[3] K. Liu, H. Wu, S.T. Ng and A.T.B. Thoe, The 7th International Conference of the Europe Society of Precision Engineering and �anotechnology, Bremen, Germany (2007), p.281.

Google Scholar

[4] H. Weule, V. Hüntrup and H. Tritschler, CIRP Annals, Vol. 51 (2001), p.61.

Google Scholar

[5] K. Liu, D.W. Zuo, X.P. Li and M. Rahman, J. Vacu. Sci. Tech. B, Vol. 27 (2009), p.1361.

Google Scholar

[6] R. C. Hibbeler: Engineering Mechanics Statics, Pearson, New York (2007).

Google Scholar
