Designing of a CCD Sensor for On-Line Non-Touch Monitoring Roller Wear

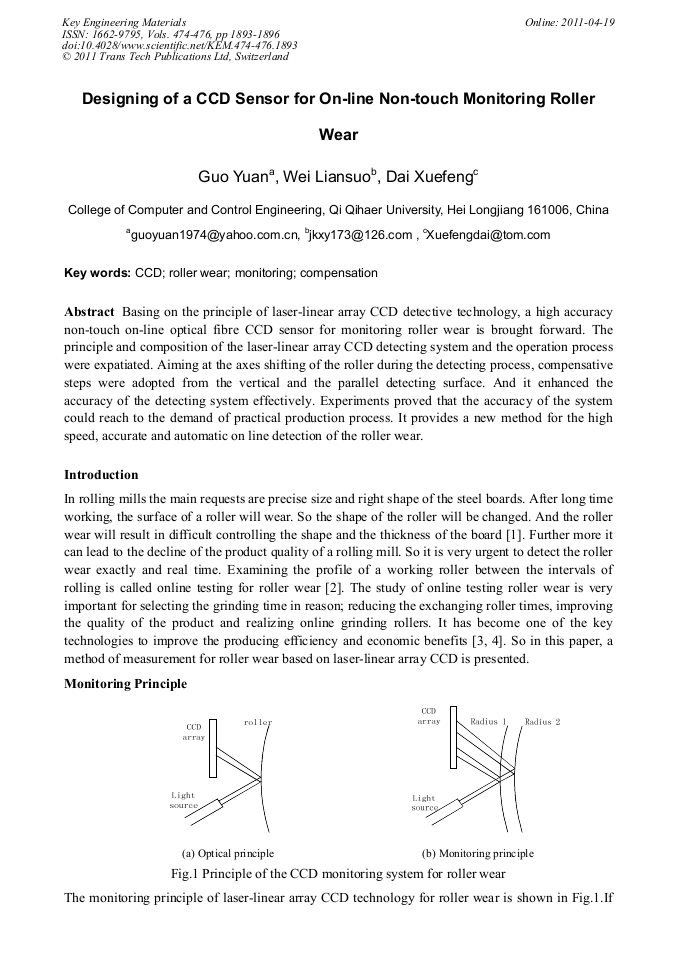

Article Preview

Abstract:

Basing on the principle of laser-linear array CCD detective technology, a high accuracy non-touch on-line optical fibre CCD sensor for monitoring roller wear is brought forward. The principle and composition of the laser-linear array CCD detecting system and the operation process were expatiated. Aiming at the axes shifting of the roller during the detecting process, compensative steps were adopted from the vertical and the parallel detecting surface. And it enhanced the accuracy of the detecting system effectively. Experiments proved that the accuracy of the system could reach to the demand of practical production process. It provides a new method for the high speed, accurate and automatic on line detection of the roller wear.

You might also be interested in these eBooks
Advanced Materials and Computer Science View Preview

Info:

Periodical:

Key Engineering Materials (Volumes 474-476)

Pages:

1893-1896

DOI:

https://doi.org/10.4028/www.scientific.net/KEM.474-476.1893

Citation:

Cite this paper

Online since:

April 2011

Authors:

Yuan Guo, Lian Suo Wei, Xue Feng Dai

Keywords:

CCD, Compensation, Monitoring, Roller Wear

Export:

RIS, BibTeX

Price:

Permissions CCC:

Request Permissions

Permissions PLS:

Request Permissions

Сopyright:

© 2011 Trans Tech Publications Ltd. All Rights Reserved

Share:

Citation:

References

[1] E. A. Garber,D. L. Shalaevskii,I. A. Kozhevnikova. Applicability of the laws of elasticity for the determination of the elastic-region length in the deformation zone during cold rolling. Russian Metallurgy (Metally). 2008, No. 3, 205-209.

DOI: 10.1134/s003602950803004x

Google Scholar

[2] Guo Yuan, Wang Yutian, Design of a Reflective Optical Fiber Displacement Sensor for Testing Roller Wear, Journal of Transduction Technology, 2004, 2, 255-257.

Google Scholar

[3] Jian-guo Cao, Gang-cheng Wei, Jie Zhang. VCR and ASR technology for profile and flatness control in hot strip mills. Journal of Central South University of Technology. 2008, Vol. 15, No. 2, 264-270.

DOI: 10.1007/s11771-008-0049-0

Google Scholar

[4] Gao Guocai, Wang Junsheng, Analyze and Calculation of Roller Wear, ANGANG Technology, 2002, 2, 34-36.

Google Scholar

[5] Guo Yuan. A Fiber -optic Sensor for On-line Non-touch Monitoring Roll Shape. PROCEEDINGS OF SPIE. 2009Volume7381 . 73811I-1—5.

Google Scholar
