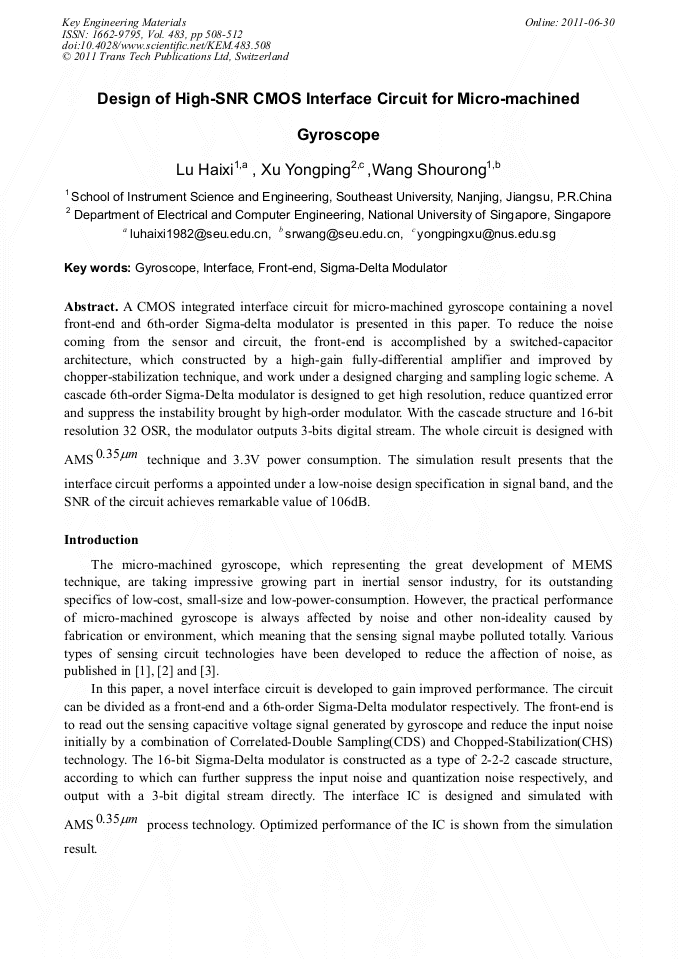

Design of High-SNR CMOS Interface Circuit for Micro-Machined Gyroscope

Abstract:

A CMOS integrated interface circuit for micro-machined gyroscope containing a novel front-end and 6th-order Sigma-delta modulator is presented in this paper. To reduce the noise coming from the sensor and circuit, the front-end is accomplished by a switched-capacitor architecture, which constructed by a high-gain fully-differential amplifier and improved by chopper-stabilization technique, and work under a designed charging and sampling logic scheme. A cascade 6th-order Sigma-Delta modulator is designed to get high resolution, reduce quantized error and suppress the instability brought by high-order modulator. With the cascade structure and 16-bit resolution 32 OSR, the modulator outputs 3-bits digital stream. The whole circuit is designed with AMS technique and 3.3V power consumption. The simulation result presents that the interface circuit performs a appointed under a low-noise design specification in signal band, and the SNR of the circuit achieves remarkable value of 106dB.

• Periodical: Key Engineering Materials (Volume 483)
• Pages: 508-512
• DOI: https://doi.org/10.4028/www.scientific.net/KEM.483.508
• Online since: June 2011
• Authors: Hai Xi Lu, Yong Ping Xu, Shou Rong Wang
• Keywords: Front-End, Gyroscope, Interface, Sigma-Delta Modulator (SDM)

References

[1] Tao Yin, Haigang Yang, Chong Zhang, Qisong Wu. A Low-Noise Readout Circuit for MEMS Vibratory Gyroscope. Proceedings of the 3rd IEEE Int. Conf. on Nano/Micro Engineered and Molecular Systems January 6-9, 2008, Sanya, China, pp.124-127.

DOI: 10.1109/nems.2008.4484301

[2] Dongning Zhao, M. Faisal Zaman, Farrokh Ayazi. A Chopper-Stabilized Lateral-BJT-lnput Interface in CMOS for Capacitive Accelerometers. 2008 IEEE International Solid-State Circuits Conference. pp.584-585.

DOI: 10.1109/isscc.2008.4523318

[3] Ajit Sharma, Mohammad Faisal Zaman, Farrokh Ayazi. A 104-dB Dynamic Range Transimpedance-Based CMOS ASIC for Tuning Fork Microgyroscopes. IEEE Journal of Solid-State Circuits, Vol. 42, No. 8, August 2007. pp.1790-1802.

DOI: 10.1109/jssc.2007.900282

[4] Robert P. Leland. Lyapunov Based Adaptive Control of a MEMS Gyroscope. Proceedings of the American Control Conference Anchorage, AK May 8-10, 2002. pp.3765-3770.

DOI: 10.1109/acc.2002.1024513

[5] Sudhir M. Mallya, Joseph H. Nevin. Design Procedures for a Fully Differential Folded-Cascode CMOS Operational Amplifier. IEEE Journal of Solid-State Circuits, Vol. 24, No. 6, December1989. pp.1737-1740.

DOI: 10.1109/4.45013

[6] Babak Vakili Amini, Farrokh Ayazi. A 2. 5-V 14-bitCMOS SOI Capacitive Accelerometer. IEEE Journal of Solid-State Circuits, Vol. 39, No. 12, December 2004. pp.2467-2476.

DOI: 10.1109/jssc.2004.837025

[7] Andrea Pugliese, Francesco Antonio Amoroso, Gregorio Cappuccino, Giuseppe Cocorullo. Analysis of the Impact of High-Order Integrator Dynamics on SC Sigma-Delta Modulator Performances. IEEETransactions on Circuits and Systems—I: Regular Papers, Vol. 57, No. 3, March 2010. pp.618-630.

DOI: 10.1109/tcsi.2009.2023946
