Recrystallization of Amorphized α-TCP

Article Preview

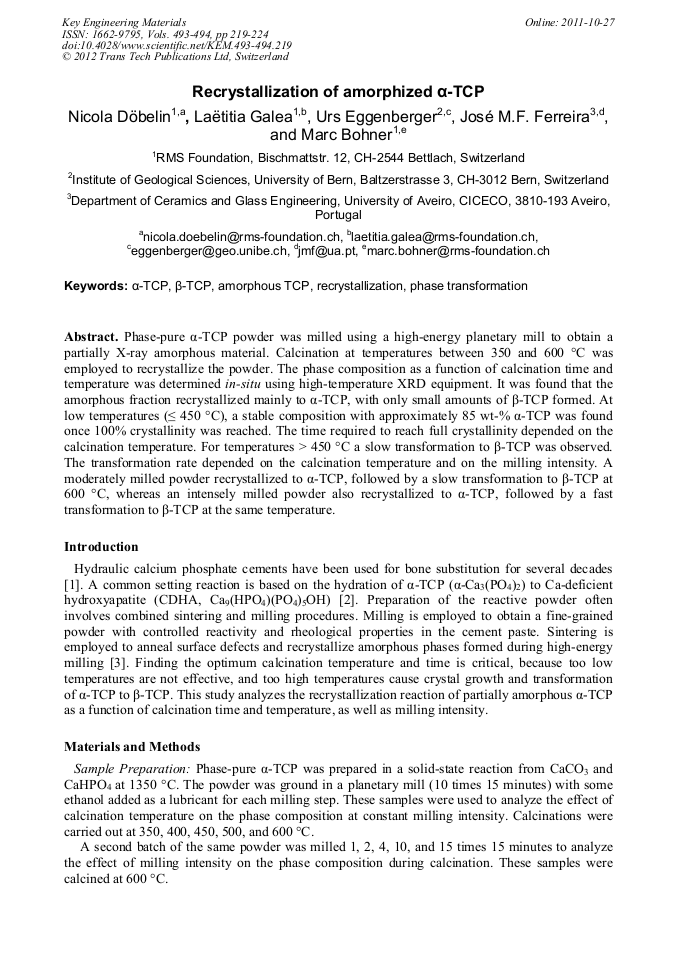

Abstract:

Phase-pure α-TCP powder was milled using a high-energy planetary mill to obtain a partially X-ray amorphous material. Calcination at temperatures between 350 and 600 °C was employed to recrystallize the powder. The phase composition as a function of calcination time and temperature was determined in-situ using high-temperature XRD equipment. It was found that the amorphous fraction recrystallized mainly to α-TCP, with only small amounts of β-TCP formed. At low temperatures (≤ 450 °C), a stable composition with approximately 85 wt-% α-TCP was found once 100% crystallinity was reached. The time required to reach full crystallinity depended on the calcination temperature. For temperatures > 450 °C a slow transformation to β-TCP was observed. The transformation rate depended on the calcination temperature and on the milling intensity. A moderately milled powder recrystallized to α-TCP, followed by a slow transformation to β-TCP at 600 °C, whereas an intensely milled powder also recrystallized to α-TCP, followed by a fast transformation to β-TCP at the same temperature.

You might also be interested in these eBooks

Info:

Periodical:

Key Engineering Materials (Volumes 493-494)

Pages:

219-224

Citation:

Online since:

October 2011

Export:

Price:

Permissions CCC:

Permissions PLS:

Сopyright:

© 2012 Trans Tech Publications Ltd. All Rights Reserved

Share:

Citation:

[1] W.E. Brown and L.C. Chow, A new calcium phosphate setting cement, J Dental Res, 62 (1983) p.672.

Google Scholar

[2] H. Monma and T. Kanazawa, The hydration of a-tricalcium phosphate, Yogyo-Kyokai-Shi, 84.

Google Scholar

[4] (1976) pp.209-213.

Google Scholar

[3] M. Bohner, R. Luginbuhl, C. Reber, N. Doebelin, G. Baroud, and E. Conforto, A physical approach to modify the hydraulic reactivity of alpha-tricalcium phosphate powder, Acta Biomater, 5(9) (2009) pp.3524-3535.

DOI: 10.1016/j.actbio.2009.05.024

Google Scholar

[4] J. Rodriguez-Carvajal, Recent Developments of the Program FULLPROF, Commission on Powder Diffraction (IUCr). Newsletter, 26 (2001) pp.12-19.

Google Scholar

[5] M. Mathew, L.W. Schroeder, B. Dickens and W.E. Brown, The crystal structure of a-Ca3(PO4)2, Acta Cryst, B33 (1977) pp.1325-1333.

DOI: 10.1107/s0567740877006037

Google Scholar

[6] B. Dickens, L.W. Schroeder and W.E. Brown, Crystallographic studies on the role of Mg as a stabilizing impurity in b-Ca3(PO4)2 I. The crystal structure of pure b-Ca3(PO4)2, Journal of Solid State Chemistry, 10 (1974) pp.232-248.

DOI: 10.1016/0022-4596(74)90030-9

Google Scholar

[7] K. Sudarsanan and R.A. Young, Significant precision in crystal structure details: Holly springs hydroxyapatite, Acta Cryst, B25 (1969) pp.1534-1543.

DOI: 10.1107/s0567740869004298

Google Scholar

[8] N. Döbelin, T. Brunner, W.J. Stark, M. Fisch, E. Conforto, and M. Bohner, Thermal treatment of flame-synthesized amorphous tricalcium phosphate nanoparticles, Journal of the American Ceramic Society, 93(10) (2010) pp.3455-3463.

DOI: 10.1111/j.1551-2916.2010.03856.x

Google Scholar

[9] H. Monma and M. Goto, Behavior of the a-b Phase transformation in tricalcium phosphate, Yogyo-Kyokai-Shi, 91.

Google Scholar

[10] (1983) pp.473-475.

Google Scholar
