The Impact of Sintering Temperature on the Bioactive Glass-Dental Porcelain Composite Material

Abstract:

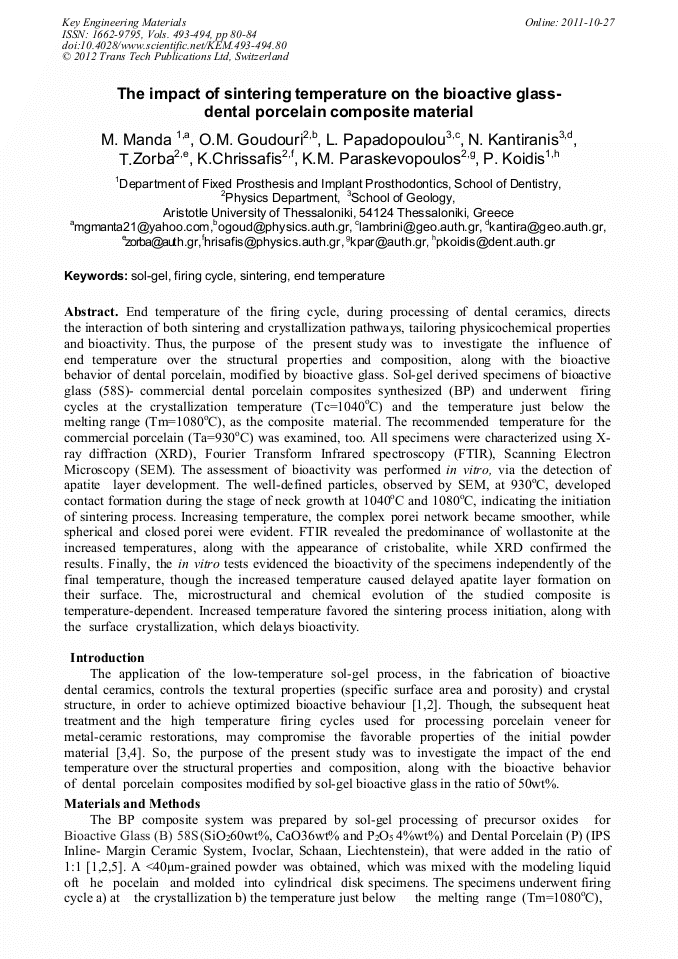

End temperature of the firing cycle, during processing of dental ceramics, directs the interaction of both sintering and crystallization pathways, tailoring physicochemical properties and bioactivity. Thus, the purpose of the present study was to investigate the influence of end temperature over the structural properties and composition, along with the bioactive behavior of dental porcelain, modified by bioactive glass. Sol-gel derived specimens of bioactive glass (58S)- commercial dental porcelain composites synthesized (BP) and underwent firing cycles at the crystallization temperature (Tc=1040oC) and the temperature just below the melting range (Tm=1080oC), as the composite material. The recommended temperature for the commercial porcelain (Ta=930oC) was examined, too. All specimens were characterized using X-ray diffraction (XRD), Fourier Transform Infrared spectroscopy (FTIR), Scanning Electron Microscopy (SEM). The assessment of bioactivity was performed in vitro, via the detection of apatite layer development. The well-defined particles, observed by SEM, at 930oC, developed contact formation during the stage of neck growth at 1040oC and 1080oC, indicating the initiation of sintering process. Increasing temperature, the complex porei network became smoother, while spherical and closed porei were evident. FTIR revealed the predominance of wollastonite at the increased temperatures, along with the appearance of cristobalite, while XRD confirmed the results. Finally, the in vitro tests evidenced the bioactivity of the specimens independently of the final temperature, though the increased temperature caused delayed apatite layer formation on their surface. The, microstructural and chemical evolution of the studied composite is temperature-dependent. Increased temperature favored the sintering process initiation, along with the surface crystallization, which delays bioactivity.

• Periodical: Key Engineering Materials (Volumes 493-494)
• Pages: 80-84
• DOI: https://doi.org/10.4028/www.scientific.net/KEM.493-494.80
• Online since: October 2011
• Authors: M. Manda, Ourania Menti Goudouri, Lambrini Papadopoulou, Nikolaos Kantiranis, T. Zorba, K. Chrissafis, Konstantinos M. Paraskevopoulos, Petros Koidis
• Keywords: End Temperature, Firing Cycle, Sintering, Sol-Gel (SG)

References

[1] X. Chatzistavrou, D. Esteve, E. Hatzistavrou, E. Kontonasaki, K.M. Paraskevopoulos, A.R. Boccaccini, Sol–gel based fabrication of novel glass-ceramics and composites for dental applications, Mater. Sci. Eng. 30 ( 2010) 730–739.

DOI: 10.1016/j.msec.2010.03.005

[2] O.M. Goudouri, E. Kontonasaki, A. Theoharidou, L. Papadopoulou, N. Kantiranis, X. Chatzistavrou, P. Koidis, K.M. Paraskevopoulos, Modifying a dental ceramic by bioactive glass via the sol–gel route: Characterization and bioactivity investigation, Mater. Chem. Phys. 125 (2011).

DOI: 10.1016/j.matchemphys.2010.09.054

[3] D. Arcos, D.C. Greenspan, M. Vallet-Regi, Influence of the stabilization temperature on textural and structural features and ion release SiO2-CaO-P2O5 sol-gel glasses, Chem. Mater. 14 (2002)1515-1522.

DOI: 10.1021/cm011119p

[4] K.C. Cheung, B.W. Darwell, Sintering of dental porcelain. The effect of time and temperature on appearence and porosity, Dent Mater 18 (2002) 163-173.

DOI: 10.1016/s0109-5641(01)00038-0

[5] J. Zhong, D.C. Greenspan, Processing and properties of sol–gel bioactive glasses, J. Biomed. Mater. Res. (Appl. Biomater. ) 53 (2000) 694.

DOI: 10.1002/1097-4636(2000)53:6<694::aid-jbm12>3.0.co;2-6

[6] J. Ma, C.Z. Chen, D.G. Wang, X.G. Meng, J.Z. Shi, Influence of the sintering temperature on the structural feature and bioactivity of sol–gel derivedSiO2–CaO–P2O5 bioglass, Ceram. Inter. 36 (2010) 1911-(1916).

DOI: 10.1016/j.ceramint.2010.03.017

[7] Y. Shinohara, N. Kohyama, Quantitative analysis of tridymite and cristobalite crystallized in rice husk ash by heating, Indust Health 42 (2004) 277-285.

DOI: 10.2486/indhealth.42.277

[8] P. Bruhns, R.X. Fischer, Crystallization of cristobalite and tridymite in the presence of vanadium, Eur. J. Minera. 12 (2001) 615-624.

DOI: 10.1127/0935-1221/2000/0012-0615

[9] K. Lin, J. Chang, J. Lu, Synthesis of wollastonite nanowires via hydrothermal microemulsion methods, Materials Letters 60 (2006) 3007-3010.

DOI: 10.1016/j.matlet.2006.02.034

[10] F. Xu, X. F. Hu, Y. Niu, J. H. Zhao, Q. X. Yuan, In situ observation of grain evolution in ceramic sintering by SR-CT technique, Trans. Nonferrous Metals Soc. China 19 (2009) 684-688.

DOI: 10.1016/s1003-6326(10)60132-x

[11] J. Weng, Q. Liu, J.G. Wolke, X. Zhang, K. de Groot, Formation and characteristics of the apatite layer on plasma-sprayed hydroxyapatite coatings in simulated body fluid, Biomaterials 18 (1997) 1027-1035.

DOI: 10.1016/s0142-9612(97)00022-7

[12] M. J. Bailey, S. Coe, D. M. Grant, G. W. Grime, C. Jeynes, Accurate determination of the Ca: P ratio in rough hydroxyapatite samples by SEM-EDS, PIXE and RBS-a comparative study, X-Ray Spectrometry 38 (2009) 343-347.

DOI: 10.1002/xrs.1171

[13] Th. Leventouri, A. Antonakos, A. Kyriacou, R. Venturelli, E. Liarokapis, V. Perdikatsis, Crystal Structure Studies of Human Dental Apatite as a Function of Age, Int. J. Biomater. 698547 (2009) 1-6.

DOI: 10.1155/2009/698547
