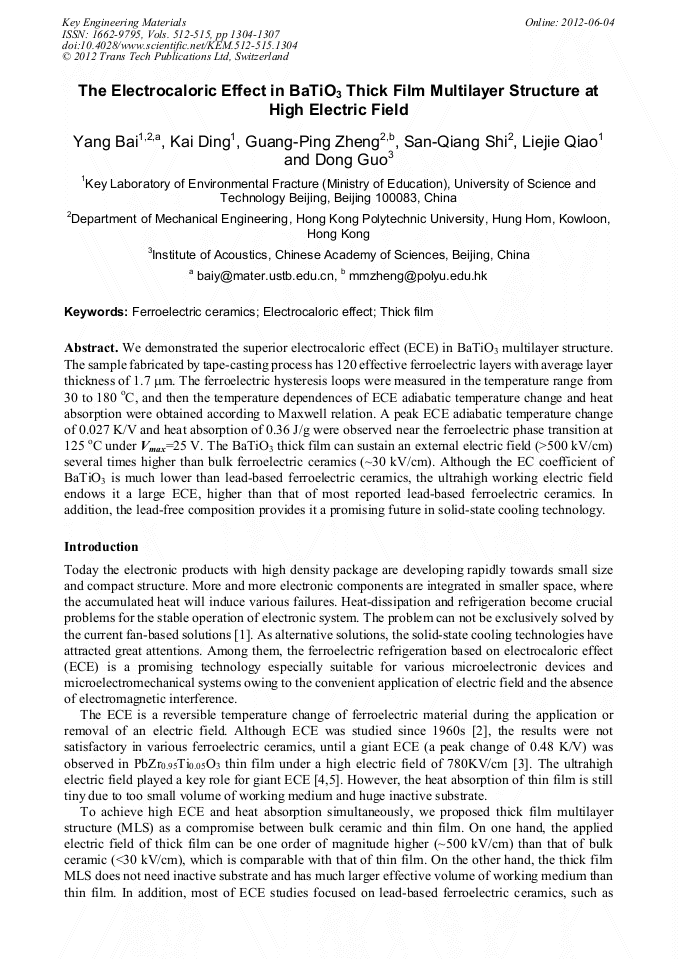

The Electrocaloric Effect in BaTiO₃ Thick Film Multilayer Structure at High Electric Field

Abstract:

We demonstrated the superior electrocaloric effect (ECE) in BaTiO3 multilayer structure. The sample fabricated by tape-casting process has 120 effective ferroelectric layers with average layer thickness of 1.7 μm. The ferroelectric hysteresis loops were measured in the temperature range from 30 to 180 oC, and then the temperature dependences of ECE adiabatic temperature change and heat absorption were obtained according to Maxwell relation. A peak ECE adiabatic temperature change of 0.027 K/V and heat absorption of 0.36 J/g were observed near the ferroelectric phase transition at 125 oC under Vmax=25 V. The BaTiO3 thick film can sustain an external electric field (>500 kV/cm) several times higher than bulk ferroelectric ceramics (~30 kV/cm). Although the EC coefficient of BaTiO3 is much lower than lead-based ferroelectric ceramics, the ultrahigh working electric field endows it a large ECE, higher than that of most reported lead-based ferroelectric ceramics. In addition, the lead-free composition provides it a promising future in solid-state cooling technology.

• Periodical: Key Engineering Materials (Volumes 512-515)
• Pages: 1304-1307
• DOI: https://doi.org/10.4028/www.scientific.net/KEM.512-515.1304
• Online since: June 2012
• Authors: Yang Bai, Kai Ding, Guang Ping Zheng, San Qiang Shi, Lie Jie Qiao, Dong Guo
• Keywords: Electrocaloric Effect, Ferroelectric Ceramics, Thick Film

References

[1] S. Lu and Q. Zhang, Electrocaloric Materials for Solid-State Refrigeration, Adv. Mater. 21 (2009) 1983-1987.

[2] P. D. Thacher, Electrocaloric effects in some ferroelectric and antiferroelectric Pb(Zr,Ti)O3 compounds, J. Appl. Phys. 39 (1968) 1996-2001

DOI: 10.1063/1.1656478

[3] S. Mischenko, Q. Zhang, J. F. Scott, R. W. Whatmore and N. D. Mathur, Giant electrocaloric effect in thin-film PbZr0.95Ti0.05O3, Science 311 (2006) 1270-1271

DOI: 10.1126/science.1123811

[4] G. Akcay, S. P. Alpay, J. V. Mantese and G. A. Rossetti Jr., Magnitude of the intrinsic electrocaloric effect in ferroelectric perovskite thin films at high electric fields, Appl. Phys. Lett. 90 (2007) 252909

DOI: 10.1063/1.2750546

[5] J. H. Qiu and Q. Jiang, Grain size effect on the electrocaloric effect of dense BaTiO3 nanoceramics, J. Appl. Phys. 105 (2009) 034110

DOI: 10.1063/1.3063811

[6] D. Guyomar, G. Sebald, B. Guiffard and L. Seveyrat, Ferroelectric electrocaloric conversion in0.75(PbMg1/3Nb2/3O3)–0.25(PbTiO3) ceramics, J. Phys. D, Appl. Phys. 39 (2006) 4491

DOI: 10.1088/0022-3727/39/20/029

[7] G. Sebald, S. Pruvost, L. Seveyrat, L. Lebrun, D. Guyomar and B. Guiffard, Electrocaloric properties of high dielectric constant ferroelectric ceramics, J. Euro. Ceram. Soc. 27 (2007) 4021-4024

DOI: 10.1016/j.jeurceramsoc.2007.02.088

[8] A. S. Mischenko, Q. Zhang, R. W. Whatmore, J. F. Scott and N. D. Mathur, Giant electrocaloric effect in the thin film relaxor ferroelectric 0.9PbMg1/3Nb2/3O3–0.1PbTiO3 near room temperature, Appl. Phys. Lett. 89 (2006) 242912

DOI: 10.1063/1.2405889

[9] T. M. Correia, J. S. Young, R. W. Whatmore, J. F. Scott, N. D. Mathur and Q. Zhang, Investigation of the electrocaloric effect in a PbMg2/3Nb1/3O3-PbTiO3 relaxor thin film, Appl. Phys. Lett. 95 (2009) 182904

DOI: 10.1063/1.3257695

[10] H. Chen, T. Ren, X. Wu, Y. Yang and L. Liu, Giant electrocaloric effect in lead-free thin film of strontium bismuth tantalite, Appl. Phys. Lett. 94 (2009) 182902

DOI: 10.1063/1.3123817
