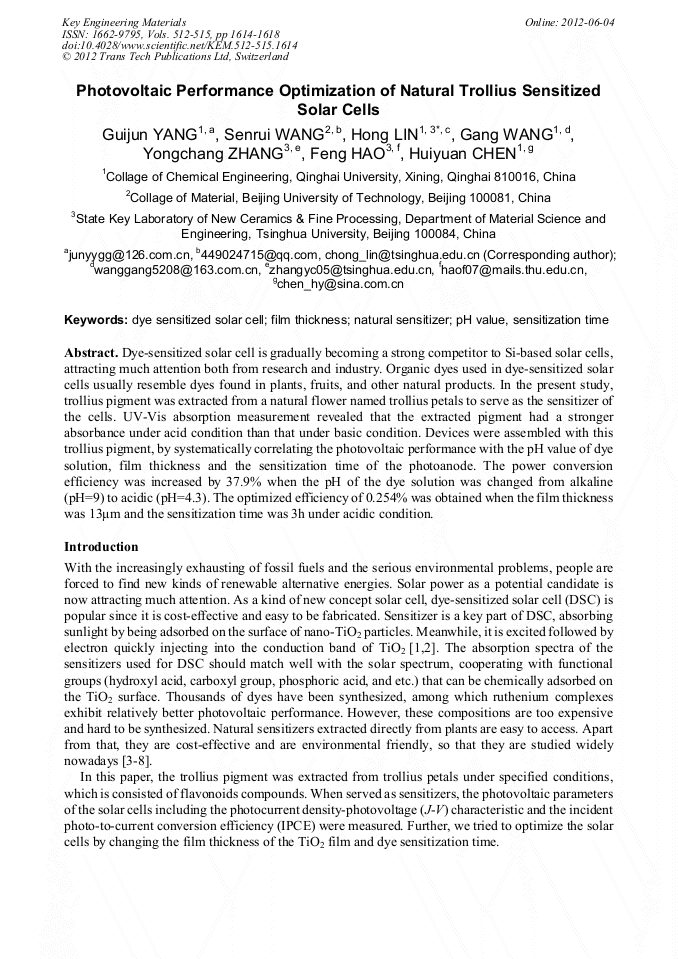

Photovoltaic Performance Optimization of Natural Trollius Sensitized Solar Cells

Abstract:

Dye-sensitized solar cell is gradually becoming a strong competitor to Si-based solar cells, attracting much attention both from research and industry. Organic dyes used in dye-sensitized solar cells usually resemble dyes found in plants, fruits, and other natural products. In the present study, trollius pigment was extracted from a natural flower named trollius petals to serve as the sensitizer of the cells. UV-Vis absorption measurement revealed that the extracted pigment had a stronger absorbance under acid condition than that under basic condition. Devices were assembled with this trollius pigment, by systematically correlating the photovoltaic performance with the pH value of dye solution, film thickness and the sensitization time of the photoanode. The power conversion efficiency was increased by 37.9% when the pH of the dye solution was changed from alkaline (pH=9) to acidic (pH=4.3). The optimized efficiency of 0.254% was obtained when the film thickness was 13μm and the sensitization time was 3h under acidic condition.

• Periodical: Key Engineering Materials (Volumes 512-515)
• Pages: 1614-1618
• DOI: https://doi.org/10.4028/www.scientific.net/KEM.512-515.1614
• Online since: June 2012
• Authors: Gui Jun Yang, Sen Rui Wang, Hong Lin, Gang Wang, Yong Chang Zhang, Feng Hao, Hui Yuan Chen
• Keywords: Dye Sensitized Solar Cell (DSSC), Film Thickness, Natural Sensitizer, pH Value, Sensitization Time

References

[1] B O Regan, M Gratzel. A low-cost, high-efficiency solar cell based on dye-sensitized colloidal TiO2 films, Lett Nature, 1991, 353-737

DOI: 10.1038/353737a0

[2] F T Kong, S Y Dai, Progress of the Dye-sensitized Solar Cells, Progress in Chemistry, 18 (2006) 1490-1424

[3] G Calogero, G Di Marco, S Caramori, et al, Natural dye senstizers for photoelectrochemical cells, Energy ＆ Environmental Science

DOI: 10.1039/b913248c

[4] A Kay, M Gratzel. Artificial Photosynthesis. 1. Photosensitization of TiO2 Solar Cells with Chlorophyll Derivatives and Related Natural Porphyrins, J. Phys. Chem. 97 (1993) 6272-6277

DOI: 10.1021/j100125a029

[5] A.O.T. Patrocinio, S.K. Mizoguchi, L.G. Paterno, et al. Efficient and low cost devices for solar energy conversion: Efficiency and stability of some natural-dye-sensitized solar cells, Synthetic Metals, 159 (2009) 2342-2344

DOI: 10.1016/j.synthmet.2009.08.027

[6] X F Wang, C H Zhan, T Maoka, et al, Fabrication of dye-sensitized solar cells using chlorophylls c1 and c2 and their oxidized forms c'1 and c'2 from Undaria pinnatifida (Wakame) , Chemical physics letters, 447 (2007) 79-85

DOI: 10.1016/j.cplett.2007.08.097

[7] Frank G. Gao, Allen J. Bard, Lowell D.Kispert. Photocurrent generated on a carotenoid-sensitized TiO2 nanocrystalline mesoporous electrode , Journal of Photochemistry and Photobiology, 130 (2000) 49-56

DOI: 10.1016/s1010-6030(99)00193-8

[8] C Sandquist, J L. Mchale, Improved efficiency of betanin-based dye-sensitized solar cells, Journal of Photochemistry and Photobiology A: Chemistry 221 (2011) 90-97

DOI: 10.1016/j.jphotochem.2011.04.030

[9] S C Hao,Natural pigment sensitization TiO2 porous film solar cells. Huaqiao University, (2004)

[10] S C Hao, J H Wu, Y F Huang, J M Lin. Natural dyes as photosensitizers for dye-sensitized solar cell. Solar Energy. (80)2006,209-214

DOI: 10.1016/j.solener.2005.05.009

[11] H Z Zhou, Studies of dye-sensitized solar cells based on natural dyes,Dalian University of Technology. (2010)

[12] P Zou, The natural pigment of TiO2 porous film sensitization of preparation and photoelectric properties. Huvei University of Technolgy. (2008)

[13] P H Luo, Studies of natural dyes-sensitized solar cells, Heilongjiang University, (2010)

[14] X C Zhao, P Yang, H Lin, et al, Optimization of Fabrication Parameters of Flexible Dye-Sensitized Solar Cells, Journal of The Chinese Ceramic Society, 38 (2010) 25-28
